10
4 Use
a
medium
Phillips
screwdriver
to
loosen
the
thumbscrews
at
the
ends
of
the
fan
array
and
lift
the
array
out.
Now
you’re
ready
to
install
the
replacement
fan
array.
To
install
the
fan
array:
1 Align
the
power
connector
on
the
array
with
its
counterpart
on
the
power
distribution
board
and
lower
the
array
into
the
chassis.
Be
sure
the
power
connector
is
fully
seated.
2 Tighten
the
screws
at
the
ends
of
the
array.
Make
sure
the
large
front
panel
cable
runs
above
the
power
connector
but
below
the
tab
on
the
top
of
the
power
supply.

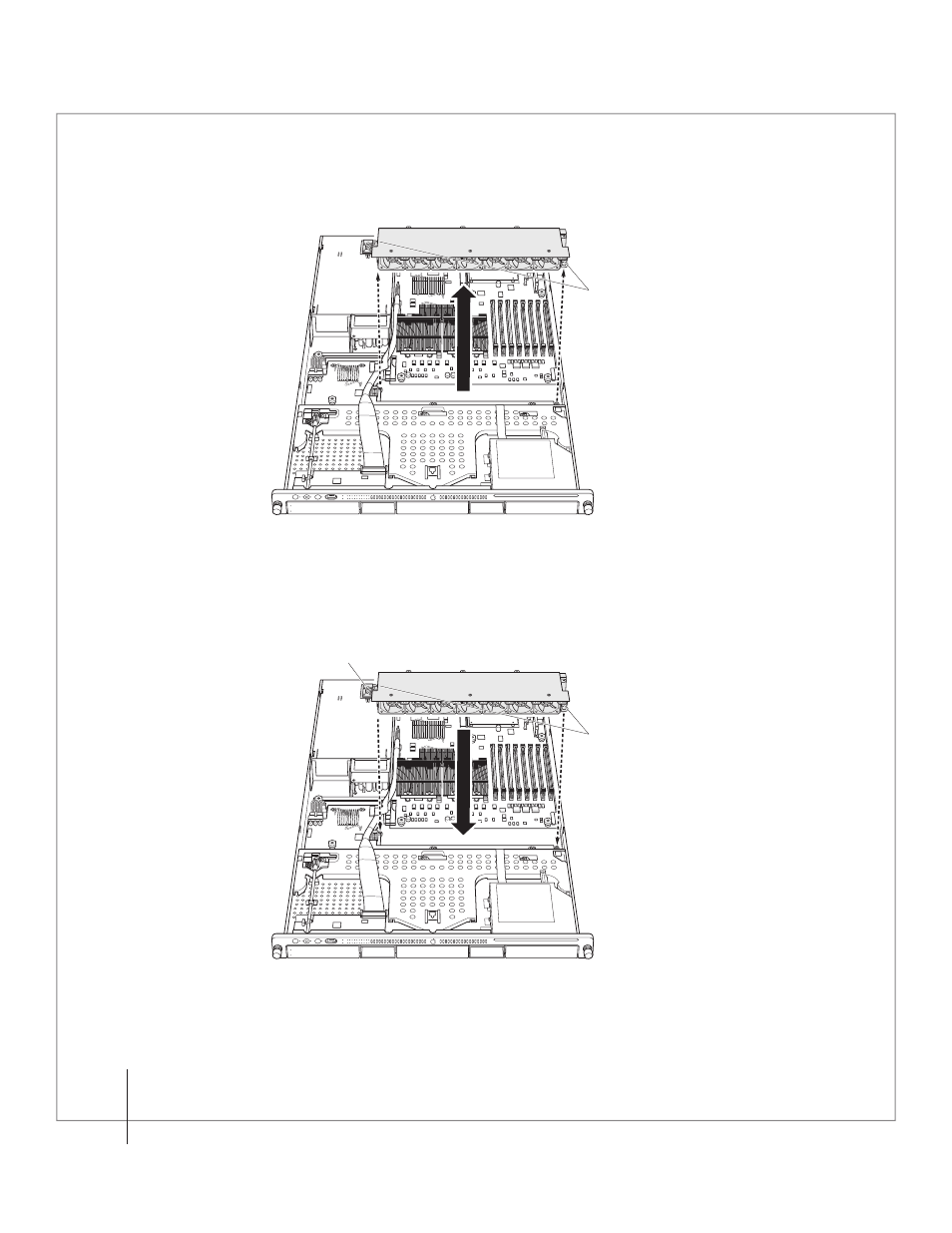

Use a screwdriver to loosen
the two thumbscrews
and lift the fan array out.
Install the fan array,
and tighten the two
thumbscrews with a
screwdriver.
Power connector
