Page 5
Voltage cc/min gal/hr
0.50 0 0.00
0.75 63 0.99
1.00 125 1.98
1.25 188 2.97
1.50 250 3.96
1.75 313 4.95
2.00 375 5.94
2.25 438 6.93
2.50 500 7.93
2.75 563 8.92
3.00 625 9.91
3.25 688 10.90
3.50 750 11.89
3.75 813 12.88
4.00 875 13.87
4.25 938 14.86
4.50 1000 15.85
4.65 1250 19.81
4.85 2000 31.70
Connector Pinouts
The pinouts for the 3-pin sensor harness and 8-pin power harness are provided below
in Figure 6.

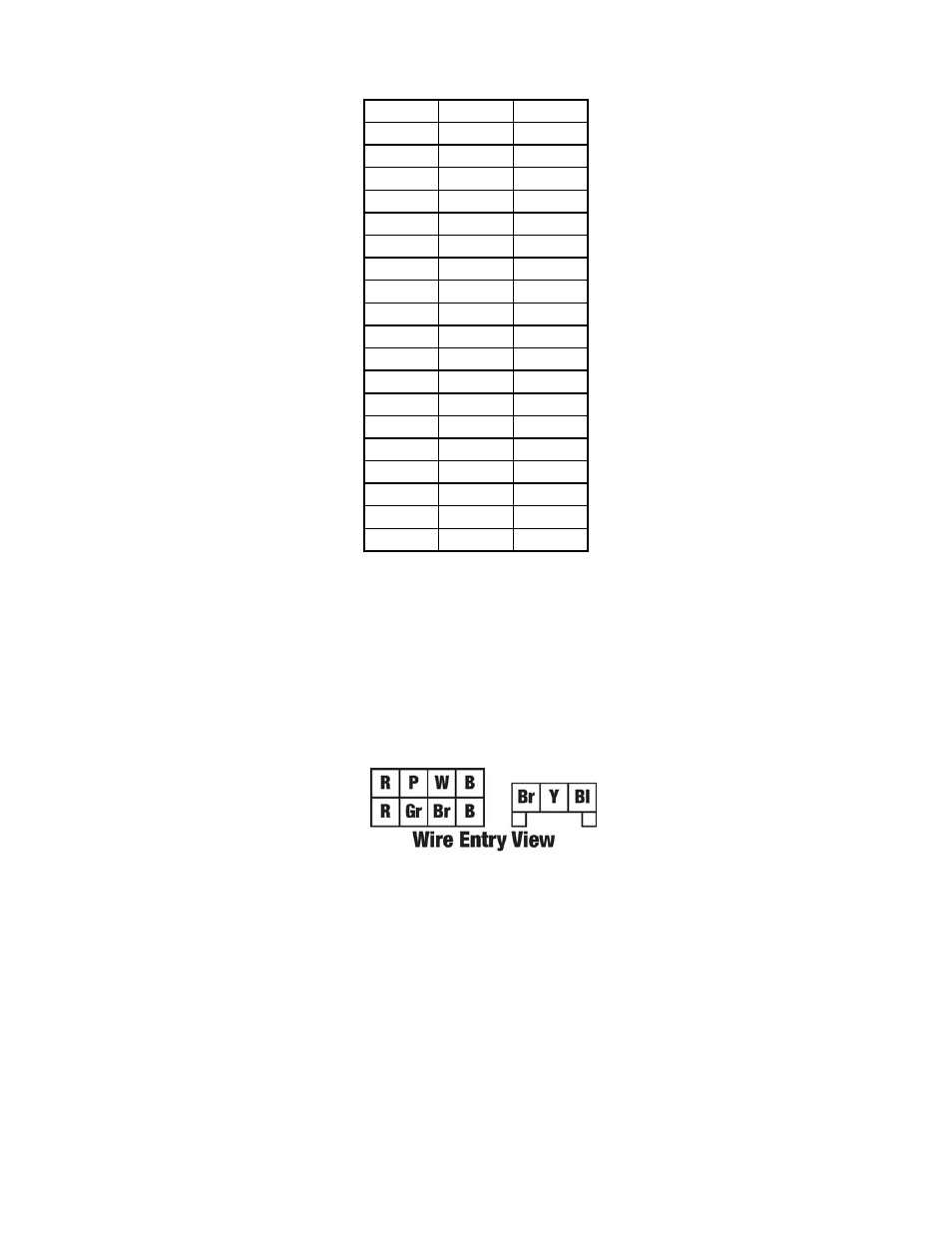

Figure 6. Harness Pinouts
Table 1. Analog Calibrations
