Changing the Bezel
The AEM Water/Injection Flow Gauge comes with the black bezel installed. However, a
silver bezel is also included in the gauge kit. To change the bezel, orient the gauge so
you are looking at the faceplate. Rotate the bezel counter-clockwise to unscrew it from
the gauge cup. The bezel, lens, and rubber spacer are all removable. Reassemble the
gauge as shown below in Figure 3. Note: When reassembling the gauge, it may be
necessary to apply a light amount of pressure on the lens and spacer to keep the
faceplate from rotating when reinstalling the bezel. Do not over tighten the bezel
when reassembling the gauge.
Backlighting
The AEM Water/Methanol Injection Flow Gauge has 7 different backlight colors
available to the end user, which closely match some of the more common factory dash
panels: white, blue, green, red, orange, light blue, and aqua. To change the backlight
color, rotate the backlighting switch using a small precision style screwdriver. The
backlight switch is accessed through the small hole in the back of the gauge.

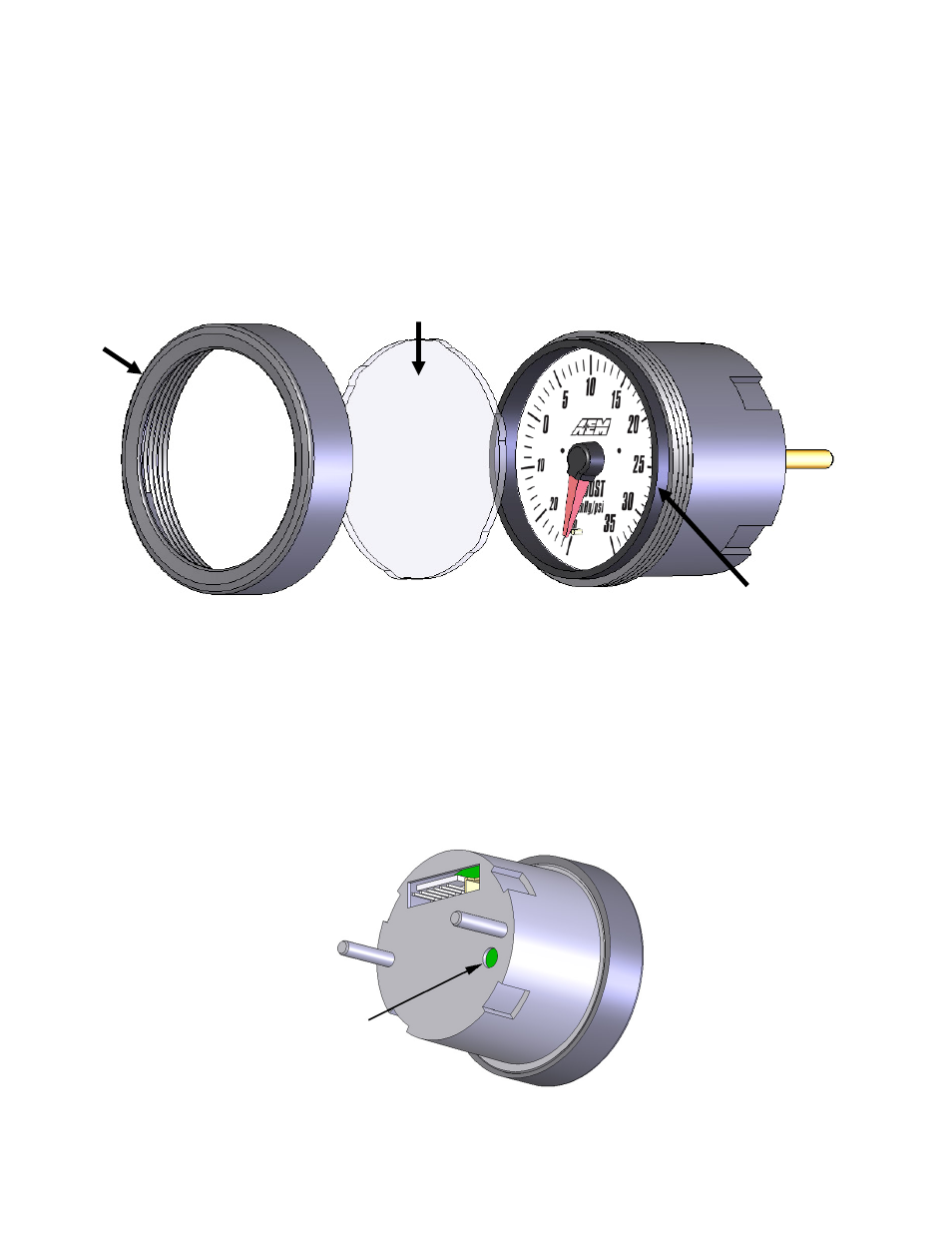

Figure 3. Changing Bezels
Figure 4. Backlighting Adjustment
ACCESS
PORT
BEZEL
LENS
RUBBER
SPACER
