AEM 30-4110 Digital Wideband UEGO Gauge User Manual
Page 5
Page 5

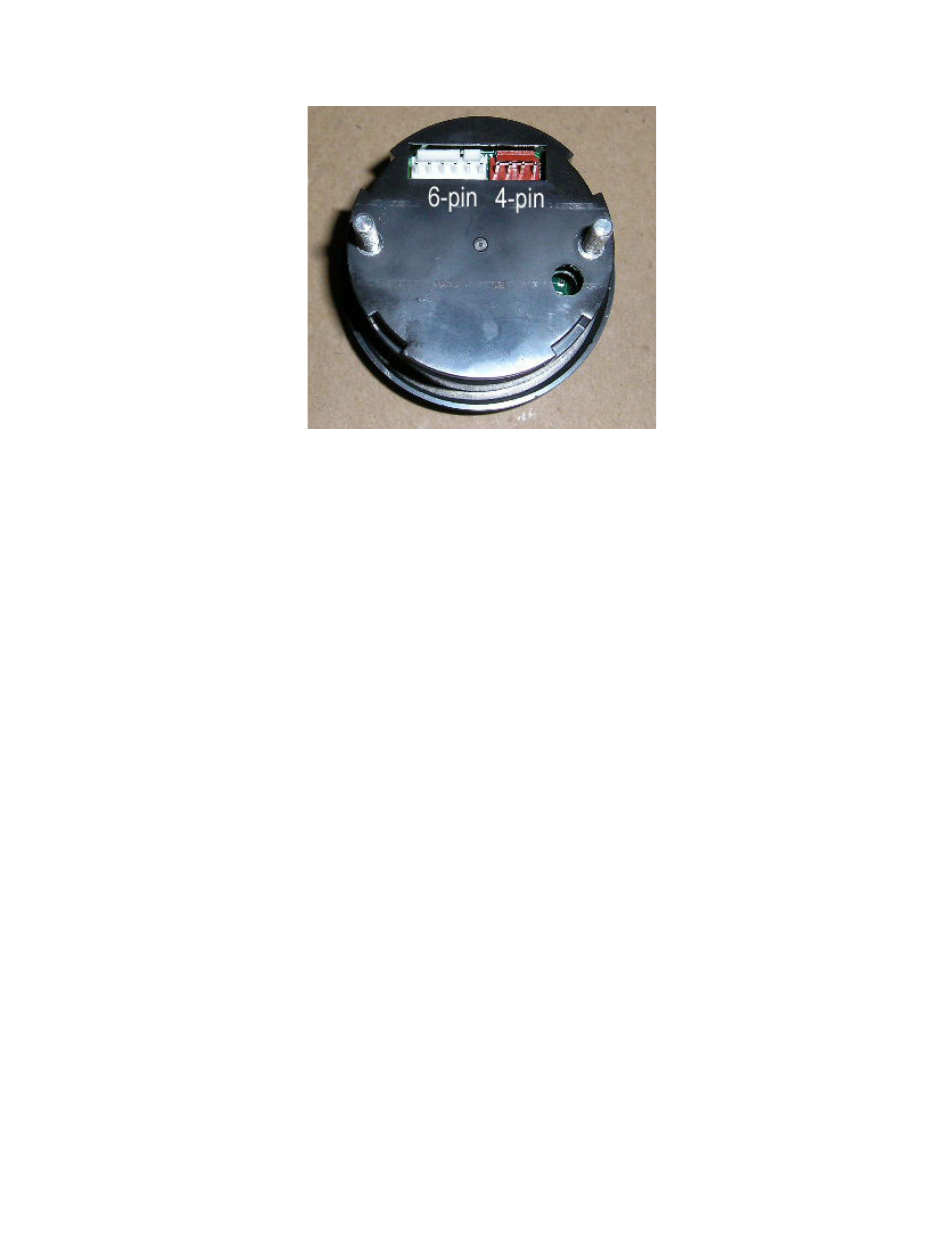

Figure 4. Gauge Side Harness Connections
RED
Connect to a switched 10-18 volt power source utilizing a 10A fuse.
BLACK
Connect to a clean power ground.
*WHITE
Connects to any auxiliary unit that accepts a 0-5 volt input.
*BLUE
Connects to a RS-232 com port for hyper-terminal data logging.
*optional
