AEM 30-3436 Series 2 AEMnet Adapter User Manual
Page 6
Page 6

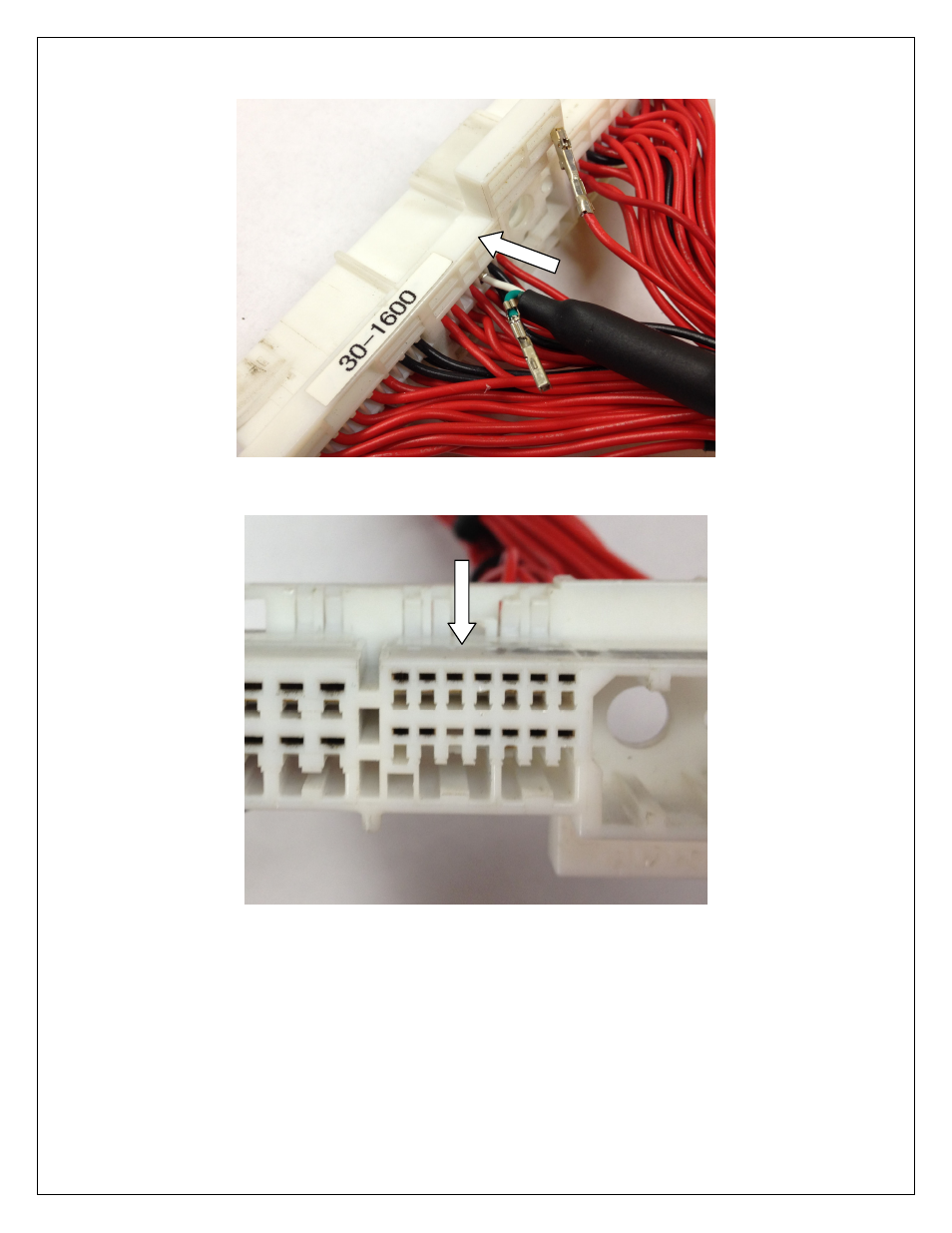

5. To install the harness into the ECU plug, align the CANL and CANH pins into the
receptacle of the plug and push in until it clicks as shown in figure 9:
Figure 9: Pushing pin into ECU plug
6. Push the pin lock back into place until it is flush with the ECU plug as shown in figure 10:
Figure 10: Ensure pin lock is relocked
