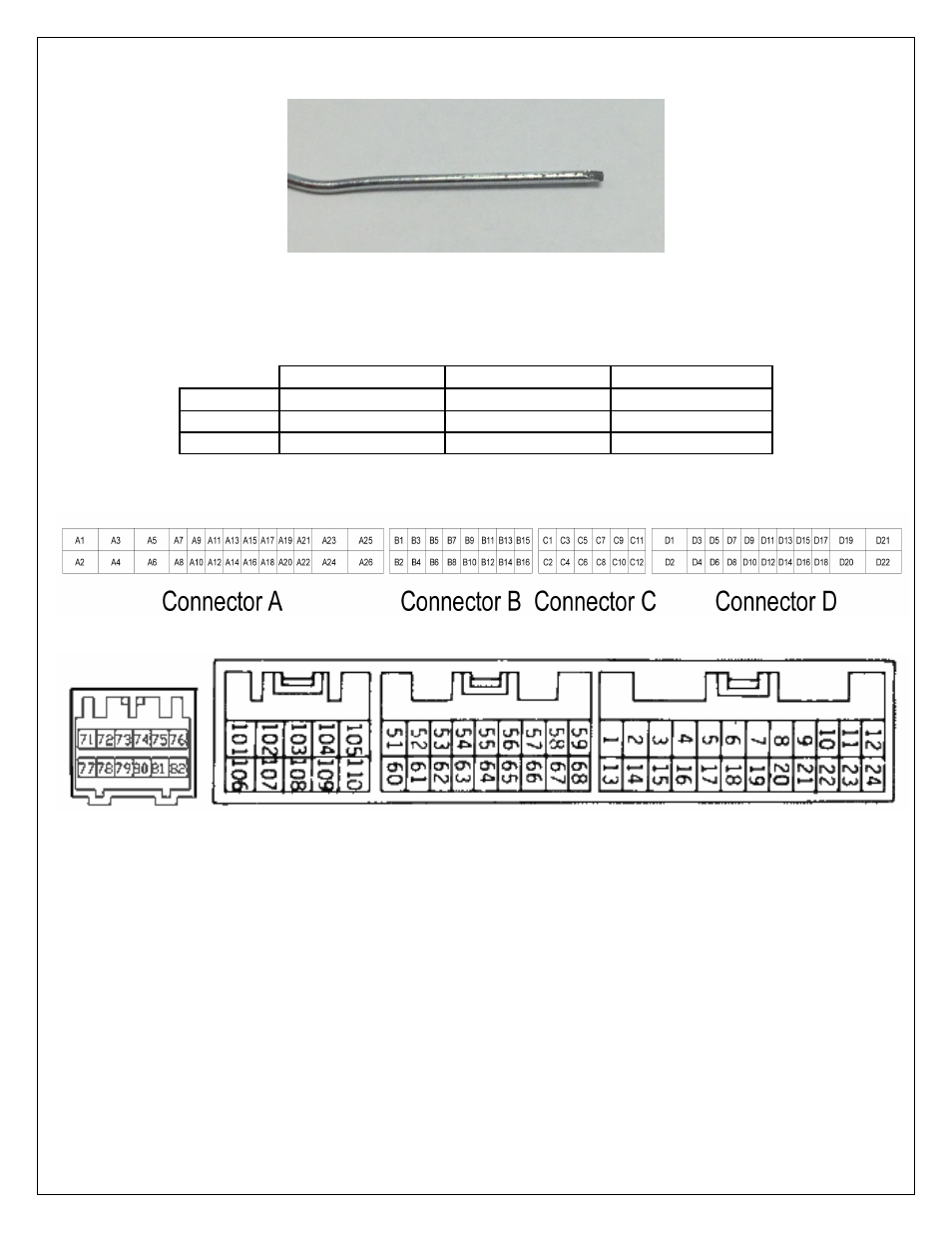

3. If the screwdriver does not fit in the area of the plug, a ground paper clip can be used to

release the tabs of the plug as shown in figure 6.

Figure 6: Grind a paper clip like this

INSTALL AEMnet ADAPTER HARNESS

4. Table 2 below lists the corresponding CAN1L and CAN1H pin locations for each Series 2

EMS.

CAN1L (Green wire)

CAN1H (White wire)

EMS

Adapter p/n

LOCATION

LOCATION

30-6040

30-3431

A22

C2

30-6300

30-3434

75

13

Table 2: CAN1L and CAN1H pin locations

Figures 7 and 8 below show the connectors for each Series 2 EMS.

Figure 7: Wire-side view of pinout for 6040 EMS

Figure 8: Wire-side view of pinout for 6300 EMS
