Rock-Slide Engineering RAPTOR – STEP SLIDER - Manual (Page 9)

Installation Instruction RSEI 119
10. Returning to the backseat, complete the driver’s side. Run the actuator wires from the
step slider through the floor of the vehicle and plug into the wiring harness. Plug into
the red/black connector into the wiring harness.
a. Secure wires to minimize slack so they are protected. We recommend zip ties
b. *Optional: The brown/tan wire is used if LED light package is being installed
11. Route the rear driver’s side door sensor wire along the doorframe; and using a sticky
pad, mount the sensor underneath the door latch
a. Connect the orange/pink wire to the door sensor
b. Place a small piece of electrical tape on the sensor wire to secure
12. Continue to route the harness wires along the door sill and just like performed on the
passenger side route the door sensor wire up the doorframe and using another sticky
pad, mount the sensor below the door hatch.
a. Connect the orange/yellow wire to the door sensor
b. Place a small piece of electrical tape on the sensor wire to secure
13. Drill an 18 mm hole to mount the cutoff switch. We recommend next to the emergency

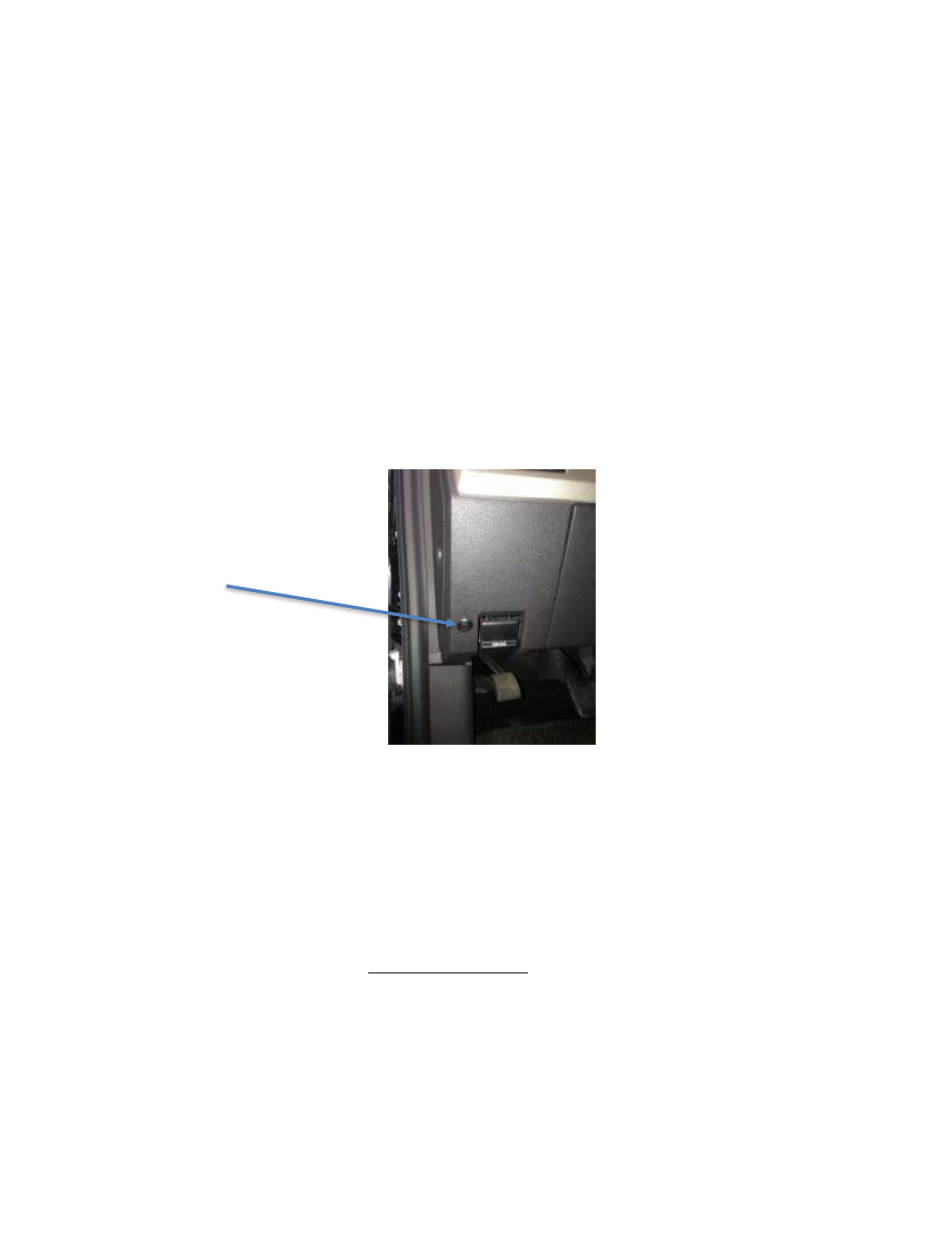

break release (see picture below).
14. Mount the ground from the cutoff switch to a metal surface behind dash panel
15. Route the cutoff switch wires by running the POS+ and NEG- wires from the wiring
harness plug them into the back of the cutoff switch
THE BRASS COLORED PRONG IS FOR THE GROUND THE SILVER COLORED IS FOR THE POWER
16. Route the remaining POS+ and NEG- wires through the firewall on the driver’s side into
the engine compartment. YOU MAY NEED TO DRILL A HOLE THROUGH THE FIREWALL
INTO ENGINE COMPARTMENT
a. Make sure there is NO INTERFERENCE with any of the pedal linkage under the
dash
