Installation Instruction RSEI 119
Step Slider Wiring Diagram
Driver Side Wire Color Passenger Side Wire Color
Front Door Sensor Orange/Yellow Front Door Sensor Green/Gray
Rear Door Sensor Orange/Pink Door Sensor Blue/White
Driver LED Light Brown/Tan Passenger LED Light Pink/Tan
Driver Actuator Red/Black Passenger Actuator Red/Black
**WARNING**
REMOVE FUSE FROM WIRING HARNESS PRIOR TO INSTALLATION! CONNECTING
THE HARNESS TO THE POWER SOURCE WITH THE FUSE ATTACHED MAY SHORT
OUT THE WIRING HARNESS.
NEVER ALLOW THE DOOR SENSOR TO COME INTO DIRECT CONTACT WITH THE
ACTUATING MAGNET. THIS WILL DESTROY THE SENSOR MAKING IT UNUSABLE.

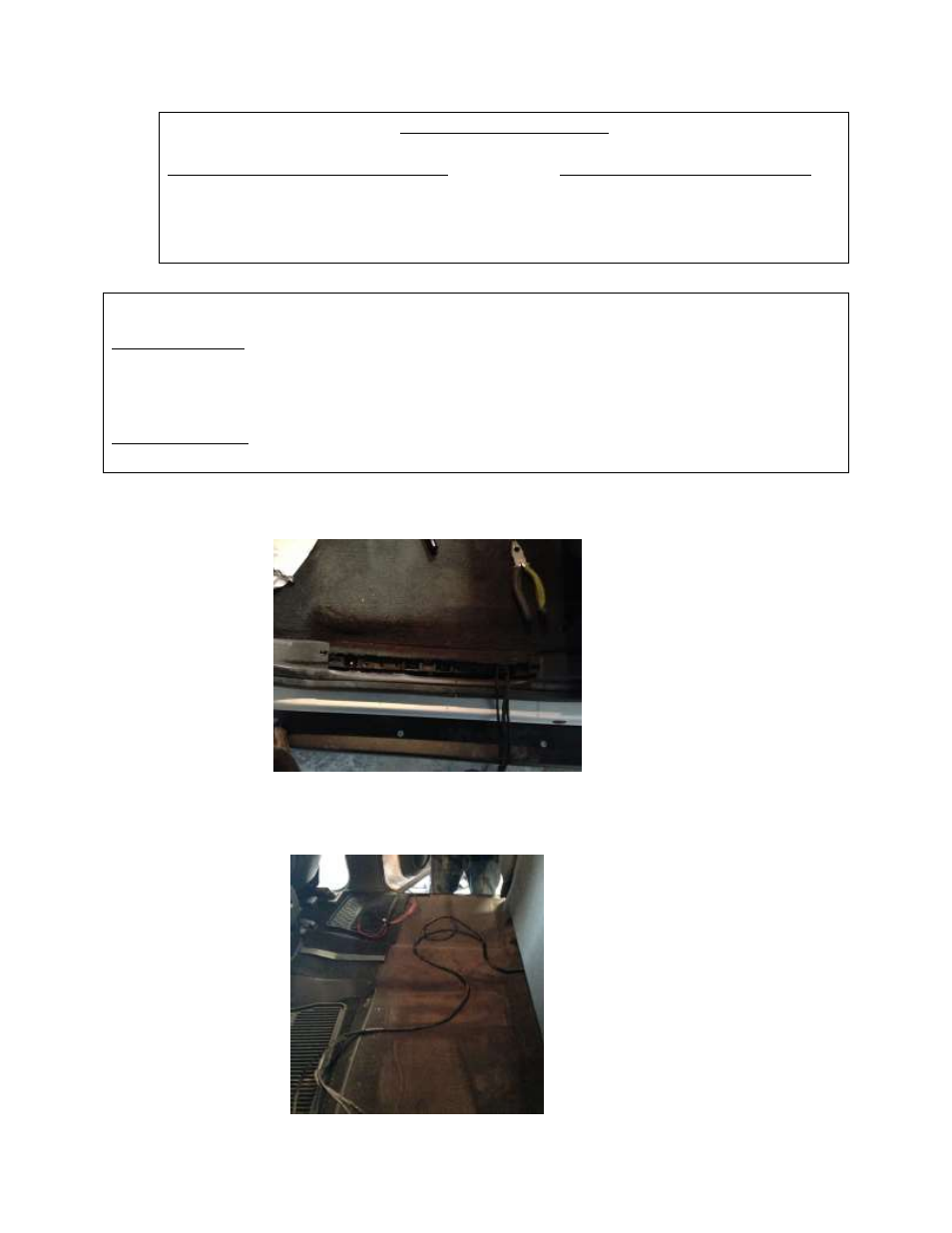

1. Remove the sill plate covers on both driver and passenger rear doors
2. Lay out the wiring harness on the carpet in the back seat
3. Split the harness into the driver’s and passenger side as instructed above.
