Rock-Slide Engineering RAPTOR – STEP SLIDER User Manual
Page 10
Installation Instruction RSEI 119

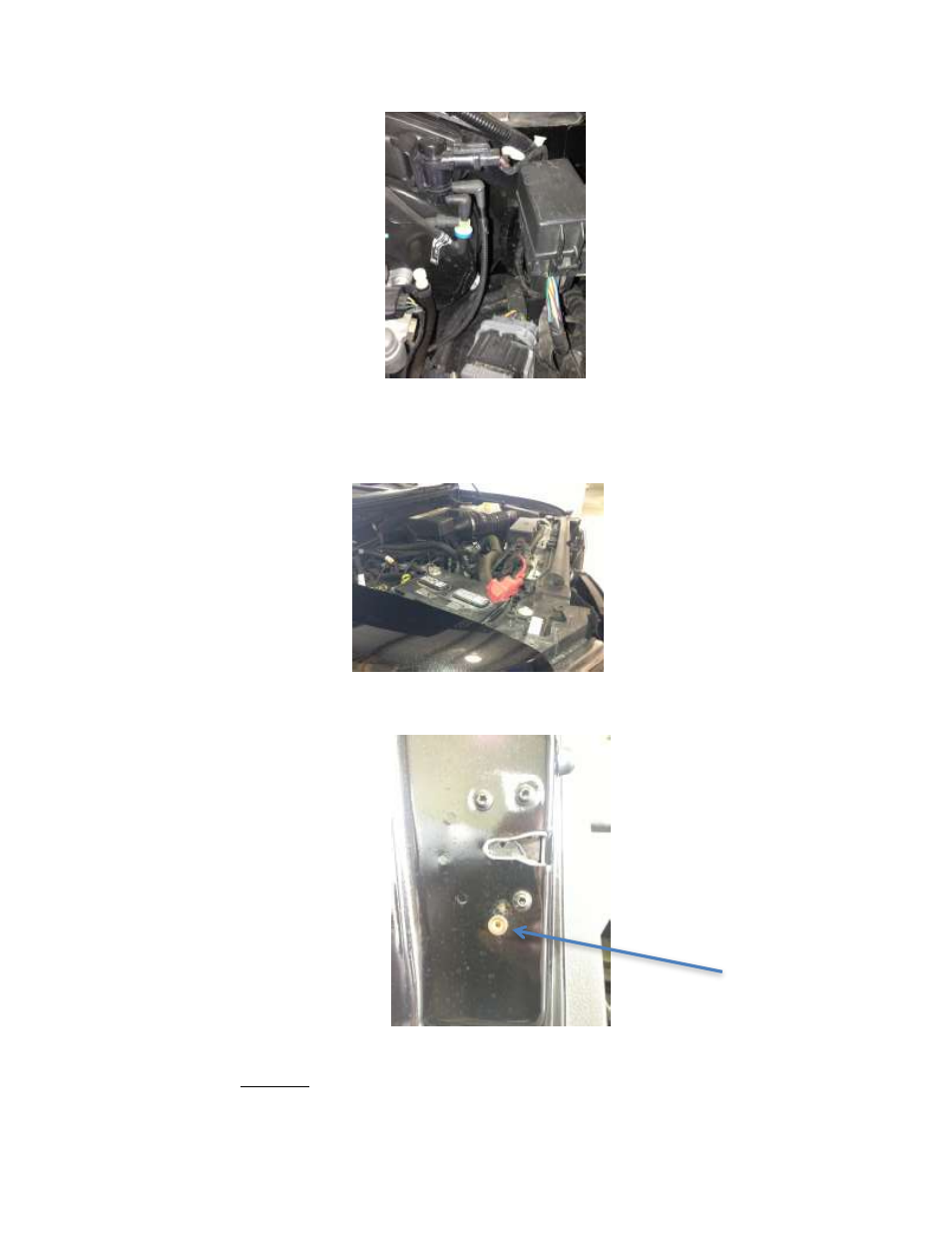

17. Route these wires along the firewall up to the battery compartment
a. Secure the wires using the harness attached to the firewall
18. Attach the NEG- to the NEG- side of the battery
19. Attach the POS+ to the POS+ side of the battery
20. Position the actuating magnets on the catch side of each door
a. Make sure the actuating magnets are in perfect line with the sensors
b. **DO NOT allow the magnet and sensor to come into direct contact. This
will destroy the sensor making it unusable**
