OVERVIEW
Welcome to PureFlow
®
AirDog
®
Fuel Air Separation, Filtration and Delivery System for the Diesel Engine
The AirDog
®
Fuel Air Separation system is a Premium lift pump and filtration
system for the Ford PowerStroke 6.4L diesel engine. A complete installation kit is
included.
The AirDog
®
delivers clean fuel to the engine free of virtually all air/vapor and at
a positive flow. Thus, allowing the engine “test cell” performance and efficiency,
while in “real world” use.
The AirDog
®
FP-100 flows 100 GPH and is recommended for stock and slightly
modified PowerStroke Diesels.
The AirDog
®
FP-150 is recommended for highly modified PowerStroke Diesels.
PureFlow products are manufactured with a personal touch,
unsurpassed attention to detail
and
the most stringent quality control!

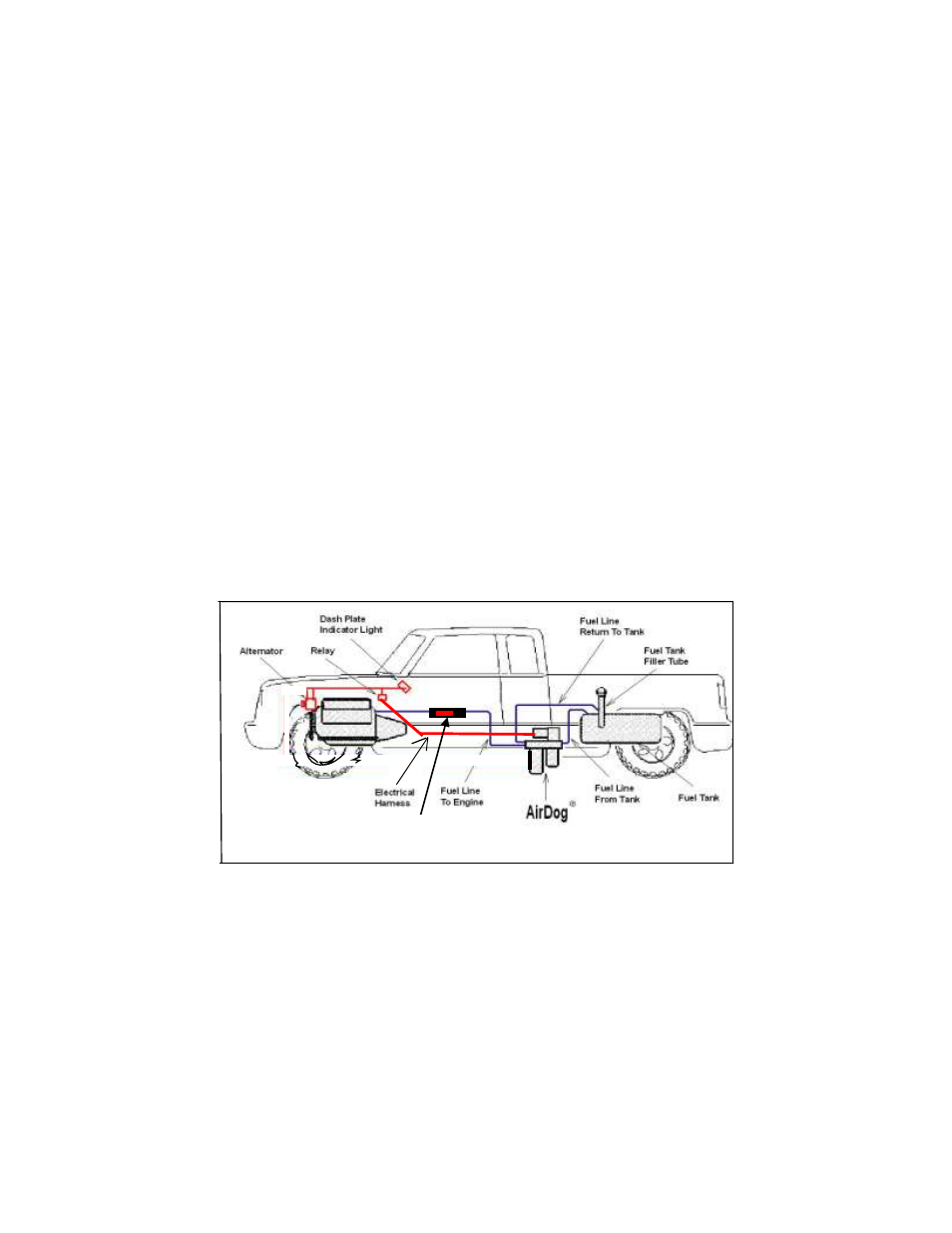

TYPICAL INSTALLATION LAYOUT
Figure 1
The AirDog
®
draws fuel from the fuel tank at a constant flow, removing water, particulates, and
air/vapor while maintaining a regulated pressurized fuel flow to the stock OE high pressure
pump. The air/vapor separated from the fuel by the AirDog
®
is returned to the fuel tank.
NOTE: The pictures used in this manual are for example only and may not be exactly the same
as your truck.
High Pressure
Fuel Pump
