FP-100 & FP-150 Ford PowerStroke 2008 6.4L

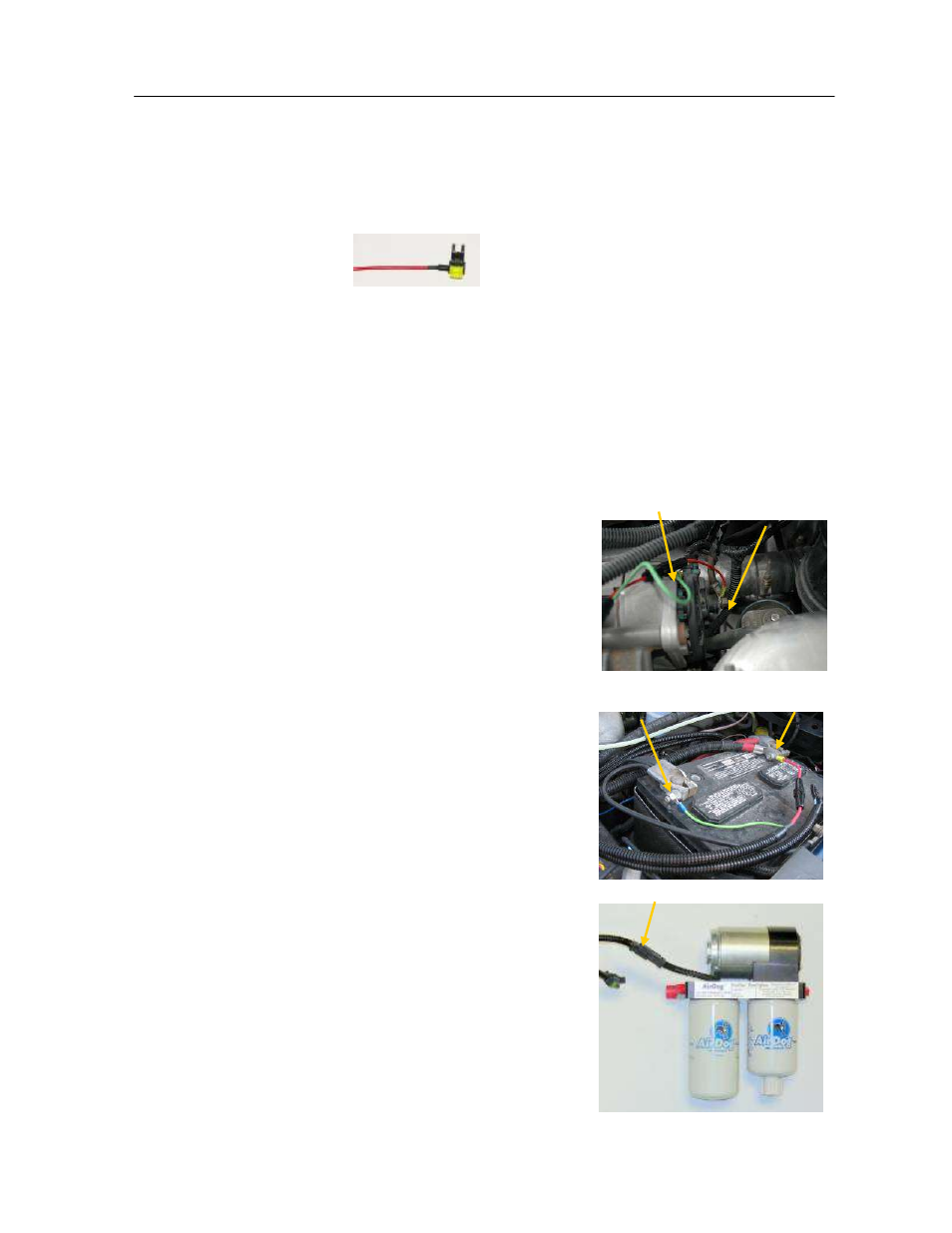

Section 6 Electrical Harness
Connecting the AirDog
®
Relay Control Lead
Figure 42
6-3. Route the AirDog® 'Relay activation lead', the Red (+) wire with the mini fuse tap
attached, to the OE fuel pump. Remove the mini fuse tap and splice the relay lead to the
OE fuel pump lead.
NOTE: The power supply leads can be connected to the battery or the alternator. Connecting
the power supply leads to the alternator instead of the battery will create a corrosion free
connection.
Black (-) Red (+)
6-4. Route the power supply leads to the alternator.
Connect the Black (-) lead to the alternator
Ground connection.
Connect the Red (+) lead to the alternator Hot
Lead going to the battery.
Figure 43
OR
6-5. Should you choose to connect the power
supply leads directly to the battery, connect
the RED (+) lead to the POSITIVE (+) post
of the driver's side battery. Connect the
BLACK (-) lead to the NEGATIVE (-) post
of the same battery.
Figure 44
6-6.
Route the wiring harness to the AirDog
®
and connect the 2 pin Deutsch connector
to the corresponding connector on
the AirDog
®
.
Figure 45
