Section 9 AirDog® Fuel Pump

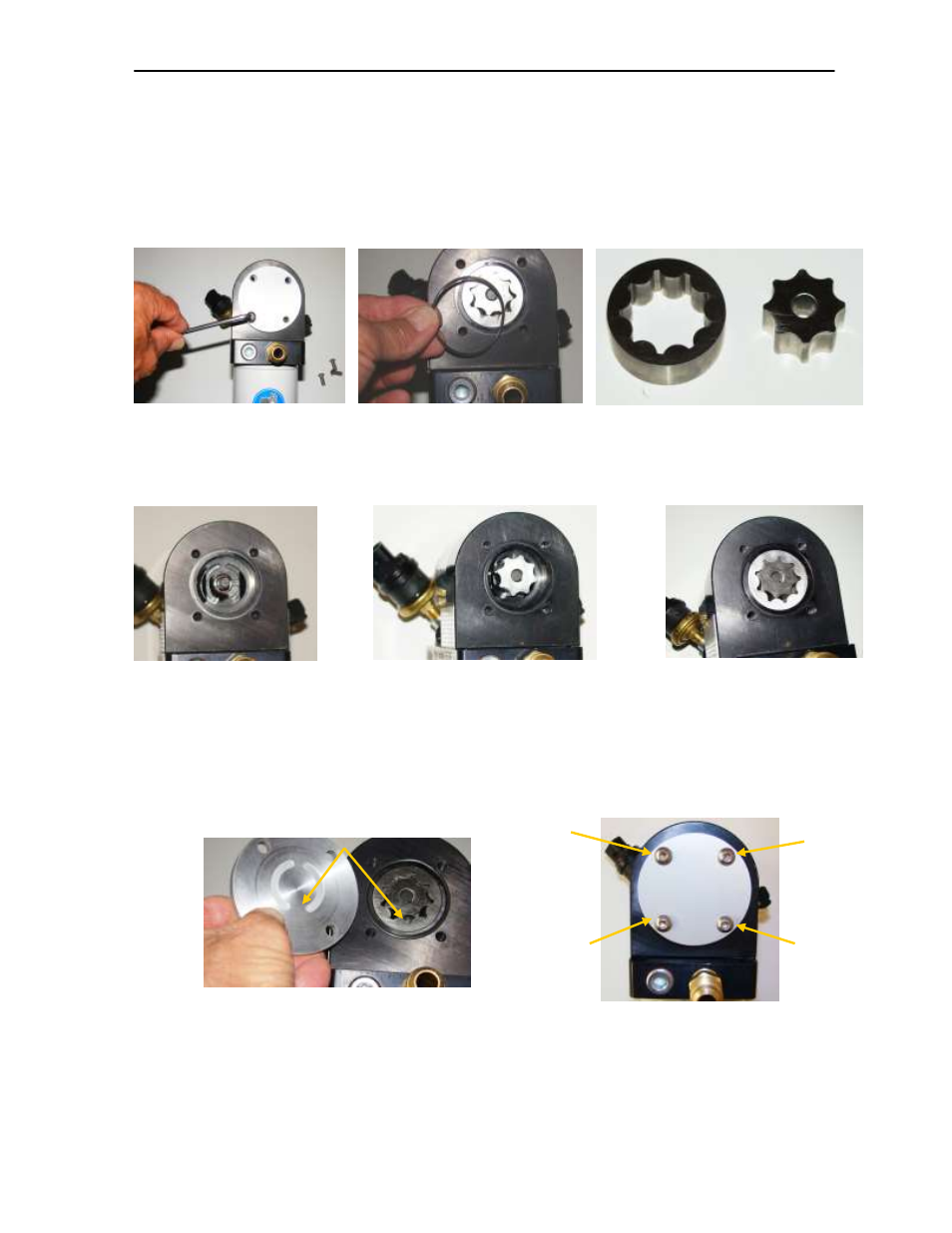

Cleaning Foreign Debris from the Gearotor Assembly
Step 1 Step 2 Step 3
Remove the four (4) button Carefully remove the O’ring, Remove and clean the gearotor.
head cap crews that secure you will need to re-use it.
Be very careful not to damage
the gearotor cap. the gearotor.
Step 4
Step 5 Step 6
Clean the inside of the Replace the O’ring and Align the teeth and
gearotor pocket. center gear. install the outer gear.
Step 7 Step 8
Install the gearotor cap. Be very Replace the cap into
careful to index the cap to position position. Be very careful,
the wide space between the half do not pinch the O’ring.
moon cuts to the bottom. Torque the cap screws.
in an opposing pattern.
1 4
3 2
