18
AirDog
®
FP-100 & FP-150 Ford PowerStroke 2008 6.4L

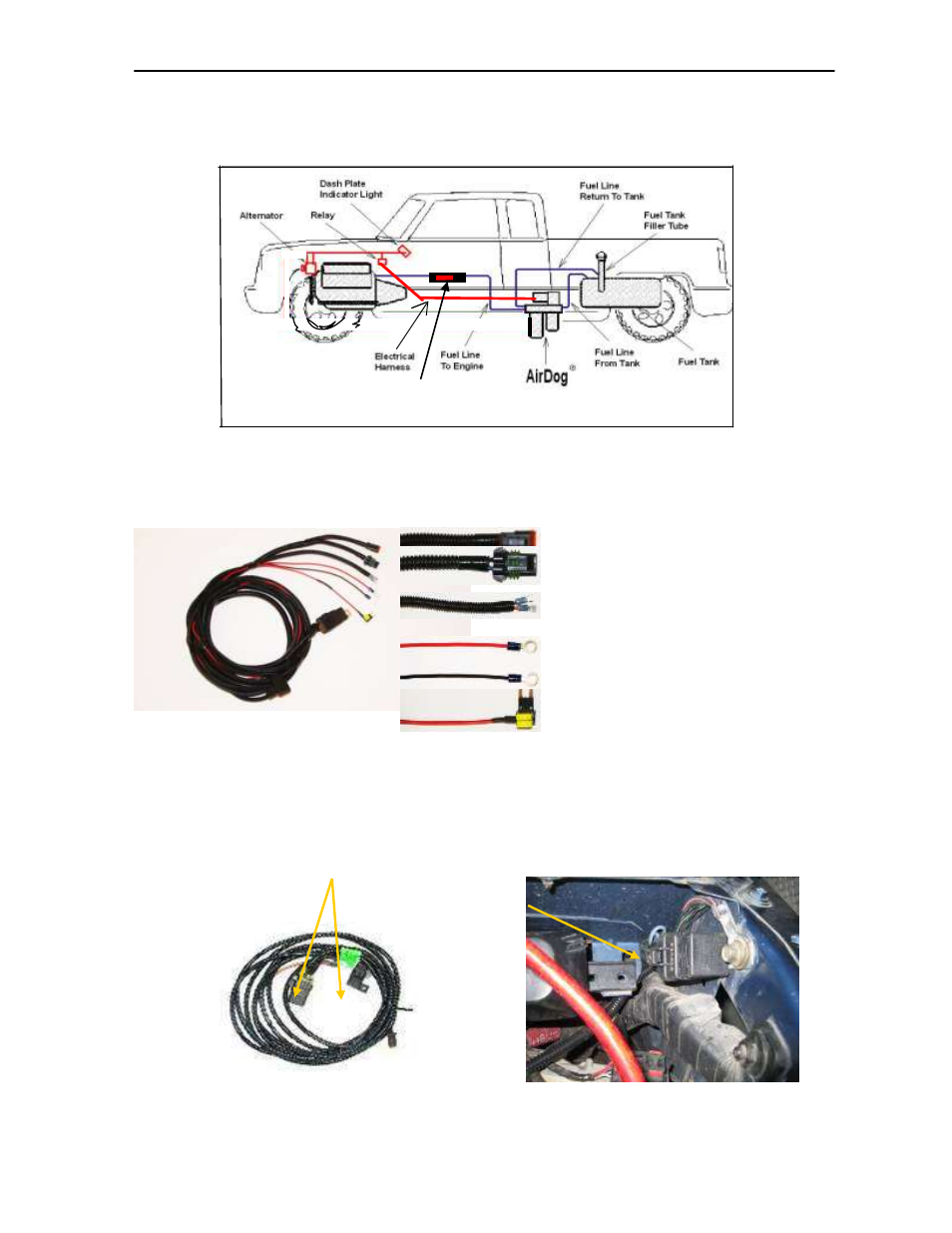

Section 6 Electrical Harness
The AirDog
®
is equipped with a relay controlled wiring harness.
WIRING DIAGRAM (In Red)
Figure 39
The AirDog
®
wiring harness.
AirDog® Pump Motor Lead
Pressure Sensor/Switch Lead
Indicator Light Lead
Battery Positive Lead
Battery Negative Lead
Mini Fuse Tap Relay Lead
Figure 43
CAUTION: If the OPTIONAL Low Pressure Indicator Light is not used, be sure to insulate
the two (2) #10 Indicator Light connectors to prevent accidental contact.
Securing the Relay and Fuse Holder to the Vehicle
6-1. Secure the relay and fuse holder to the vehicle.
Figure 40 Figure 41
High Pressure
Fuel Pump
