13
AirDog
®
FP-100 & FP-150 Ford PowerStroke 2008 6.4L
Section 5-C Fuel Lines
Section 5-C: Fuel Suction Line for AirDog
®
FP-100.
NOTE: The AirDog
®
FP-150 requires a High Flow Suction Tube. If you are installing an
AirDog
®
FP-150 skip Section 5-C and go to section 5D.

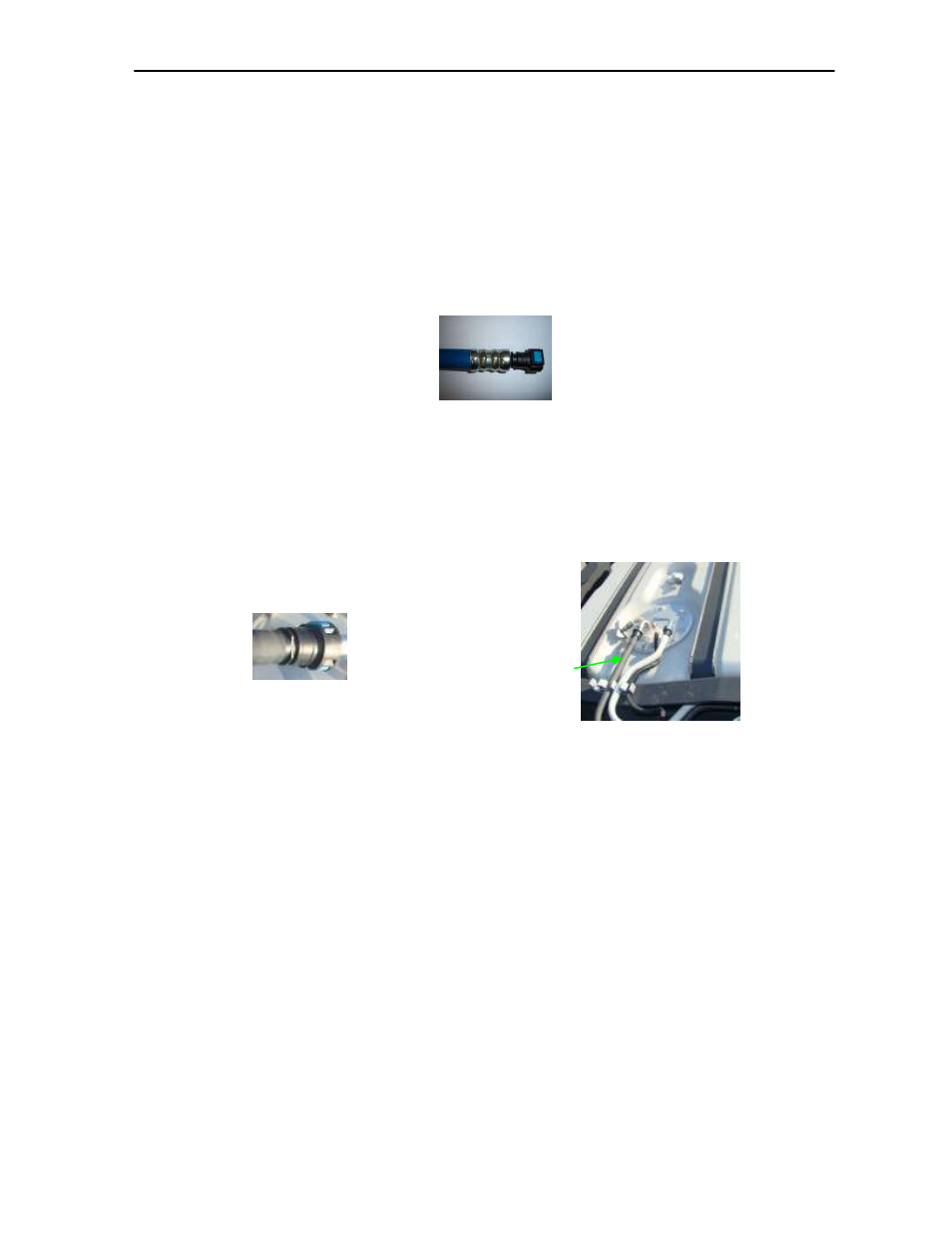

5C-1. Insert the female quick connect end (see figure 21) of the “Suction Hose Assembly” to
the male fitting installed in the “Fuel In” port during step 4-3 of this manual. A “click”
will be heard when the fitting is properly connected.
Figure 21
5C-2. Remove the original fuel suction line Quick Connect fitting from fuel tank by squeezing
the tabs on the end of the connector together. Do Not mistake the return line with the
suction line. Consult your factory manual if unsure of these procedures.
Figure 23
Figure 22
Suction Line
In More Detail
To release the quick-connect fitting from the fuel tank suction tube, push the fitting toward the
suction tube. With the plastic tabs firmly depressed, pull the fitting assembly from the suction
tube. Hold the Quick Connect Fitting square to the suction tube. It may be difficult to
disconnect the fitting it is cocked or becomes cocked during removal.
5C-3. Attach the other end of the “Suction Hose Assembly” to the male quick connect on the
top of the fuel module where the factory suction line was once located. A “click will be
heard when the assembly is properly connected. (Figure 23)
5C-4. Any excess fuel hose can be addressed by routing the hose in a fashion to take up
the extra length, or a section of the hose can be removed. Push lock splices have
been included if you choose to remove the excess hose.
