PureFlow AirDog Dodge In-Tank Modification Kit User Manual
Page 8

8

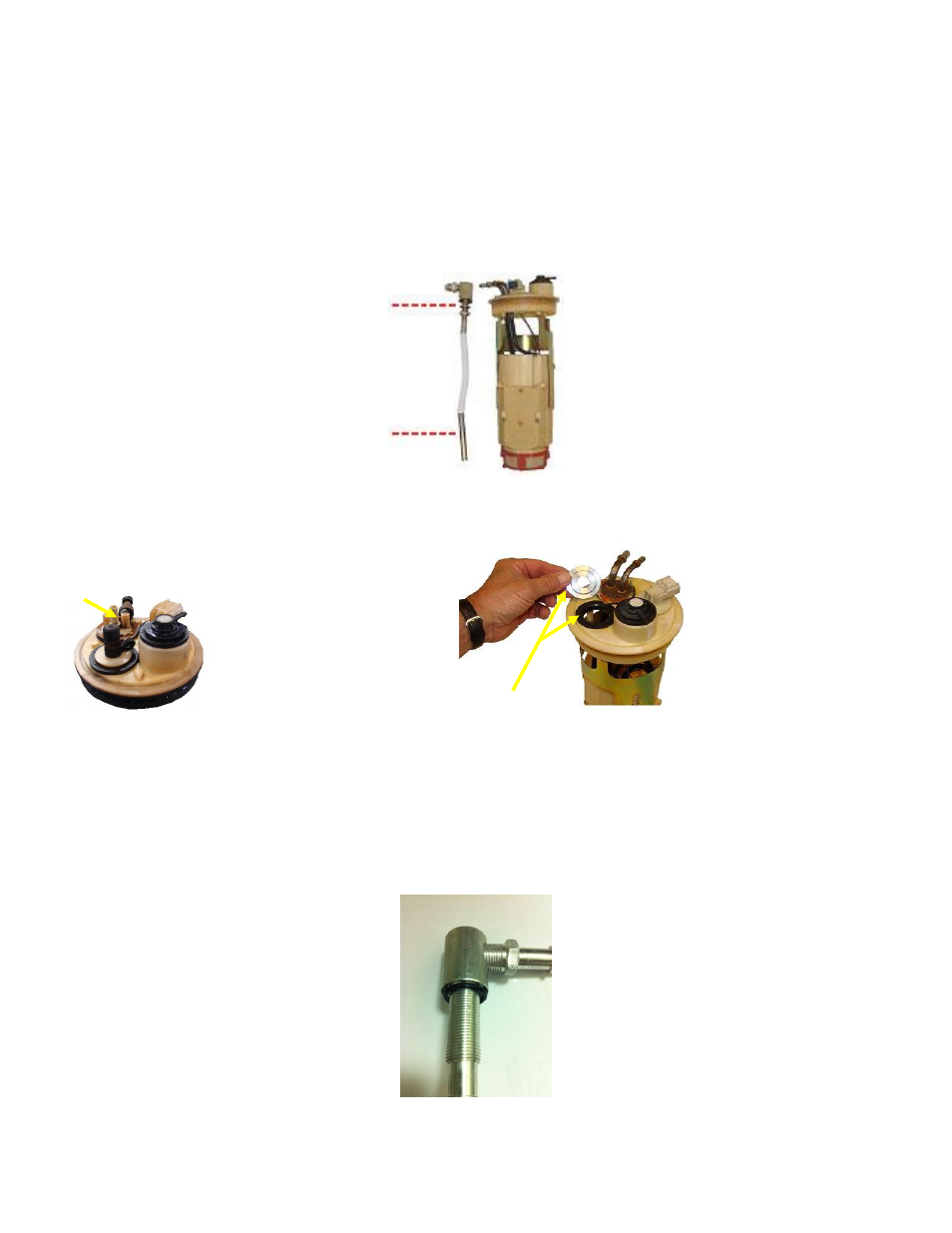

Step 3. Assemble the Pickup Tube as shown. Hold the assembly Next to the fuel module. Adjust the
length of the pickup tube so that it is slightly longer than the module. When the pickup tube is
installed, the two wire clamp and bracket will hold suction tube against the bottom of the fuel module
collection basket.
Step4. Remove the unused tube assembly and install the bulkhead fitting using the special grommet
adapter
.
Figure 5
Figure 6
Step 5. With the length of the tube assembly set, remove the flex tube from the bulkhead fitting.
Insert the bulkhead fitting with the washer, o-ring side down, through the 5/8” hole in the
grommet adapter.
