11

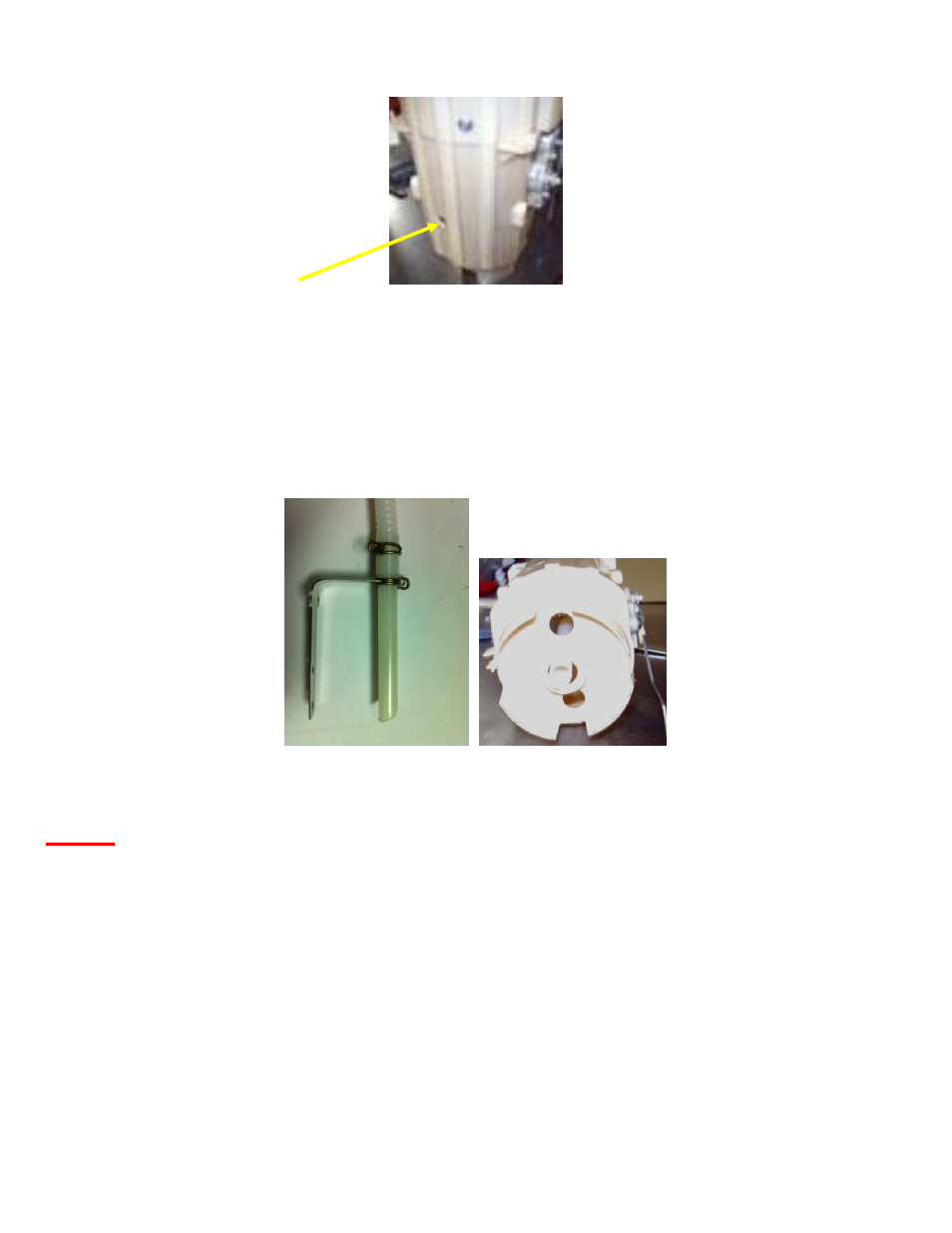

Step 11. Next drill two more holes, one on either side of where the tube will be in bottom of module
(fig 11).

Figure 11


Step 12. Slide the two wire clamp over the ring end of bracket (Fig 12), insert Nylon tube with the

angle cut pointing to bottom of module (Fig 13), attach convoluted tube with spring clamp and secure

bracket to module with supplied screws and lock nuts, make sure Nylon tube is at bottom of module

where lower screen is.

Figure 12 Figure 13


NOTE: The return line from your AirDog or AirDog II system must be connected to factory

suction line on the fuel module for upgrade to work properly.

All return fuel must return to module.

Step 13. Re-install the modified fuel module in the fuel tank. Be careful to not bend the

sending unit float arm when re-installing the fuel module. Be sure to index the fuel
module to the original position to avoid issues with the fuel level float.


Step 14.

Re-install the fuel tank in the truck. Do not completely “button up” the tank straps until
all of the new fuel lines as well as the original engine return line and electrical connector
have been re-connected to their respective fittings on the fuel module.

Be sure to re-connect the original engine return line to the module.
