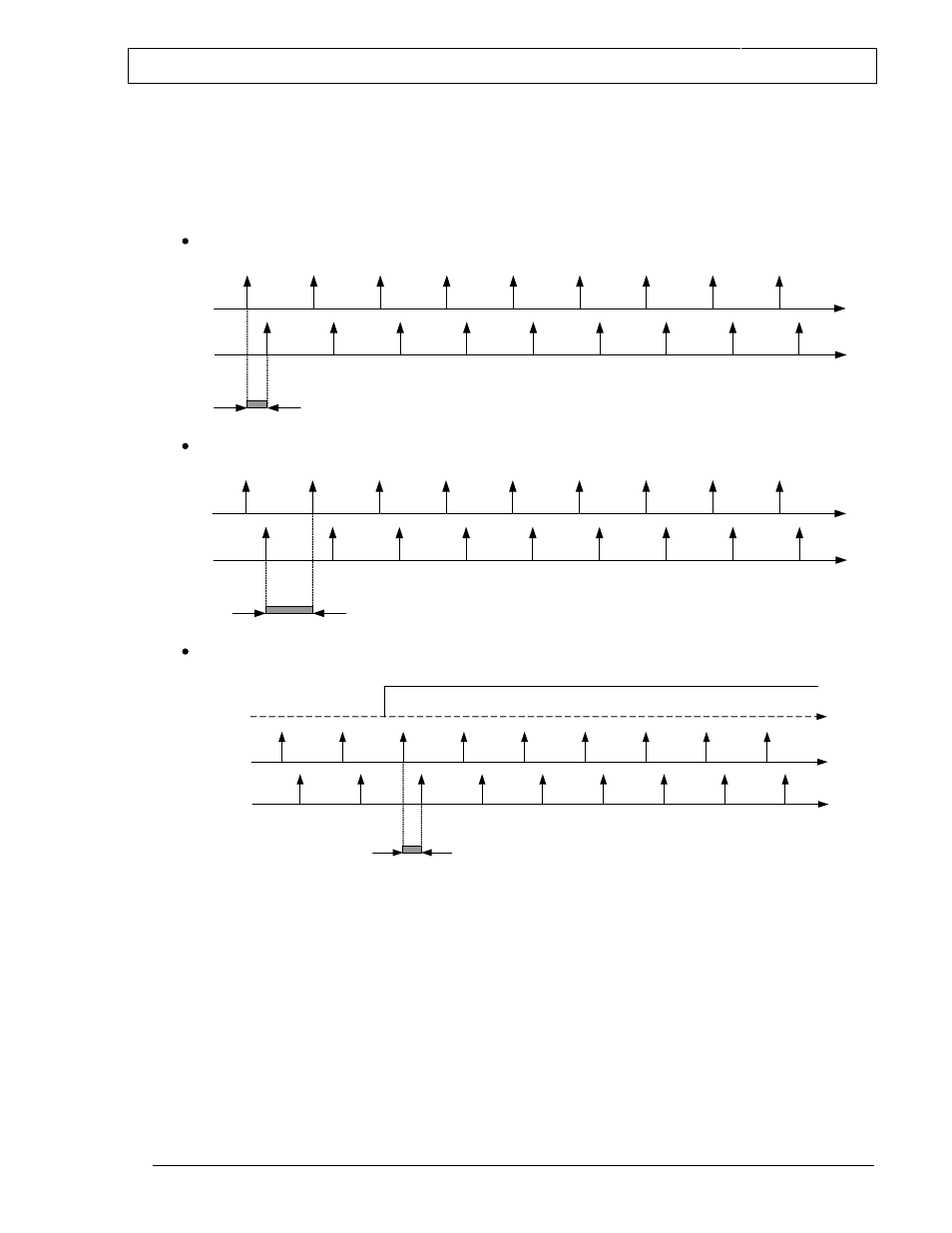

3.1.6. Arming mode
The BNC 1120 has 3 arming modes:
ARM ON START,
START
pulse
time
STOP
pulse
Time
Measurement
ARM ON STOP,
START
pulse
time
STOP
pulse
Time
Measurement
ARM ON GATE.
START
pulse
time
STOP
pulse
Time
Measurement
GATE
pulse
