III INSTALLATION
page 20
Operation

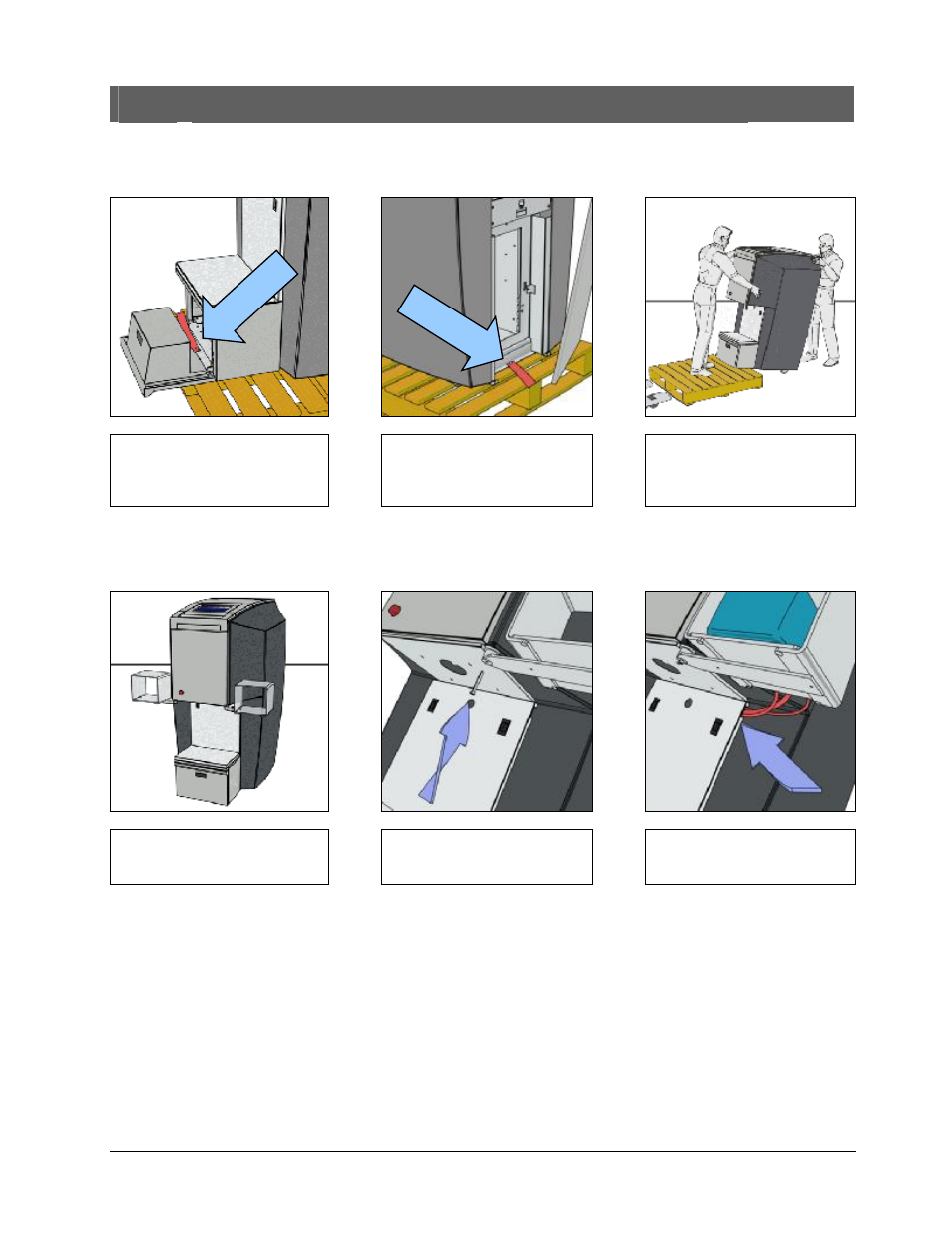

Step 3 Detach the dispenser from its transport skid
> >
Unscrew the labeled bolt in
the front of machine, under
the can table.
Unscrew labeled bolt in
back of machine, in the
computer cavity.
Carefully maneuver the
machine off the skid onto
its rear wheels and roll it to
its final operational position.
Step 4 Mount external hardware bracket (optional)
> >
The bracket can be mounted
on either side of the
dispenser.
Mount bracket with
supplied M6 bolt at desired
angle.
Guide cables through slot in
bottom service panel and
connect to computer inside.
