4 Positioning/Installing the machine 7
4.2.2 Removing the machine from the pallet
•
Lift the machine slightly with the handles on the back of the machine and, with two people behind the
machine, pull the machine backwards (see figure 2).
•
Carefully lower the back to the floor (figure 3).
•
Carefully tip the machine slightly further so that the front is clear of the pallet.
•
Slide the pallet away from under the machine and lower the machine carefully (figure 4).
•
You can now wheel the machine to where you want it by lifting it by the handles on the back.
•
Lastly, unscrew the adjustment feet at the front and back so that the machine is no longer resting on
the wheels, and is stable and level. (There are also adjustment feet at the back).

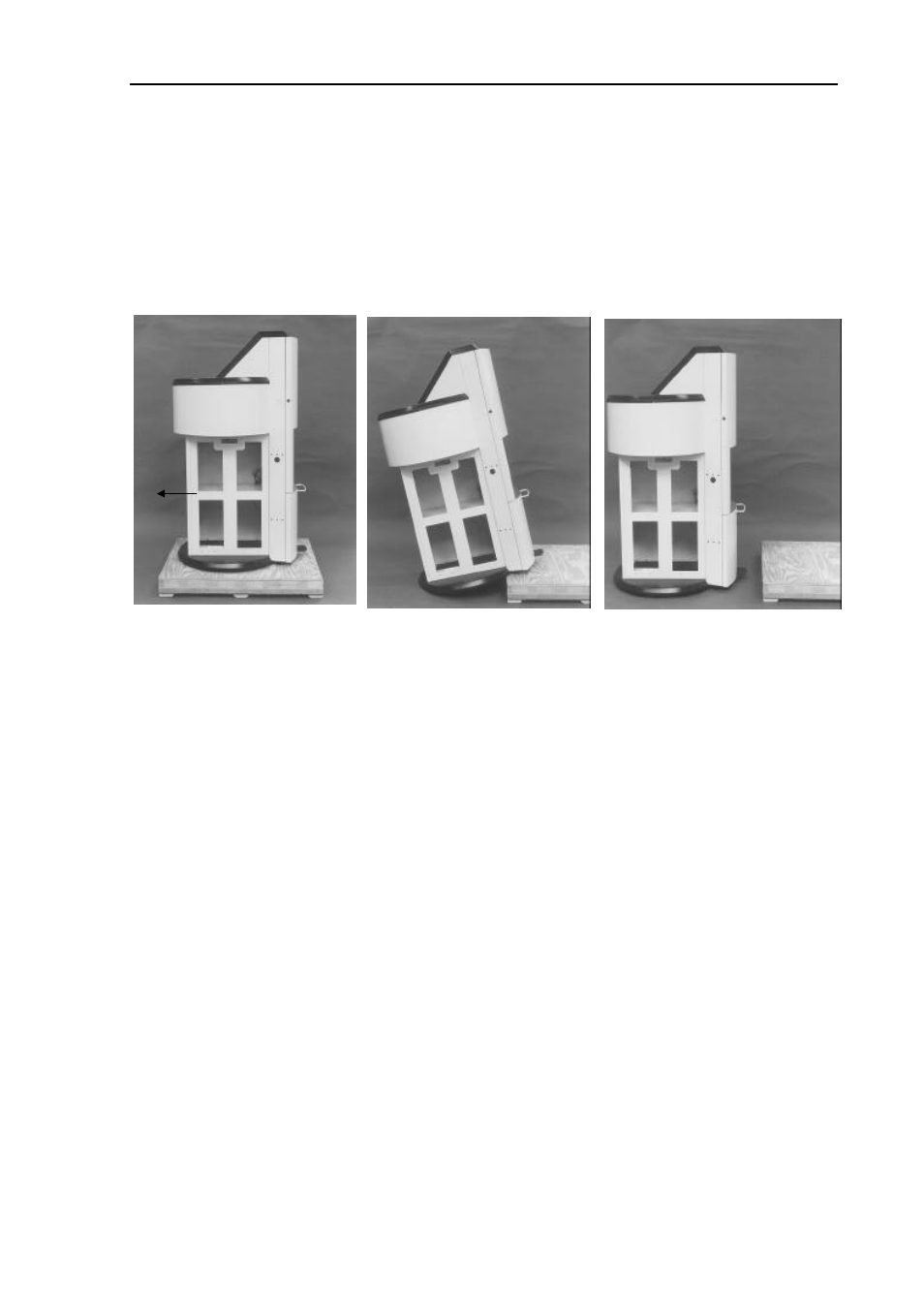

figure 2 figure 3 figure 4
