ARB 3432150 - Manual (Page 17)

19-03-08 Page 17 of 21 3783182

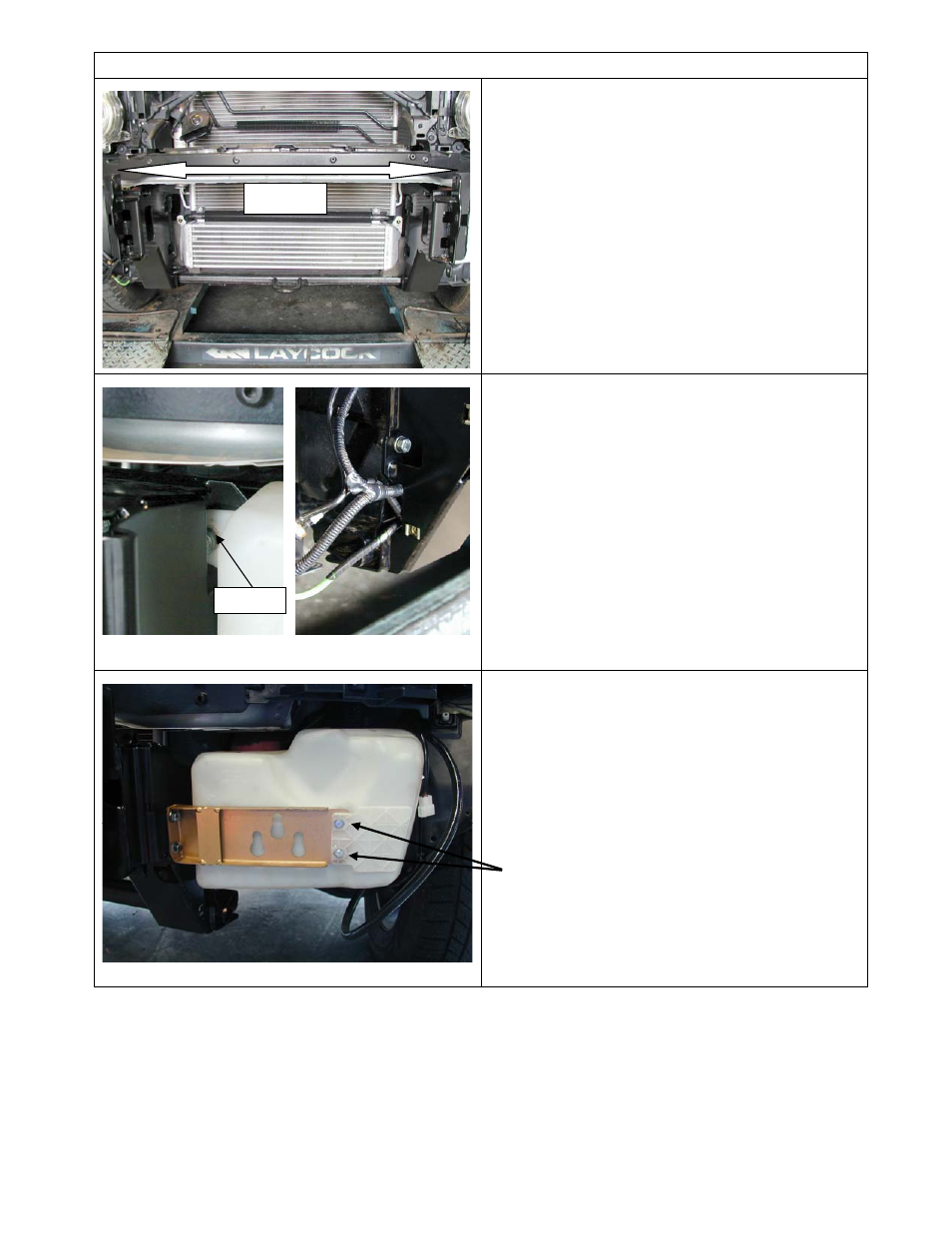

BULL BAR FITMENT TO VEHICLE
54. Centralise the mounts so that the surface
that mounts to the bull bar is vertical.
55. The mounts must be positioned so that
there is 815mm gap between the outside
surfaces of the bull bar mounting face.
56. Tighten all the bolts.
57. On the left hand side, the washer bottle
sits in front of the mount face. (Make sure
that the metal spacer in the washer bottle
tag remains in place)
58. On the right hand side, the air lines on air
suspension models run through the gap in
the impact absorber backing plate.
59. Install two M6 cage nuts into one of the
Washer bottle brackets.
60. Attach the washer bottle bracket wit the
cage nuts installed to the left hand side
impact absorber using two M8 x 20mm
bolts, M8 flat and spring washers.
61. Fix the washer bottle to the bracket using
two M6 x 20mm black bolts, M6 flat black
washers and M6 black spring washers.
815mm
Spacer
