19-03-08 Page 16 of 21 3783182

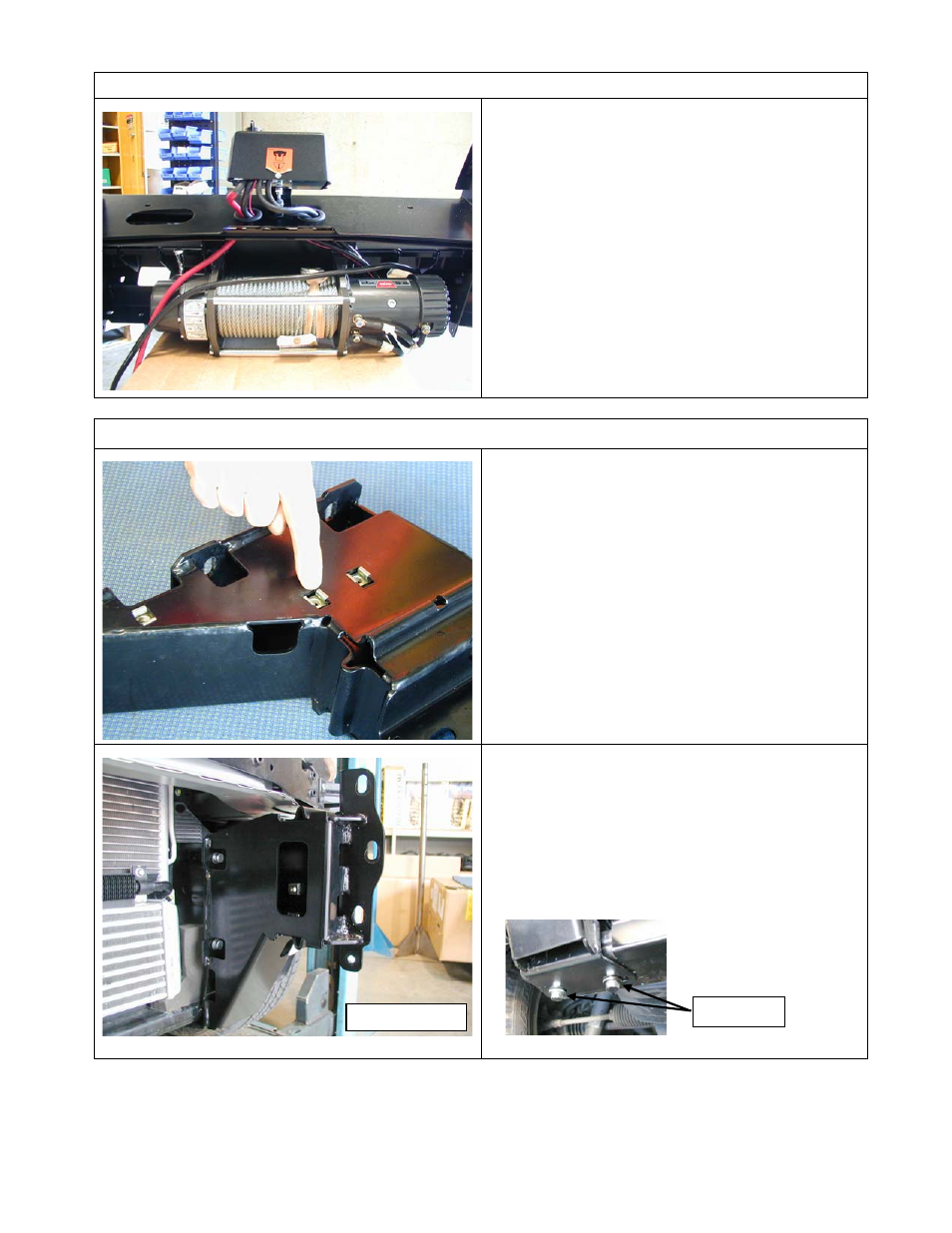

WINCH FITMENT
50. Run the cables through the rubber
grommets and connect to the winch as
per wiring diagram supplied with the
winch.
51. Using cable ties, fix the cables away from
any moving, sharp or hot surfaces.
BULL BAR FITMENT TO VEHICLE
52. Fit the six M8 cage nuts to the impact
absorbers.
53. Mount both the impact absorbers to the
vehicle using four (a side) M8 x 25mm
bolts, M8 flat and spring washers in the
front face, two (a side) M10 x 35mm bolts,
M10 flat washers, M10 spring washers
and M10 flange nuts in the underside.(
DO NOT TIGHTEN)
M10 bolts
Left hand side
