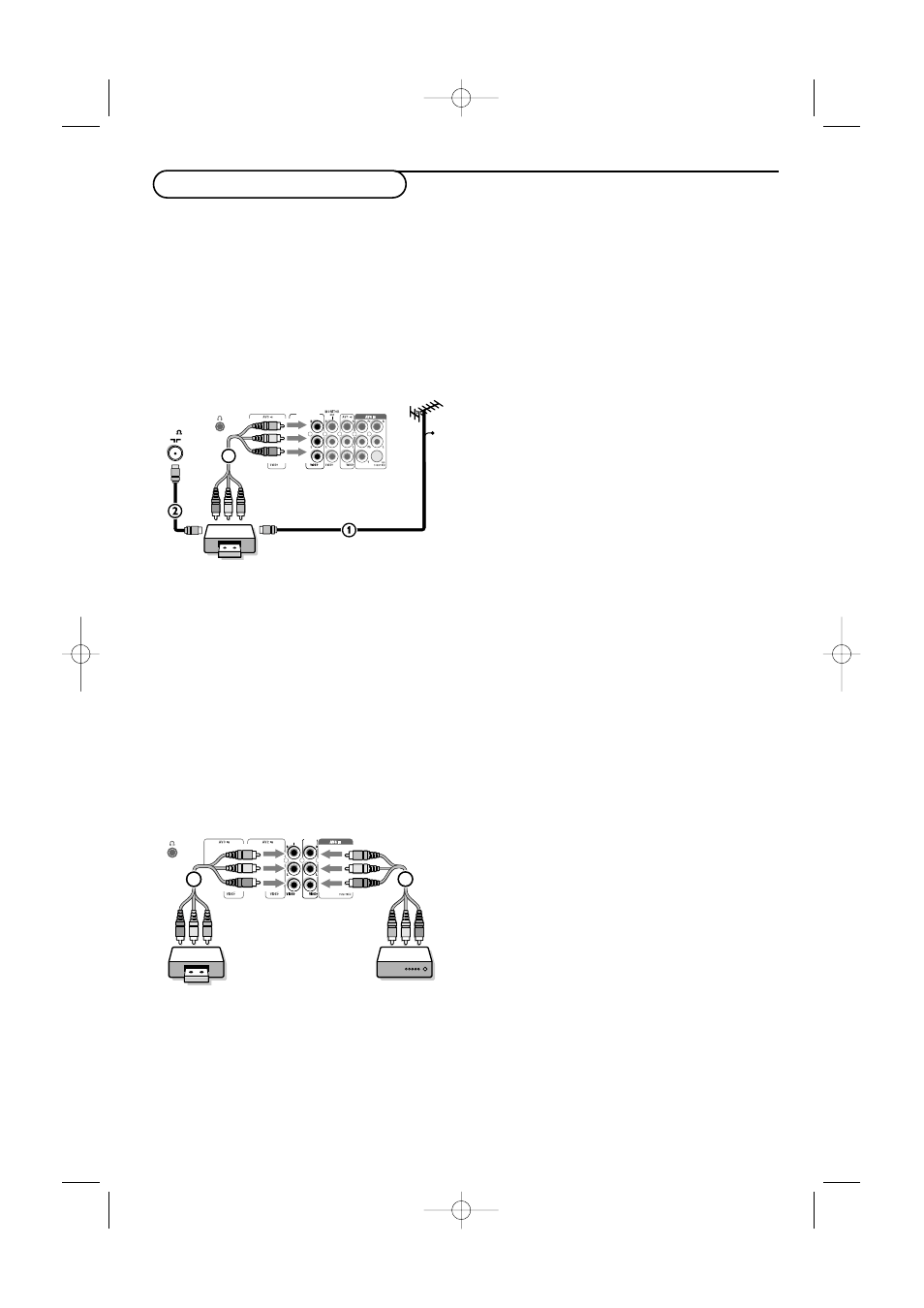

There is a wide range of audio and video devices that can be connected to your TV.The following
connection diagrams show you how to connect them to the TV.
AV1 IN can handle CVBS; AV2 IN CVBS and Y/C; AV3 IN CVBS and Y/C; and AV4 IN YPbPr 480p,YPbPr 1080i.
Recorder ( VCR - DVD + RW )
Note: Do not place your recorder too close to the screen as some recorders may be susceptible to signals from the
display. Keep a minimum distance of 20” from the screen.
75
ANTENNA
AV2
IN
3
OUT
CABLE
RECORDER
OUT IN
AV1
IN
MONITOR
OUT
OUT
VIDEO
L/ Mo no
R
IN
RECORDER
x TV
5 4
Connect Accessory Devices
& Connect the RF Antenna or Cable TV
cable (also possible via an optional two-
way signal splitter and/or Cable TV
converter box) 1 to the
RF IN socket
of your recorder.
é Connect another RF cable 2 from the
output
OUT of your recorder to the
TV’s input 75 ø x jack.
“ Better playback quality can be obtained if
you also connect the Video, Audio Left
and Right (only for stereo devices) AV
cables 3 to the
VIDEO , AUDIO L and
R input jacks of AV2 IN .
If your recorder has an S-VHS video
jack:
For improved picture quality, connect an
S-video cable with the
S-VIDEO input
instead of connecting the recorder to
the
VIDEO jack of AV2 IN .
S-Video does not provide audio, so audio
cables must still be connected to provide
sound.
Recorder and other A/V devices
Recorder
& Connect your recorder as described
above 3.
é The MONITOR OUT connectors can be
used for daisy chaining or to record
programs from your TV 5.
See Record with your recorder, p. 19.
Other AV devices
“ Connect the Video, Audio left and Audio
right (only for stereo devices) cables to
the
VIDEO , AUDIO L and R input jacks
of AV1 4.
Note: in case of mono equipment, only the
left loudspeaker reproduces sound. Use a
mono to stereo adapter (not supplied) for
sound reproduction via all internal
loudspeakers.
