4-2 Main Screen

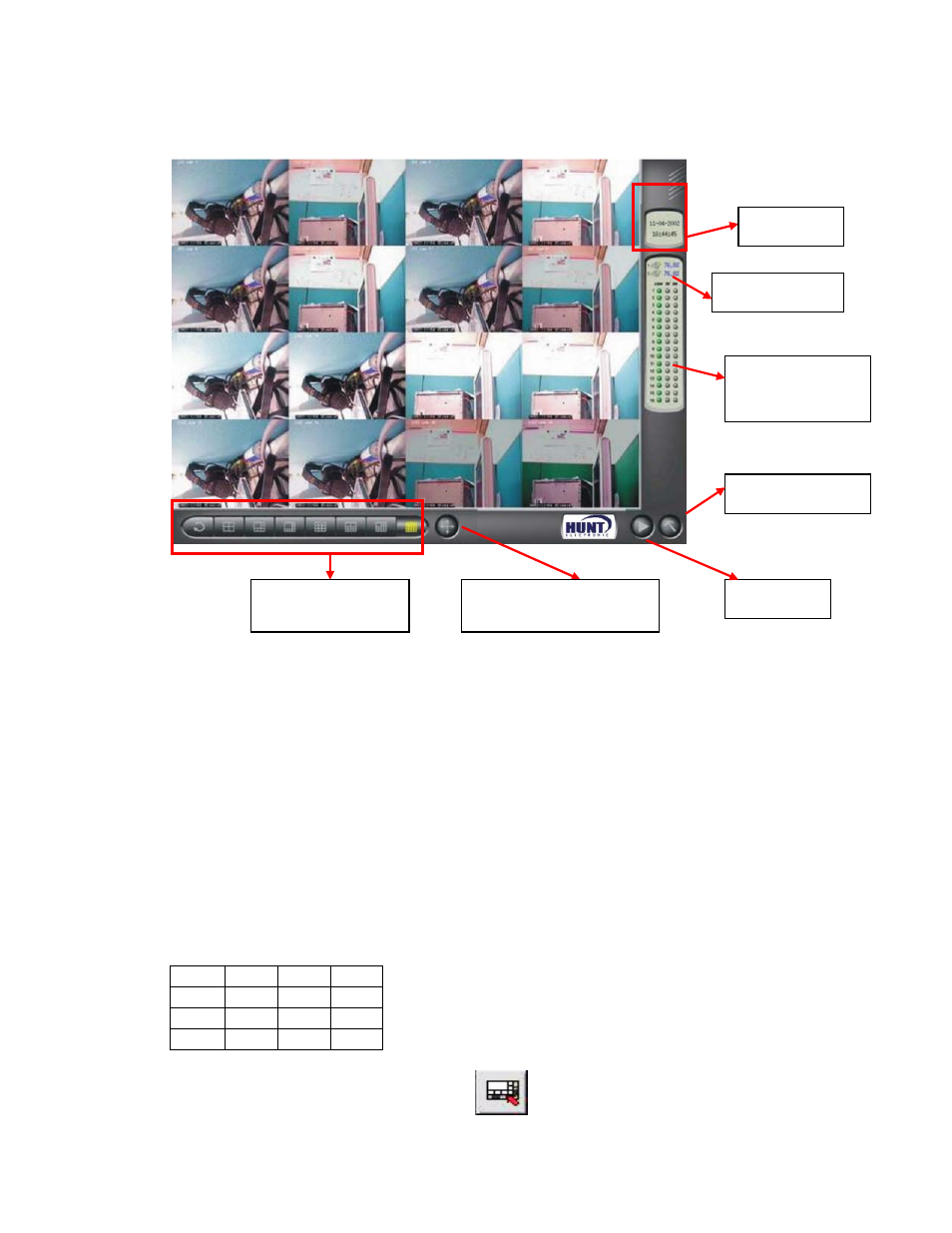

The above picture is an example of the main screen.
On the right of the screen is the “status display”. From top to bottom is Date/Time,
Hard Disk Free Space, then followed by 3 columns and 16 rows, which are Recording
Status (1
st column), DI Receiving Status (2 nd column), and DO Output Status (3 rd
column).
On the bottom of the screen, from left to right are “7 Display Modes”,
“Full Screen Monitoring” icon, “Company logo (Hunt)”, “Playback” icon, and “System
Settings” icon. All the functions are operated by icon clicking.
The following graph shows the camera number related to the location on the screen.
1 2 3 4
5 6 7 8
9 10 11 12
13 14 15 16
Please note that whenever you click this
icon, the system will return to the
Main Screen.
Display Mode
Date/Time
Playback
System Settings
HD Free Space
Recording Status
IO Status
Full Screen Monitoring
