25
(3) One IO-1616 module, which includes 1 board (for internal connection),
4 cables (for internal connection), 1 board (for external connection), and
1 cable (for external connection)..

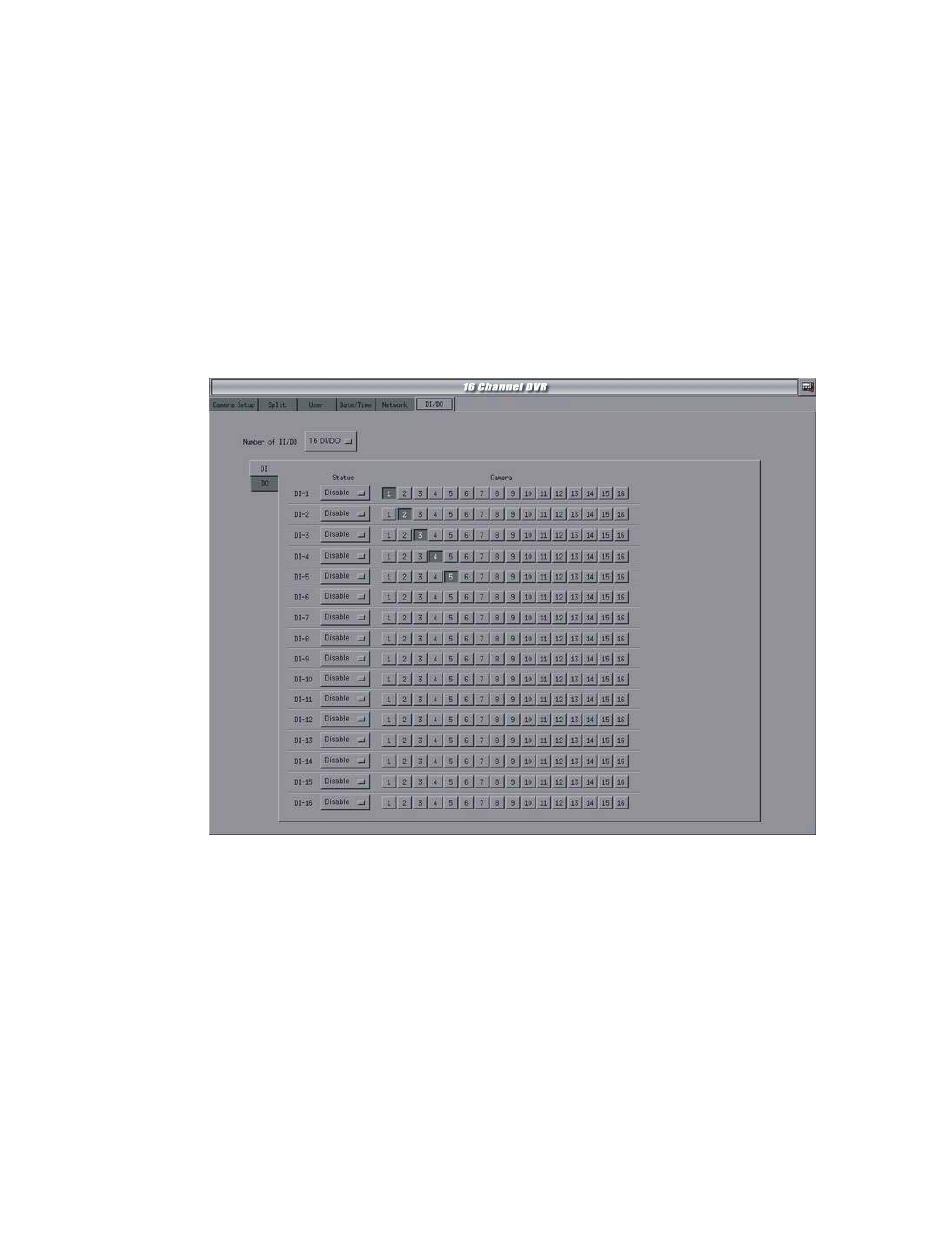

2 DI control options:
2.1 Disable: Disable the “control signal input”.
2.2 NC (normal close): signal loop is normally closed; if loop becomes
opened, then starts recording.
2.3 NO (normal open): signal loop is normally opened; if loop becomes
closed, then starts recording
3 DO control options:
3.1 Disable: Disable the output signal.
3.2 Enable: Enable the output signal. The signal duration can be set to 0.1,
0.5, 1, 2, 5, 10, 20, 30, and 60 minutes.
3.3 Duration: Setting the duration time.
