3
These Tools Are Not Provided in the Box
Phillips Head Screwdriver
3/4” and 9/16” Wrenches or Adjustable Wrenches
* Tool and Hardware specifications subject to change
without notice.
Hex Wrenches Are Provided in the Box
3/32” Allen Wrench for #8 Allen Screws
5/16” Allen Wrench for 1/2” Allen Screws
7/32” Allen Wrench for 3/8” Allen Screws
1/8” Allen Wrench for Top Cover Screws
3/16” Allen Wrench for Upholstery Screws
Tools You Will Need

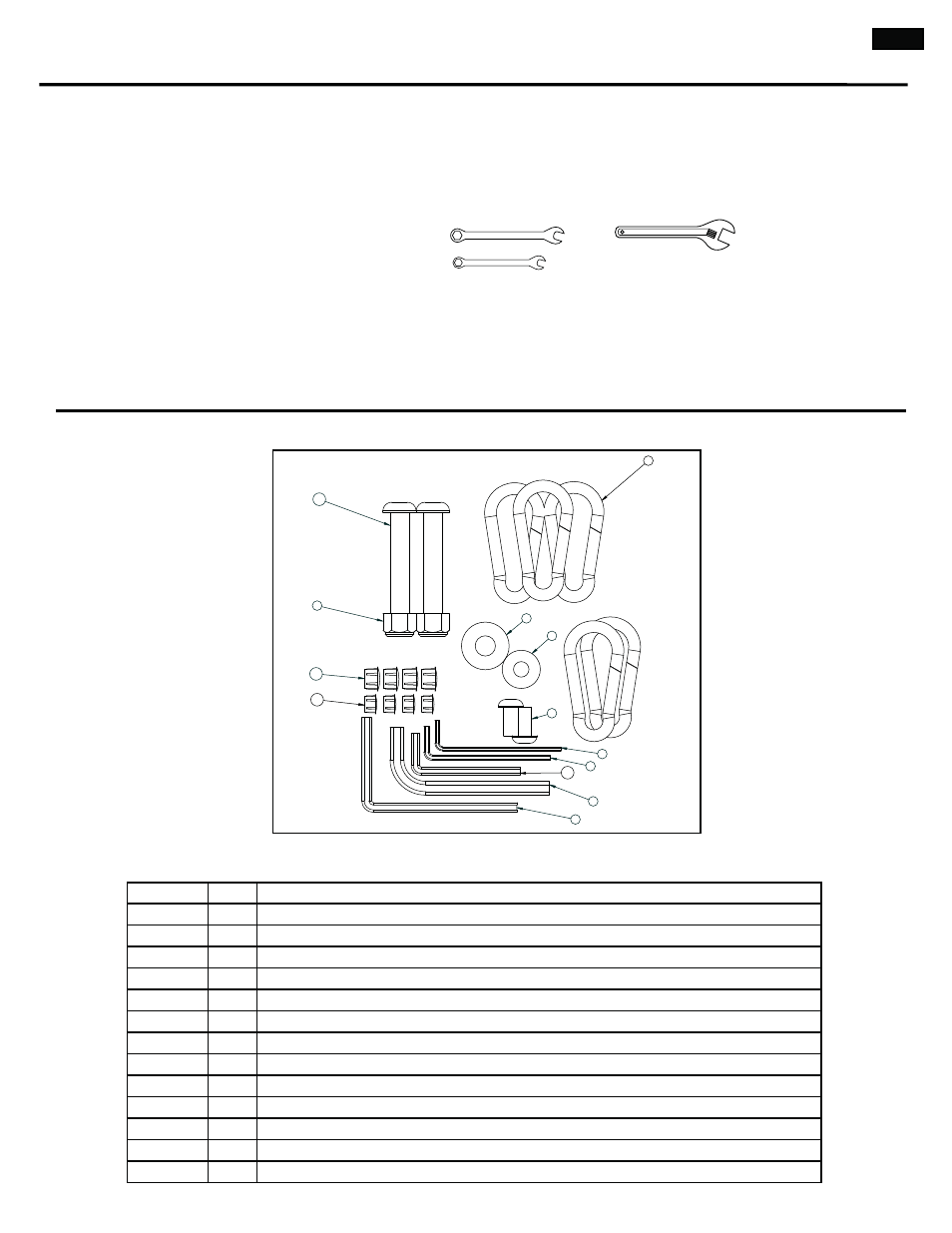

Hardware Card (Box 2)
3
12
6
5
4
3
1
10
7
8
2
11
9
13
ITEM NO. QTY. DESCRIPTION
1 2 BUTTON HEAD CAP SCREW WITH THREADLOCK 3/8”X3/4”
2 2 NYLOCK NUT 1/2”
3 1 WRENCH, ALLEN HEX 3/32”
4 1 WRENCH, ALLEN HEX 1/8”
5 1 WRENCH, ALLEN 7/32”
6 1 WRENCH, ALLEN HEX 5/16”
7 2 WASHER 3/8”
8 4 WASHER 1/2”
9 5 SPRING CLIP
10 4 1/2” PLASTIC PLUG
11 4 3/8” PLASTIC PLUG
12 2 BUTTON HEAD CAP SCREW 1/2”x3 1/4”
13 1 WRENCH, HEX 3/16”
Hardware
3
