17

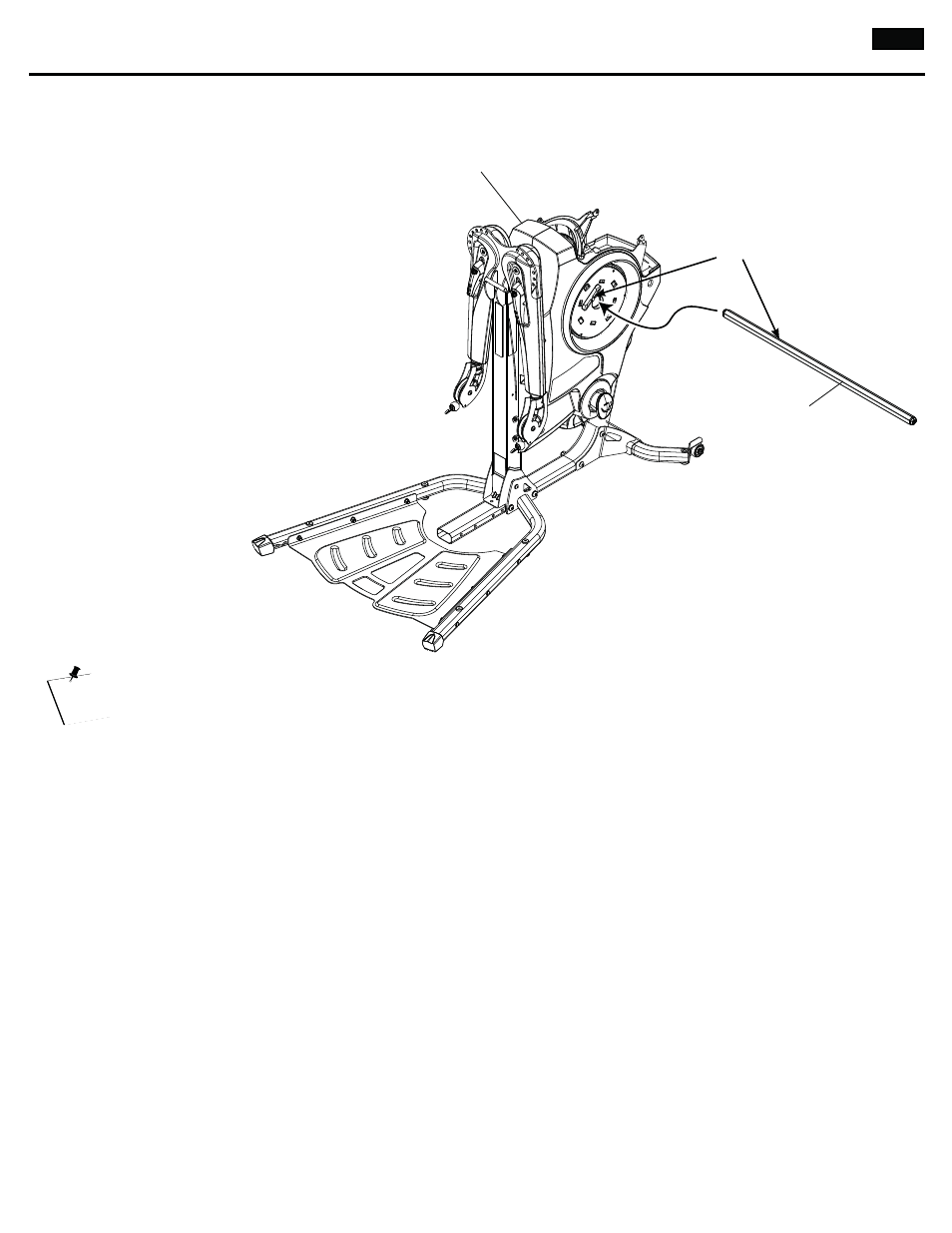

Step 12 Install Tension Shaft
Parts:
• Main Unit
• Shaft (Box 3)
12-1 Align the rounded side of the
Tension Shaft with the rounded
side of the hole in the Main Unit
and slowly slide the Shaft through
until it clicks into place.
If the Shaft is obstructed
inside the Main Unit,
loosen the tension
screws in the Tension
Shaft Holder (see Step 13).
Note: If you didn’t feel or hear a distinct click, make sure the shaft is centered by measuring the
amount of exposed shaft on each side of the Main Unit. There should be an equal measure
on each side.
Rounded edge on top
Shaft
Main unit
Assembly
