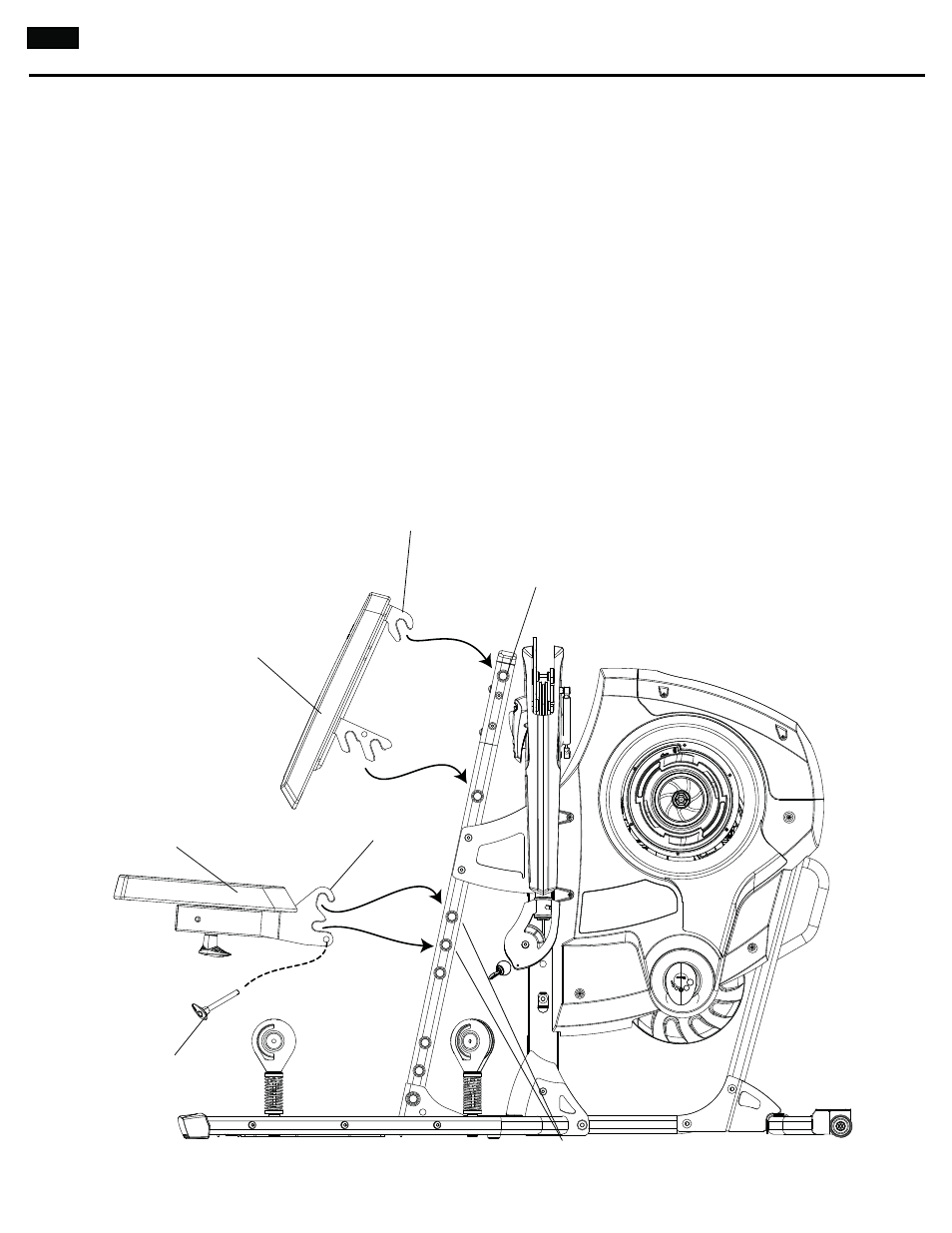

Attach the Seat and Back Pad to the Main unit by placing the Upper Hooks
onto the respective Upper Post and rotating the Lower Hook into position.
Once the Seat Pad is in postion, insert the Locking Pin through the hole
behind the Lower Hook to secure the pad to the Seat Tube.
Assembly
Attaching Seat and Back Pad
Upper Hook
Upper Hook
Upper Post
Upper Post
Locking Pin
Back Pad
Seat Pad
