Step 3 Assemble Rear Stabilizer

Parts:

• Rear Stabilizer (Box 2)

• Rubber Pads (Box 3 hardware card)

• Transport Wheels (Box 3)

Tools:
• 7/32” Allen Wrench

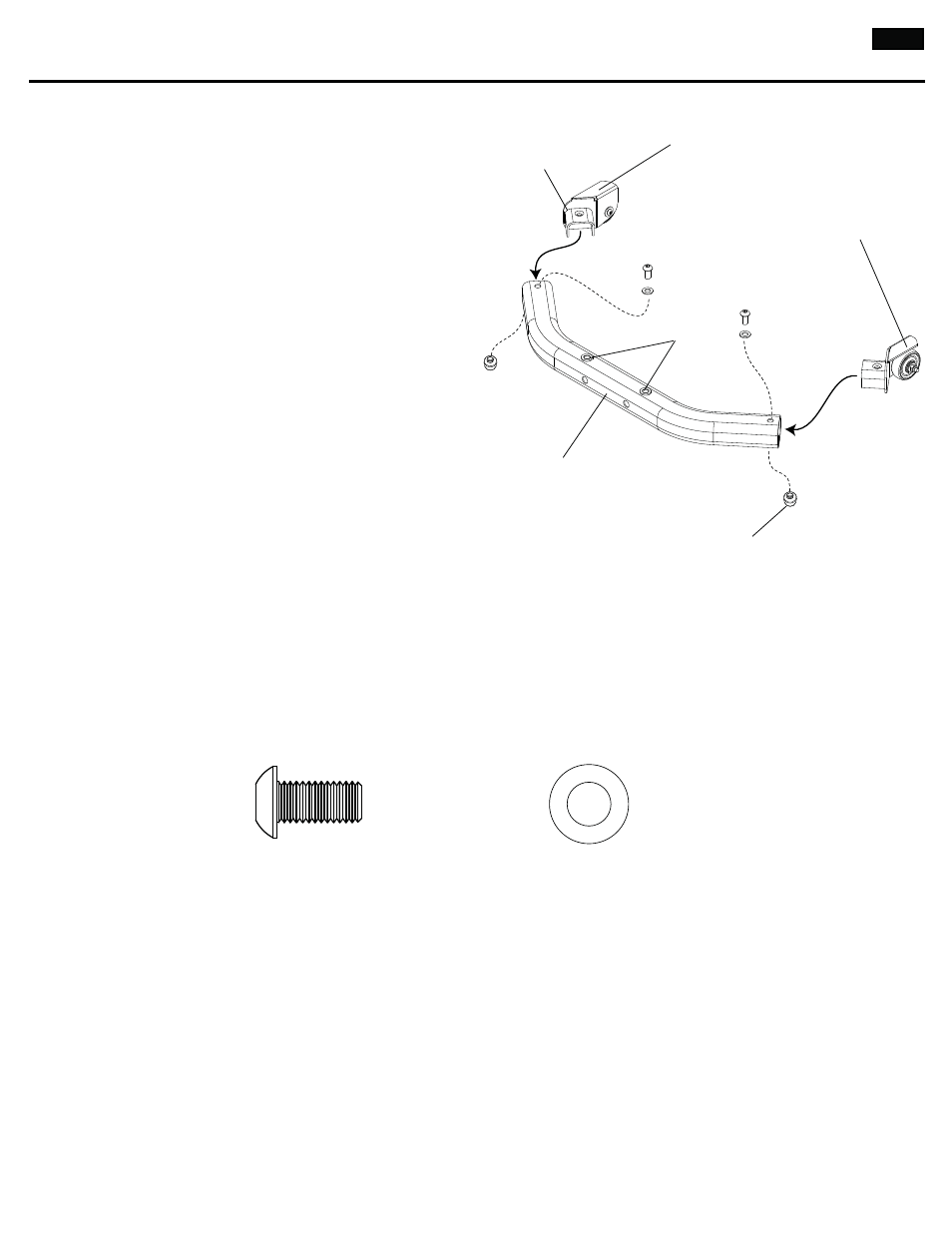

3-1 Insert Transport Wheels into Rear Stabilizer
making sure that the holes in the Stabilizer
and the plates on the Transport Wheels are
pointing up.

3-2 Install and completely tighten the hardware.

3-3 Press the Rubber Pads into the holes on the opposite

side of the hardware.

Rear Stabilizer

Hardware (1:1):

2 Button Head Cap Screw With Threadlock (3/8” X 3/4 ”)

2 Washer (3/8”)

Assembly (Unboxing)

Rubber Pad

Transport Wheel

Plate

Holes

Transport Wheel

Plate
