Assembly (unboxing) – Bowflex RevolutionXP User Manual

Page 14

Step 6

Parts:

• Platform (Box 3)
• Foot Caps (Box 2)

Tools:
• 7/32” Allen Wrench
• 9/16” Wrench or Adjustable Wrench

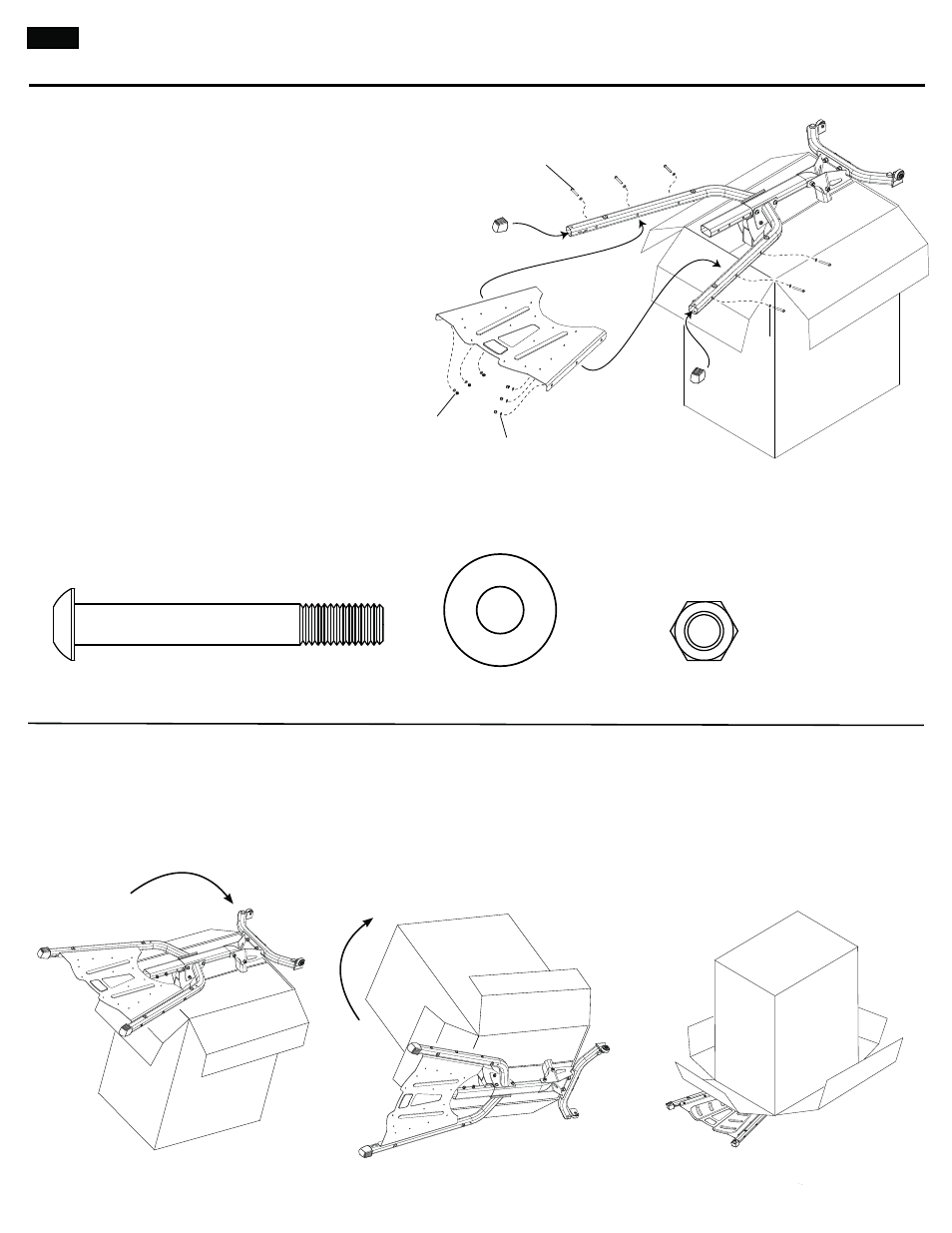

6-1 Align Platform with Stabilizers making
sure the rubber pads are pointing
downward.

6-2 Install DO NOT TIGHTEN the hardware.

6-3 Install Foot Caps onto the ends of the Stabilizers.

Assembly (Unboxing)

Step 7

With the help of a partner, slowly roll the box completely over so the unit rests on the

Rear Stabilizer and Platform.

Hardware (1:1):

6 Button Head Cap Screw (3/8” X 2 3/4”)

12 Washer (3/8”)

3/8” Washer

3/8 x 2 3/4 ” Button Head

Cap Screw

6 Nylock Nut (3/8”)

3/8” Washer

3/8” Nylock Nut
