Assembly

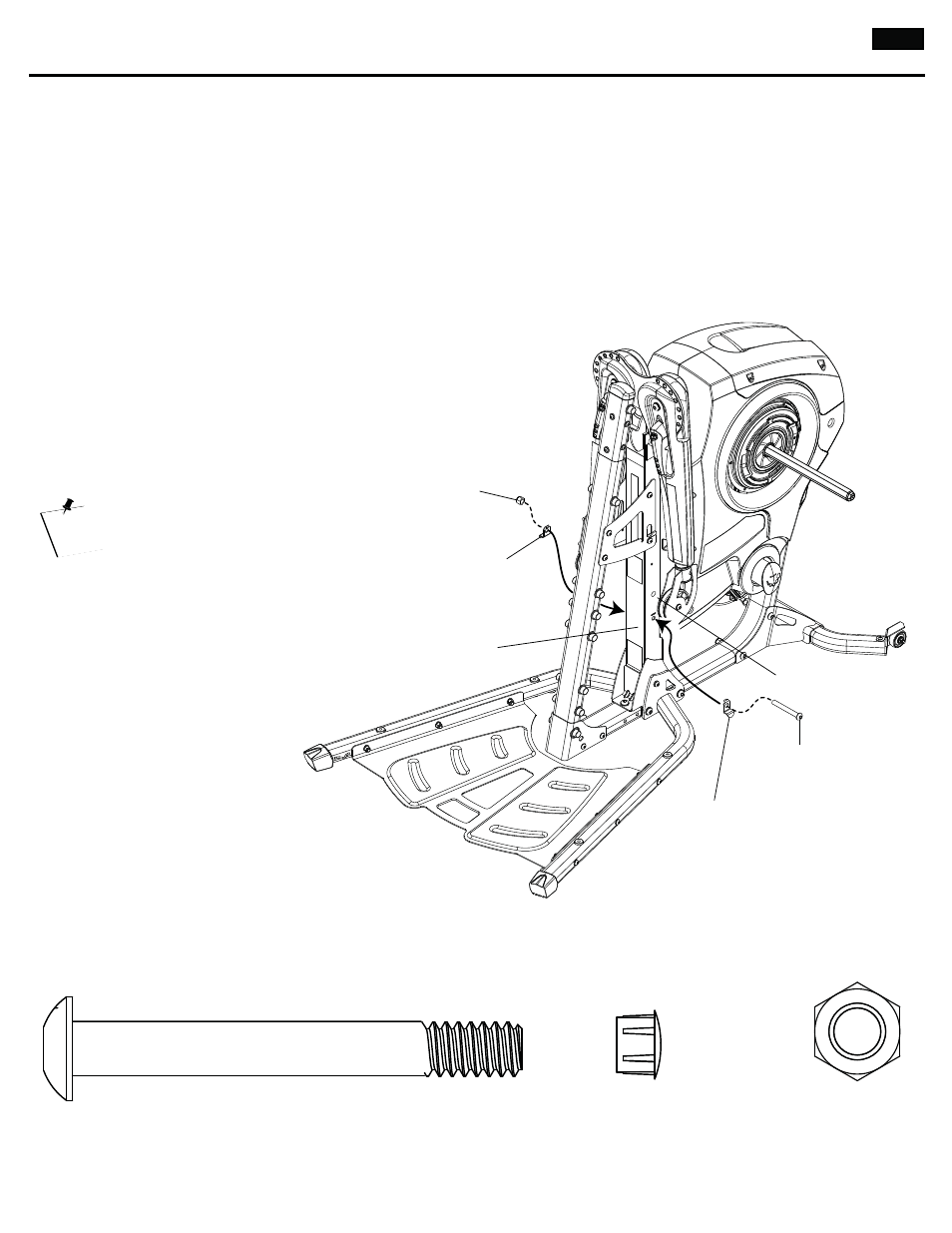

Step 20 Install Cable Hooks

Parts:

• Rope Hooks (Box 3 Hardware Card)

Tools:

• 5/16” Allen Wrench

20-1 Align the Hooks with the holes in the
Main Frame with the tabs on the hooks
inserted into the slots in the Main Frame.

20-2 Install and completely tighten the hardware.

Hardware (1:1):

Hook

1/2” Nylock nut

Main Frame

Hook

1 Button Head Cap Screw (1/2” X 4 ”)

1 Nylock Nut (1/2”)

1/2”x 4” Button Head

Cap Screw

NOTE: The remaining holes in the
Main Frame just above the
Hook Holes should be plugged
with two 1/2” plugs from the
Box 2 hardware card.
The remaining plugs are
not needed on this unit and
can be discarded.

Plug these holes

Plug
