6

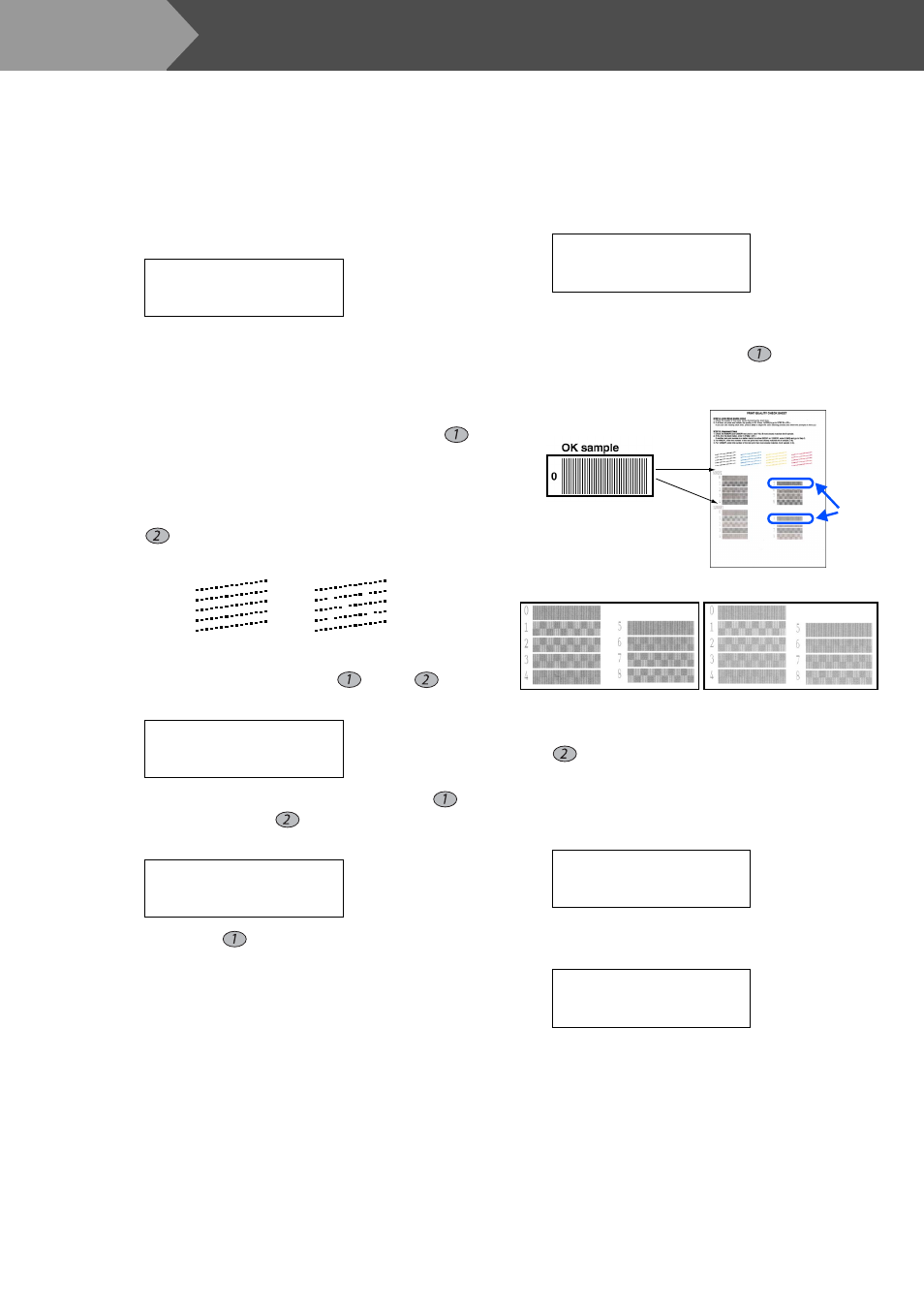

Setting Up the DCP
Step A: Colour Block Quality
Check
1
The LCD shows:
Check the quality of the four colour blocks
formed by the short lines printed on the
sheet.
(BLACK/CYAN/YELLOW/MAGENTA)
2
If all lines are clear and visible, press the
key on the dial pad to go to STEP B:
Alignment Check on page 7.
---OR---
If you can see missing short lines, press the
key on the dial pad and go to 3 .
3
The LCD asks you if the print quality is OK
for each colour. Press the
key or key
on the dial pad.
When you have finished selecting the
key (YES) or the key (NO) for each
colour, the LCD shows:
Press the key (YES), and then DCP
starts cleaning the colours.
After cleaning is finished, press the
Colour Copy key. The DCP starts printing
the PRINT QUALITY CHECK SHEET again
and goes back to the first step of STEP A.
Step B: Alignment Check
1
The LCD shows:
Check the 600 DPI and 1200 DPI test print
to see if No.5 most closely matches the OK
sample (No.0). Press the
key if No.5
matches it.
If another test print number is a better match
for either 600 DPI or 1200 DPI, press the
key to select NO and go to 2 .
2
For 600 DPI, select the number from 1 to 8
that most closely matches the No.0 sample
and enter it using the dial pad.
3
For 1200 DPI, enter the number from 1 to 8
that most closely matches the No.0 sample.
The Quality check is now complete.
IS STEP "A" OK?
1.YES 2.NO
BLACK OK?
1.YES 2.NO
START CLEANING?
1.YES 2.NO
OK Poor
IS STEP "B" OK?
1.YES 2.NO
600DPI ADJUST
SELECT BEST #
1200DPI ADJUST
SELECT BEST #
600 DPI 1200 DPI
No.5
