UNIT ARRANGEMENT AND ACCESS

General

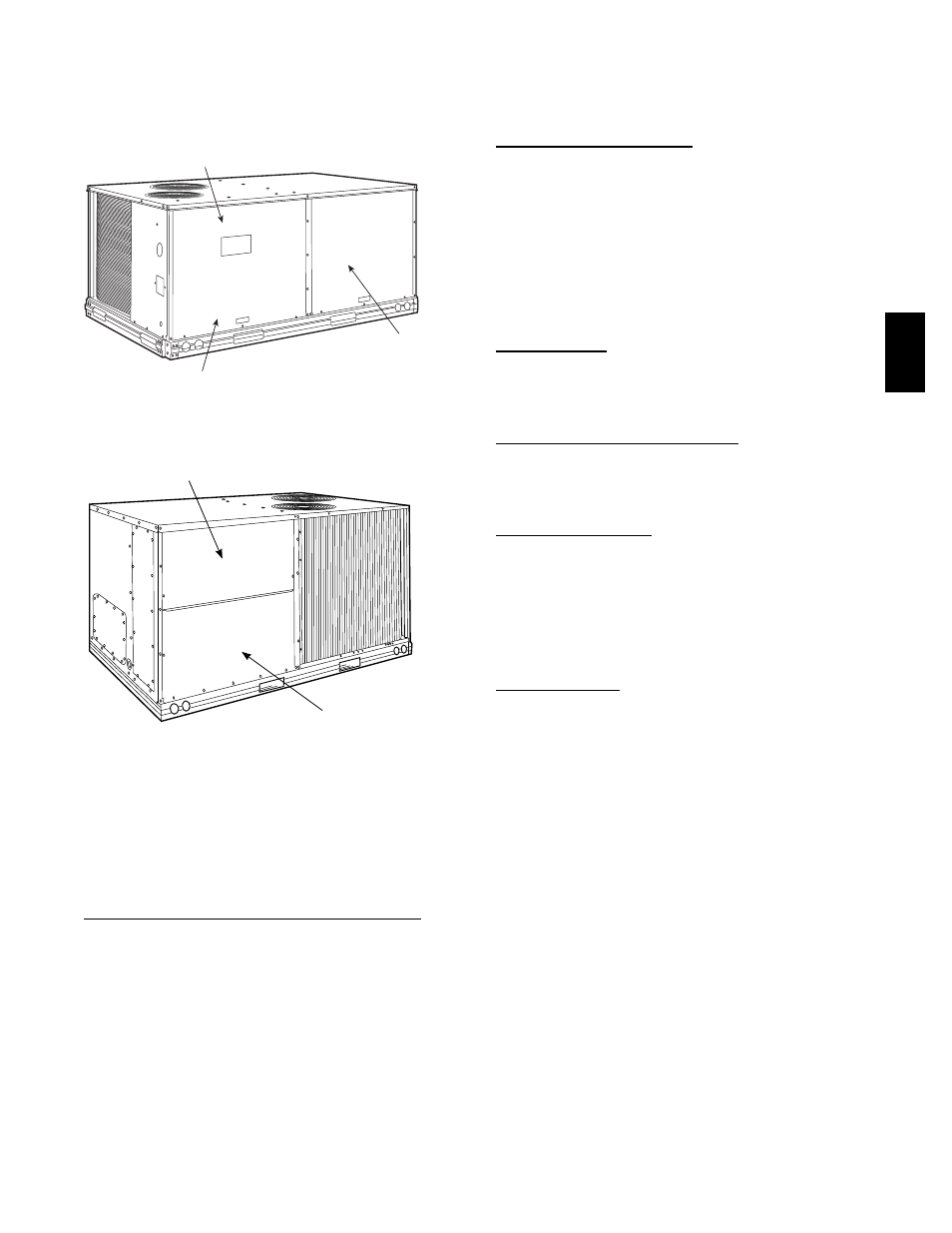

Fig. 1 and Fig. 2 show general unit arrangement and

access locations.

INDOOR BLOWER
ACCESS

CONTROL BOX

COMPRESSORS
(D08-09 only)

C09190

Fig. 1 -- Typical Access Panel Location (Front)

FILTER ACCESS PANEL

INDOOR COIL ACCESS PANEL

C08449

Fig. 2 -- Typical Access Panel Locations (Rear)

Routine Maintenance

These items should be part of a routine maintenance

program, to be checked every month or two, until a

specific schedule for each can be identified for this

installation:
Quarterly Inspection (and 30 days after initial start)

S

Return air filter replacement

S

Outdoor hood inlet filters cleaned

S

Belt tension checked

S

Belt condition checked

S

Pulley alignment checked

S

Fan shaft bearing locking collar tightness checked

S

Outdoor coil cleanliness checked

S

Condensate drain checked

Seasonal Maintenance

These items should be checked at the beginning of each

season (or more often if local conditions and usage

patterns dictate):
Air Conditioning/Heat Pump

S

Outdoor fan motor mounting bolts tightness

S

Compressor mounting bolts

S

Outdoor fan blade positioning

S

Control box cleanliness and wiring condition

S

Wire terminal tightness

S

Refrigerant charge level

S

Indoor coil cleaning

S

Supply blower motor amperage

Electric Heating

S

Power wire connections

S

Fuses ready

S

Manual--reset limit switch is closed

Economizer or Outside Air Damper

S

Inlet filters condition

S

Check damper travel (economizer)

S

Check gear and dampers for debris and dirt

Air Filters and Screens
Each unit is equipped with return air filters. If the unit has

an economizer, it will also have an outside air screen. If a

manual outside air damper is added, an inlet air screen

will also be present.

Each of these filters and screens will need to be

periodically replaced or cleaned.
Return Air Filters
Return air filters are disposable fiberglass media type.

Access to the filters is through the small lift--out panel

located on the rear side of the unit, above the

evaporator/return air access panel. (See Fig. 1.)

To remove the filters:

1. Grasp the bottom flange of the upper panel.
2. Lift up and swing the bottom out until the panel dis-

engages and pulls out.

3. Reach inside and extract the filters from the filter

rack.

4. Replace these filters as required with similar replace-

ment filters of same size.

To re--install the access panel:

1. Slide the top of the panel up under the unit top panel.
2. Slide the bottom into the side channels.
3. Push the bottom flange down until it contacts the top

of the lower panel (or economizer top).

IMPORTANT: DO NOT OPERATE THE UNIT
WITHOUT THESE FILTERS!
