Instruction Manual – Model CF1400 Oil Burner

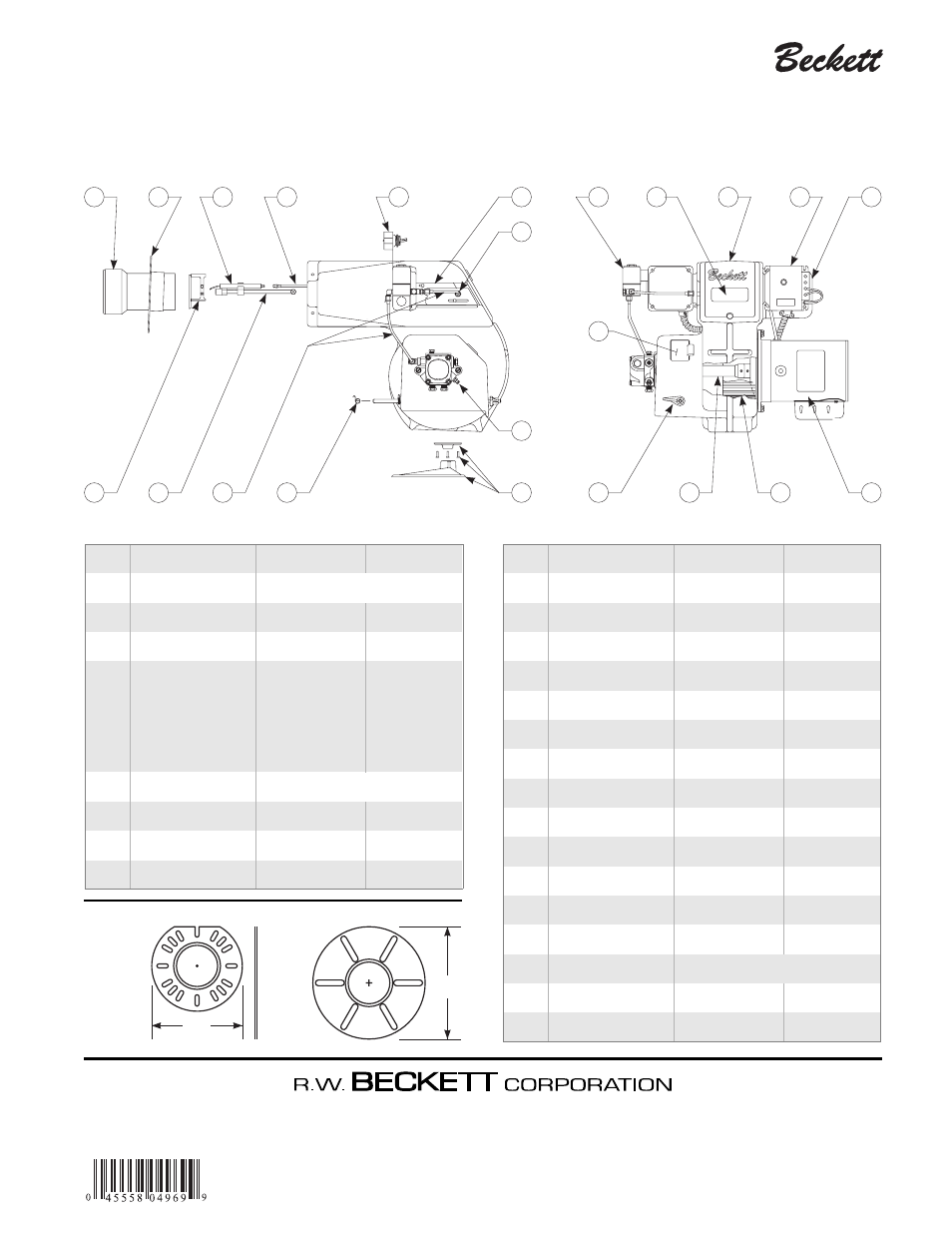

Replacement parts
1 2 3 9
5 7 8
4
6
10
11
14
15
16 17 23 22
21 19 20 18
13
12
Item Part name Description Part number
1 Air tube Specify burner model and tube length
2 Flange kit Adjustable flange See Figure 13
3 Electrode assembly All models 51212
4 Ignition leads
8 ¼” long 5990082
11 ¾” long 5990116
15 ¼” long 5990152
19 ¼” long 5990192
5 Nozzle line assembly Specify burner model and tube length
6 Head assembly CF1400 combustion
7 Fuel lines Specify length
8 Damper spring All models 4339
Item Part name Description Part number
9 Timer Nozzle valve delay 21295
10 Adjusting plate assembly All models 51213
11 Knurled nut All models 3666
12 Fuel pump Specify
13 Pedestal kit All models 51193
14 Oil valve Box mounted 7201
15 Damper door All models 16703GY
16 Damper indicator All models 5985BK
17 Coupling Specify pump used
18 Sight glass All models 31346
19 Rear cover assembly CF1400 5994
20 Control Specify
21 Transformer 12,000 volt 51214
22 Motor Specify burner model
23 Blower wheel CF1400 5.50” x 3.09” 21268
Motor relay (not shown) Specify relay used
Kit #51629 Kit #51312
10"
12¼"
Figure 13 – Adjustable mounting plates for CF1400
