10

Form 6104 BCF14N-R0299

Instruction Manual – Model CF1400 Oil Burner

Wire the burner

Install the burner and all wiring in accordance with the
National Electrical Code and all applicable local codes or
requirements.

Wire the burner in compliance with all instructions provided
by the appliance manufacturer. Verify operation of all controls

in accordance with the appliance manufacturer's guidelines.

See

Figure 10

for a typical wiring diagram, with R8184 oil

primary, for reference purposes only.

The CF1400 burner is available with many different wiring
configurations. Refer to the wiring diagram shipped with the
burner for the actual wiring applying to your burner.

Do not by-pass any safety control.
By-passing a safety control could result in
severe personal injury, death or substantial
property damage.

Electrical shock hazard - can cause injury or
death. Disconnect power before installing or
servicing. Provide ground wiring to the burner
in accordance with the National Electrical
Code.

Legend

FD

Fused disconnect, by others

LM

Limit controls, by others

O P

Operating controls, by others

P R

Oil primary control, R8184 typical

CC

Flame sensor, cad cell typical

TM

Delay timer

TR

Ignition transformer

M1

Burner motor

S1

Oil valve

S2

Redundant oil valve — supplied

only if burner is equipped with

type H fuel unit.

T-T

24-volt thermostat/limit terminals

F-F

Cad cell flame sensor terminals

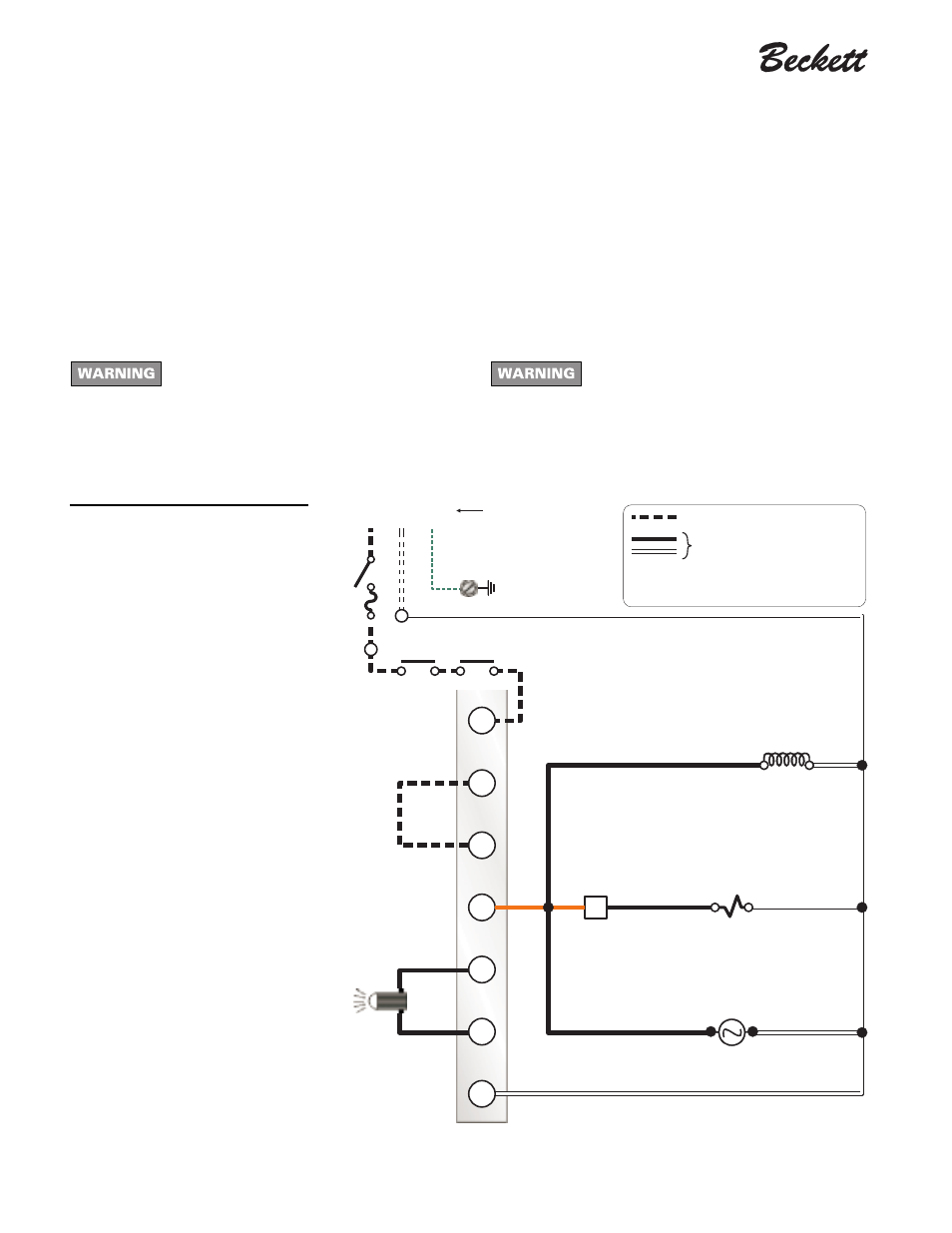

Figure 10 – Typical wiring

BK

T

T

OR

F

F

WH

H

N

G

T

OR

OR

WH

WH

WH

WH

BK

BK

TR

TM

FD

PR

Power supply
120v/60 hz

S1

CC

M1

LM

OP

BK = black

OR = orange

WH = white

Motor M1 wiring 14 ga All other wiring 16 ga

1411o

Field wiring

Factory wiring
