9 LTM 1500-8.1
10 m
20 m
30 m
40 m
50 m
60 m
70 m
80 m
90 m
100 m
110 m
120 m
130 m
140 m
150 m

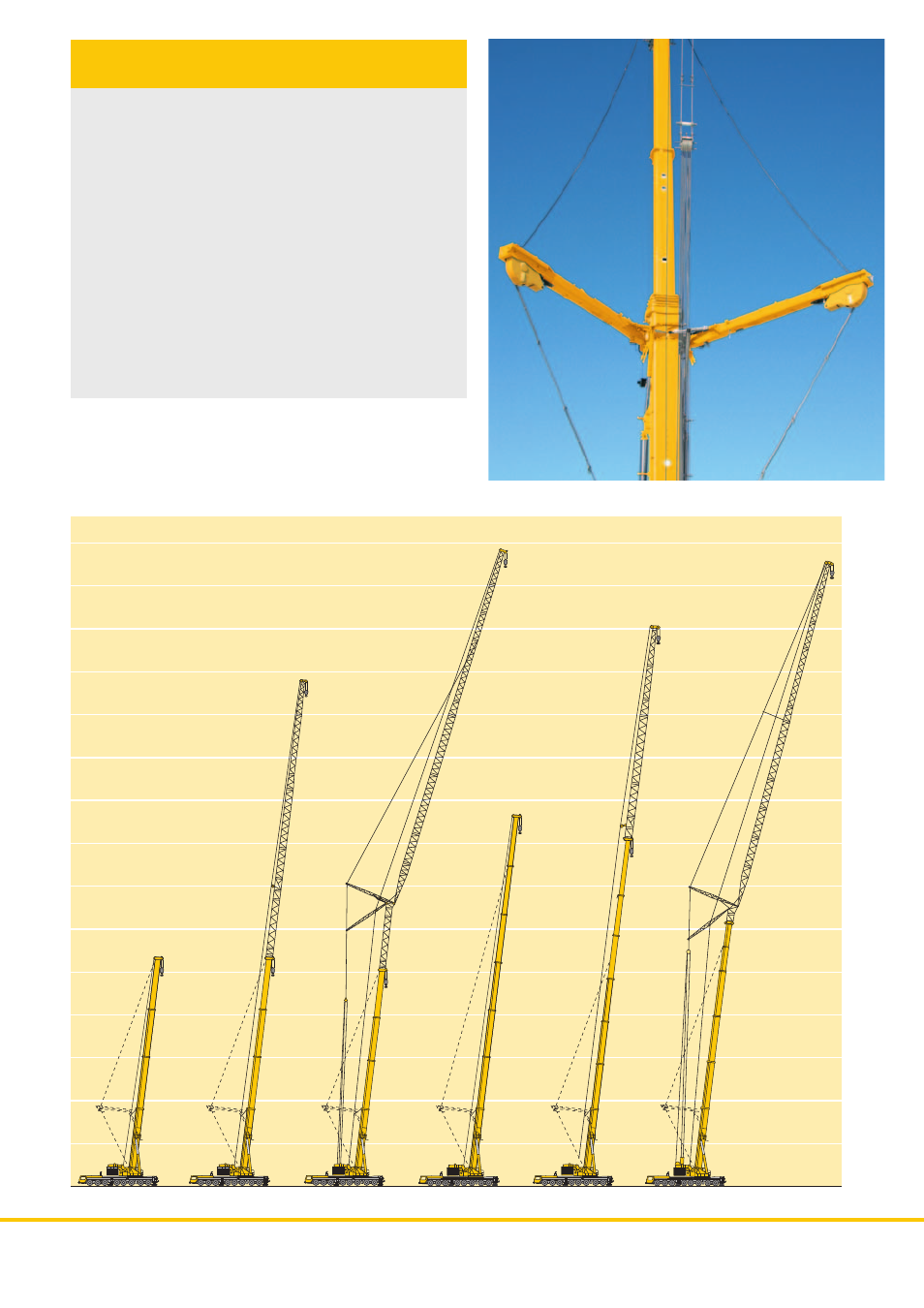

T/TY TF/TYF/TVYF T/TY TN/TYN/TVYN TF/TYF TN/TYN
• Telescopic boom T, 16.1 m - 84 m, also with additional guying
system TY and with boom extension TV
• Fixed lattice jib TF, 14 m - 63 m, mountable at 0
° or 20°, also
with additional guying system TYF
• Luffing lattice jib TN, 21 m - 91 m, mountable to the 16.1 m
- 78.8 m long telescopic boom at an inclination of 83 °, 75°
and 67
°, also with additional guying system TYN
• Intermediate sections of the TF and TN configuration are
identical and can be slid into one another for transportation
• Jib A-frames with T-adapter and N-base section form a
complete mounting/transport unit and can be mounted with
4 pins only
• Easy-to-rig stay rods which remain on the intermediate
sections during transportation
• Standard auxiliary winch for easy reeving of the hoist and
luffing ropes
• Rigging of the jib is practicable in suspended condition on
restricted sites
• Winch 2 for 2-hook operation or for operation with mast nose
• Winch 3 for luffing of the jib
Multi-variable boom configuration
system
