3 LTM 1500-8.1
R = 6.6
R = 15
R = 16.25 R = 7.15
10
10
5.2 6.25 9.6
R = 12,2
0,7
3

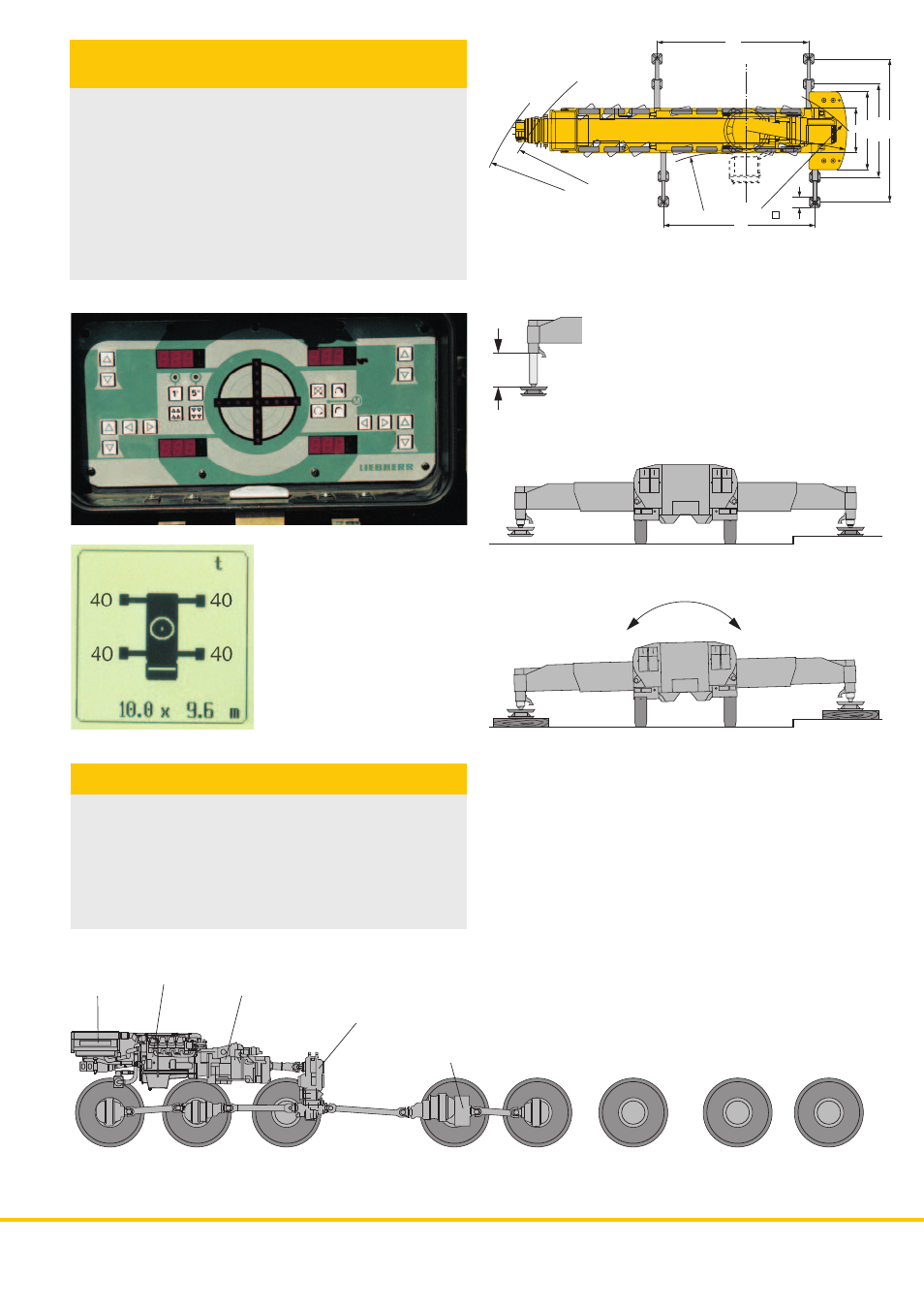

• Permanent supporting pads
• Supporting rams with 500 mm travel
• Automatic levelling of the crane during the supporting
procedure
• 2 x 9 ° lateral inclination, even with locked suspension
• Inclinometer (electronic display of inclination) with two
indicators on the carrier and one display on the LICCON
monitor
• Indicators of supporting forces on the carrier and on the
LICCON monitor
• Control of sliding outriggers with display of the state of
extension on the LICCON monitor (optional)
Setting on outriggers – quick,
convenient and safe
• 4 axles permanently driven (1st, 2nd, 4th and 5th axle)
• 6 axles are steered;
independent steering of axles 7 and 8
• Automated gear system ZF-TC-TRONIC with converter
and retarder, 12 forward and 2 reversed speeds, automated
control
• Transfer case
• Driving axles with longitudinal differential locks
Robust drive concept
10
R = 12.2
0.7
3
500 500
1st axle
driven
steered
3rd axle
non driven
steered
5th axle
driven
non steered
7th axle
non driven
steered
Diesel engine
D9508 A7
Transmission
ZF-TC -TRONIC
8th axle
non driven
steered
radiator
transfer case
eddy-current
brake
2nd axle
driven
steered
4th axle
driven
steered
6th axle
non driven
non steered
