7 LTM 1500-8.1
min 9 – max 11 m
16 m

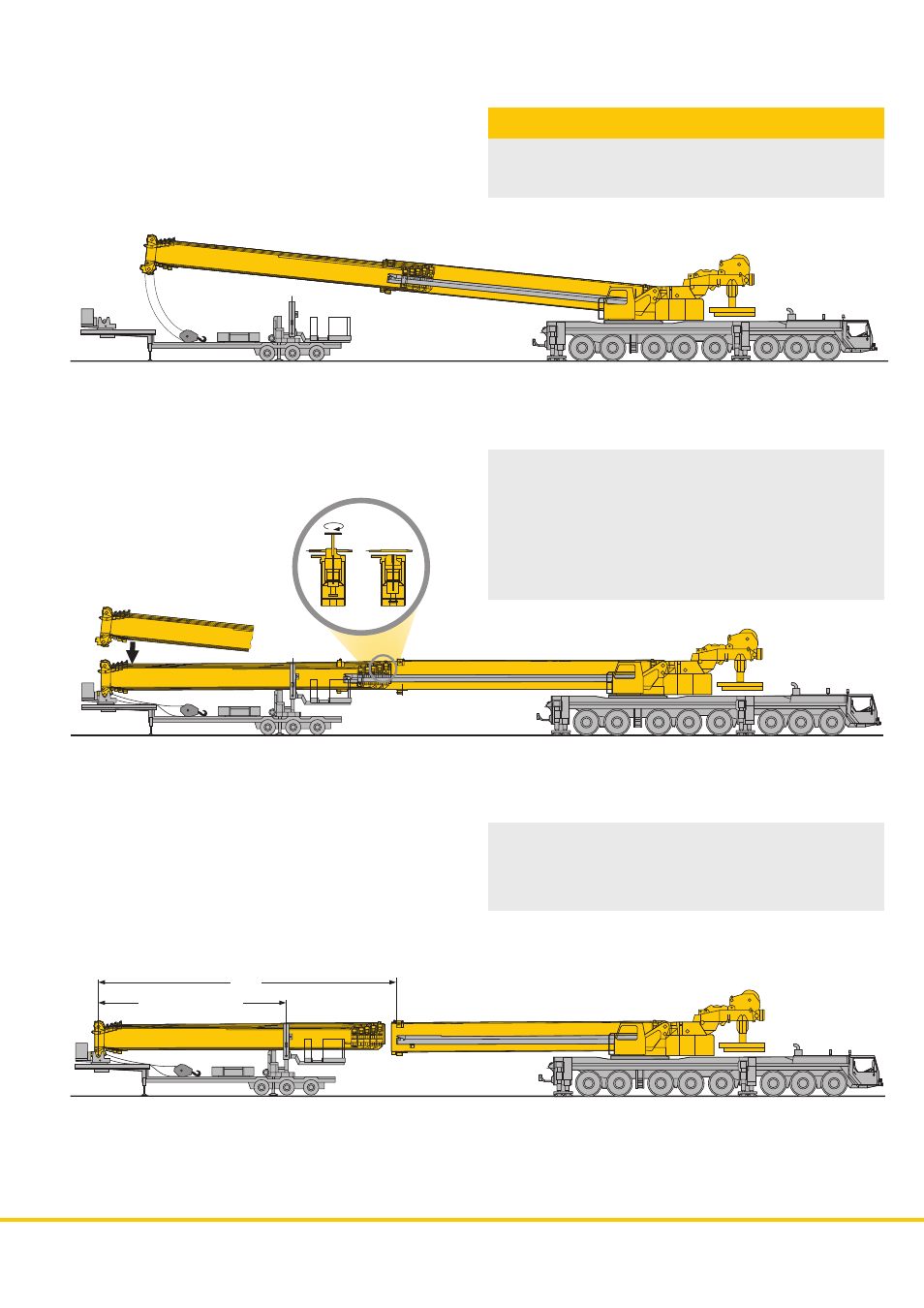

Extend telescopes 2 or 3 to 100 %.
Retract telescoping ram and interlock it with
telescopes 1 or 2.
Sequence
Extend telescopes 1 or 2 until the interlocking pin is accessible.
Put the boom head slightly on the low loader and dismantle
the upper slide blocks of telescope 1 or 2. Lower the telescopic
boom slightly in order to dismantle the lower slide pads. Remove
the slide pads from telescope 1 or 2. Release the interlock
between telescope 1 and 2 or 2 and 3 respectively by means
of the emergency release screw. Extend the supporting frame
of the low loader and raise telescopic sections 2 – 6 or 3 – 6
respectively.
Retract telescope 1 or 2 and lower the boom on to the low
loader.
Lock the boom to the supporting frame by the lateral pressure
plates. Lock the boom head in the supporting device by the
ratchet.
