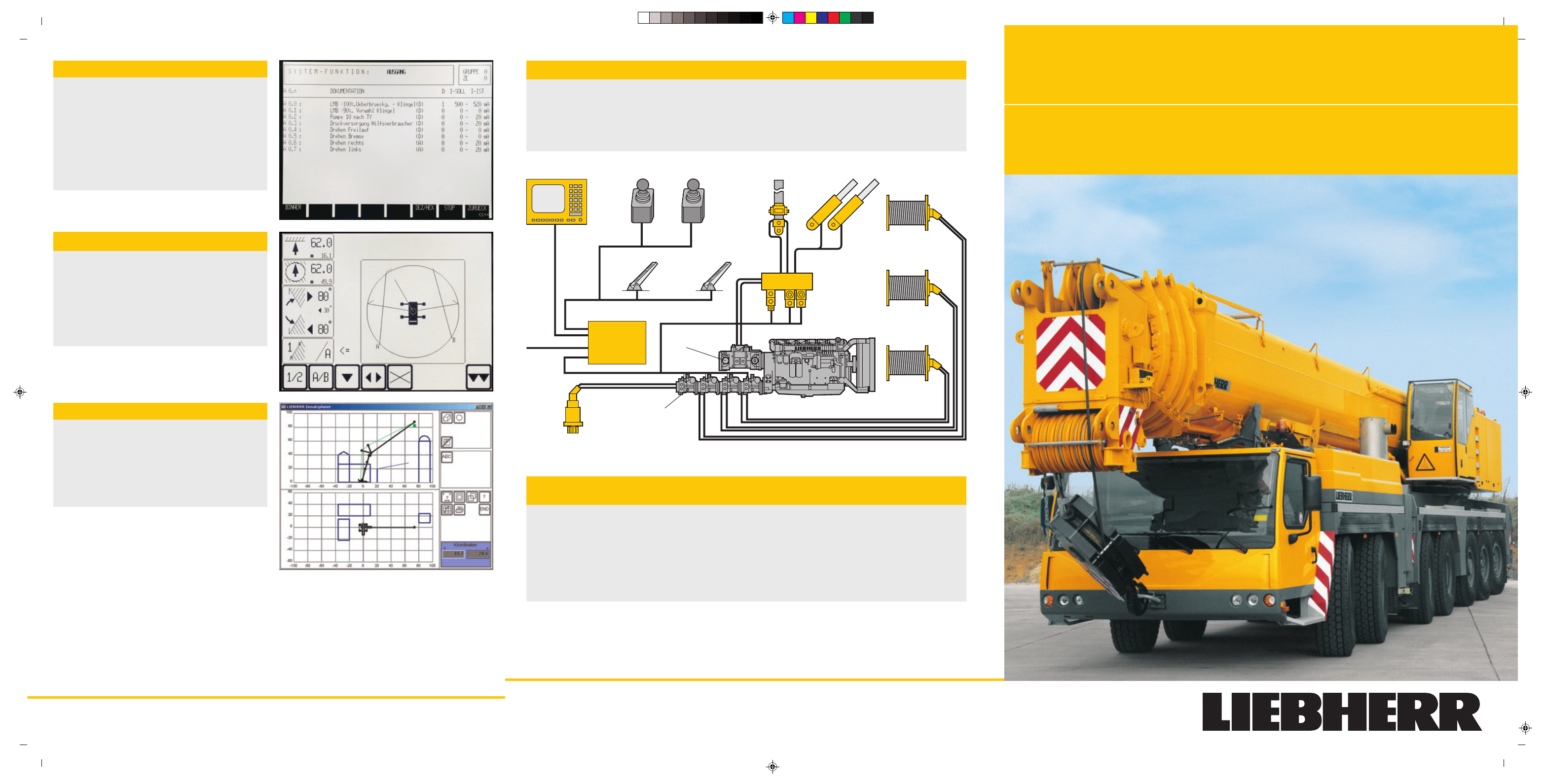

13 LTM 1400-7.1
Product advantages
mobile crane
Max. load capacity: 400 t
Max. height under hook: 130 m
Max. radius: 100 m
PN 146.02.E07.2007 Subject to technical modifications.
• The test system assists the servicing personnel in quickly
localizing errors of the crane‘s sensory system without the
need of measuring instruments
• The service starts at the display screen, trouble shooting
becomes a matter of seconds
• Occurring errrors are indicated by error codes and error
descriptions on the display screen
• Convenient interactive functions permit the observation of
all in and outputs of the general system by different
representations on the monitor, even during crane operation.
It also visualizes the allocation of the individual sensors and
actuators to the system as well as their function on the display
screen
The LICCON test system
• The LICCON work planner consists of a software program
on CD for planning, simulation and documentation of crane
applications on the display screen (optional)
• The 2-D planner program permits the drawing of buildings,
to write texts and to represent a crane model true to scale
including its entire working motions within a fictional
construction site
• The work planner enables the preparation of more transparent
offers, it facilitates the briefing of the crane operators and
can be run on a laptop at the construction site
The LICCON work planner
• It relieves the crane operator, especially in situations where
the handling of loads requires his full attention, by controlling
the work area limits. Work areas can be restricted by buildings,
bridges, roofs, high-tension power lines, pipe lines or adjacent
cranes. The automatic work area limitation (optional) can
easily be programmed. Four different limitation functions are
practicable:
• Height limitation of the pulley head
• Radius limitation
• Slewing angle limitation
• Limitation of edges
The LICCON work area limitation
• Control of the winches, the slewing gear as well as the luffing
and telescoping motions by the LICCON system (PLC control)
• Four working motions can be performed independent from
one another
• Hoisting/lowering and luffing speeds are preselectable by
5 steps
• The luffing speed is controlled automatically in relation to the
the boom length
Electric/electronic crane control with integrated safe load indicator
• Very short response rates at the activation of crane motions
• Joystick selectors with vibrating motion detectors
• Slewing motion continuously controllable from
0 – 1,5 min-1, additionally 6 steps between 10 % and
100 % preselectable by the LICCON control
• Electrohydraulic interlocking system of the superstructure
over front and over rear
On the carrier
• Eddy-current brake
• Outrigger control
• Rope box
• Air-conditioning system
• Radio preparation
• Seat heating for driver’s and co-drivers seat
• 3rd seat
• Maneuvering coupling
• Fog lamps
• CD radio set
Optional features contribute to an expansion of the application spectrum
and increase comfort and safety
On the crane superstructure
• Air-conditioning system
• Seat heating
• Video control of the winches
• Work area limitation program
• Working projector Xenon on the telescopic boom base section
• GSM module for tele diagnostic
• CD radio set
Further optional features by request
LICCON
monitor
slewing gear
transmitters
sensors
Joystick
selectors
telescoping engine
control
1 double variable
displacement
pump
4 variable
displacement
pumps
Liebherr Diesel engine D936L A6
luffing rams
single-stage
telescoping
ram with
hydr.
interlocking
device
jib variation
winch
hoist winch I
hoist winch II
control block
LICCON control
