HS 8030 HD 9
Clamshell equipment
(Main boom No. 0808.xx)
5.9 t counterweight
J
1500
K
C
Max. capacities in metric tonnes do not exceed 66.7% of tipping load.
Capacities in duty cycle operation are for reference only and are not programmed in the LMI system.

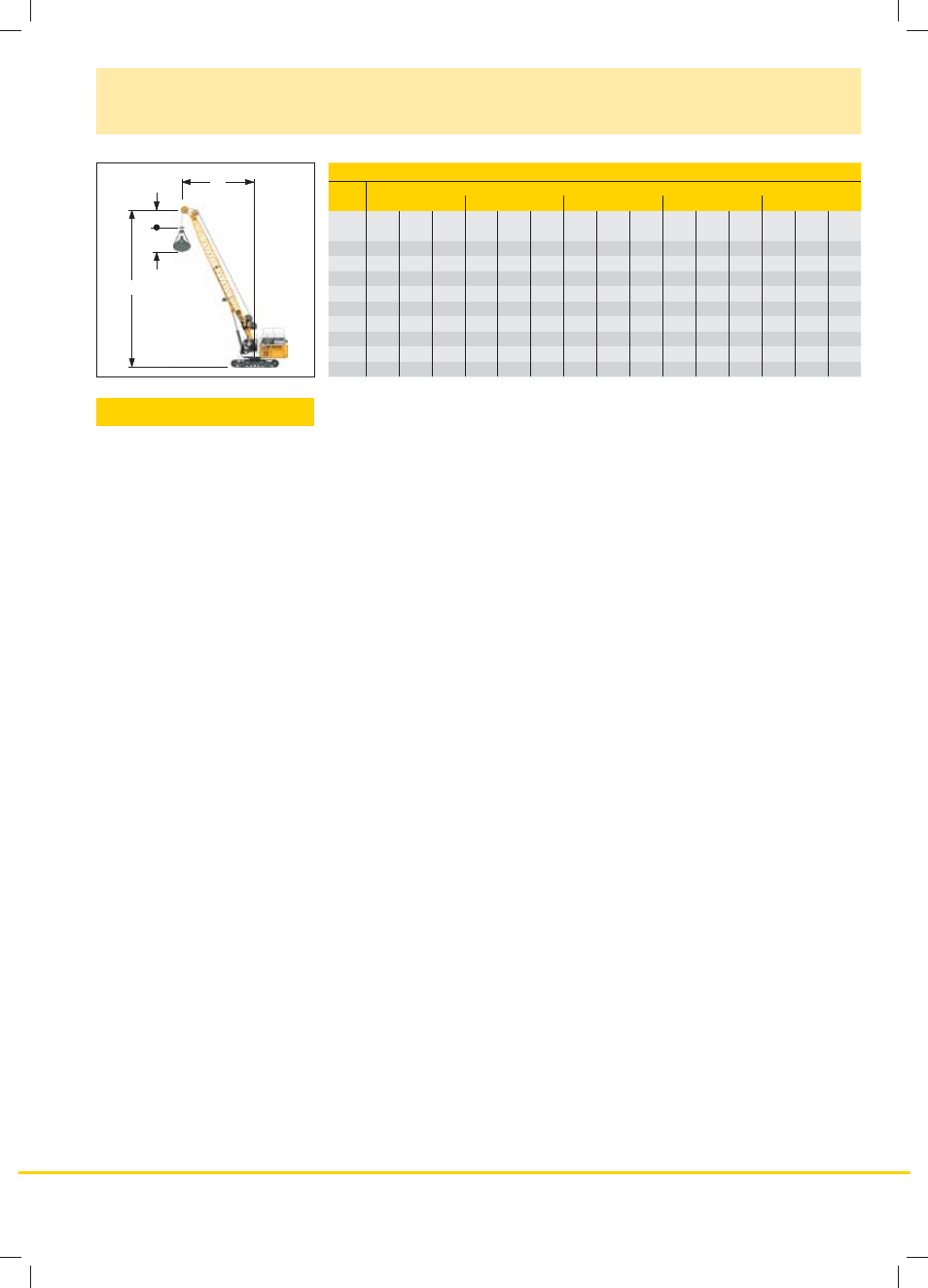

Working diagram
C = Radius / dumping radius
J = Height of boom head sheave centre
above ground level
K = Length of clamshell (according to
manufacturer‘s
specification)
Capacities in metric tonnes for boom lengths (10 m - 22 m) counterweight 5.9 t
Boom length (m)
10 13 16 19 22
alpha C J C J C J C J C J
(m) (m) (t) (m) (m) (t) (m) (m) (t) (m) (m) (t) (m) (m) (t)
65 4.4 11.0 10.5 5.7 13.8 7.4 7.0 16.5 5.7 8.2 19.2 4.4 9.5 21.9 3.4
60 5.2 10.6 8.6 6.7 13.2 6.3 8.2 15.8 4.8 9.7 18.4 3.6 11.2 21.0 2.4
55 6.0 10.2 7.5 7.7 12.6 5.4 9.4 15.1 4.1 11.1 17.5 2.6
50 6.6 9.6 6.6 8.6 11.9 4.8 10.5 14.2 3.3
45 7.3 9.1 6.0 9.4 11.2 4.3 11.5 13.3 2.2
40 7.9 8.4 5.6 10.2 10.3 3.7
35 8.4 7.7 5.2 10.9 9.4 2.8
30 8.9 7.0 4.9 11.5 8.5 2.2
25 9.3 6.2 4.6
