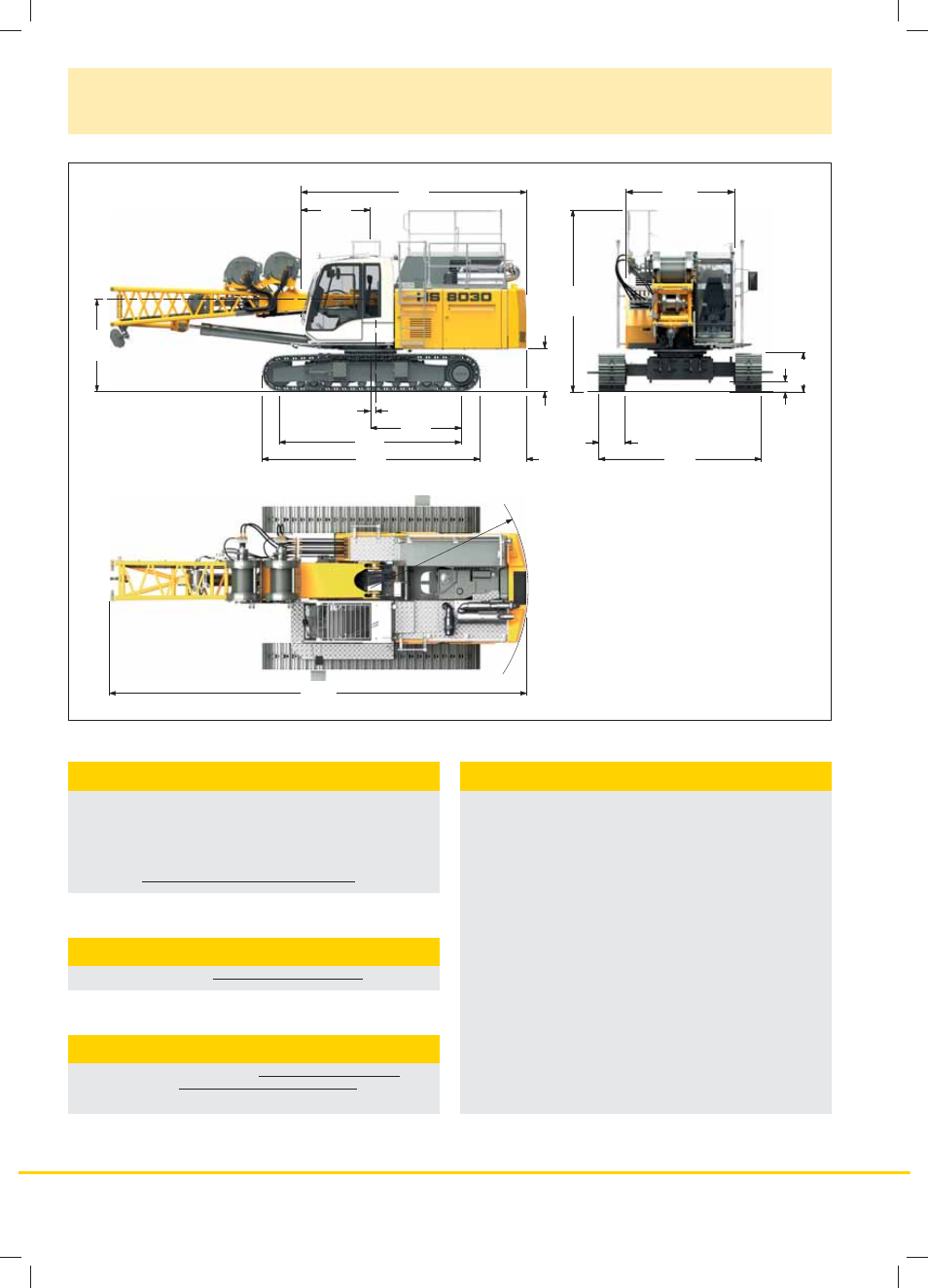

Dimensions
Basic machine with undercarriage
5000
4140
2070
110
1060
1590
5150
2110
970
R 3560
9500
4150
600
3700
250
890
2480
Operating weight
The operating weight includes the basic machine with telescopic
undercarriage, 2 main winches 100 kN each, including wire ropes
(1x 90 m / 1x 70 m) and 10 m main boom, consisting of boom foot
(6.0 m), boom head (3.5 m) and hinged section (0.5 m), 5.9 t basic
counterweight, 600 mm 3-web grousers and 30 t hook block.
Total weight
approx. 34.7 t
Ground pressure
Ground bearing pressure 0.69 kg/cm 2
Equipment
Main boom (No. 0808.xx) max. length 22 m
Fixed jib (No. 0403.xx) upon request
Modular designed equipment for crane or clamshell operation.
Remarks
1. The lifting capacities stated are valid for lifting operation only
(corresponding with crane classification according to F.E.M.
1.001, crane group A1).
2. Crane standing on firm, horizontal ground.
3. The weight of the lifting device (hoist ropes, hook block,
shackle etc.) must be deducted from the gross lifting capacity
to obtain a net lifting value.
4. Additional equipment on boom (e.g. boom walkways, auxiliary
jib) must be deducted to get the net lifting capacity.
5. For max. wind speed please refer to lift chart in operator‘s cab
or manual.
6. Working radii are measured from center of swing and under
load.
7. The lifting capacities are valid for 360 degrees of swing.
8. Calculation of stability under load is based on ISO 4305
Table 1 + 2, tipping angle 4°.
9. The structures are calculated according to F.E.M. 1.001 - 1998
(EN 13001-2 / 2004).
