HS 8030 HD 3

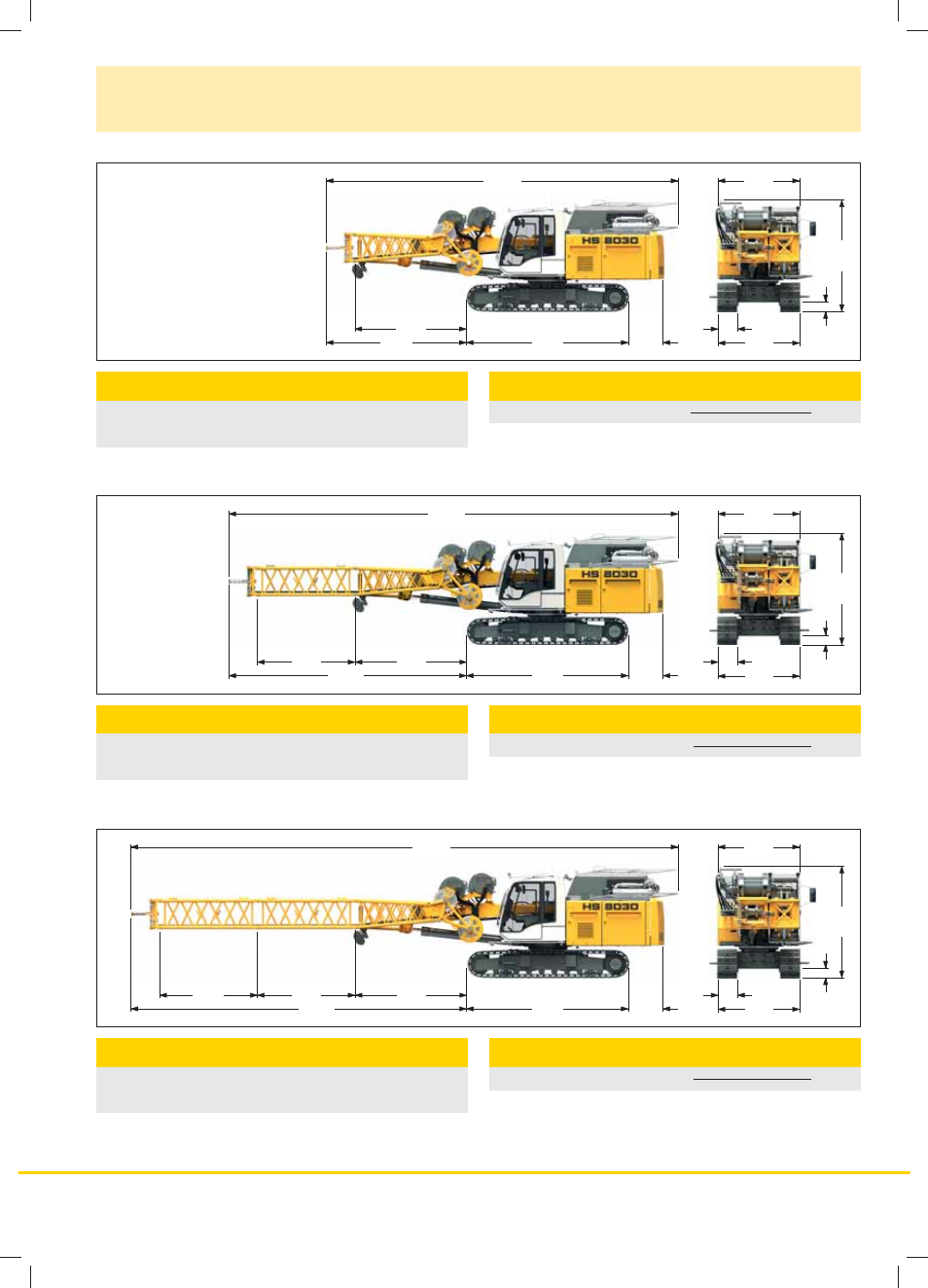

Transport dimensions and weights
Basic machine and boom
(No. 0808.xx)
Dimensions and weights
Weight complete with counterweight 36.3 t
10300 5000 1060
600
2500
2480
250
3410
16825
3420 3000 3000
4300 5000 1060
600
2500
2480
250
3410
10825
3420
Transport
- with 10 m main boom
includes the basic machine (ready for operation) with boom foot
(6 m), boom head (3.5 m), hinged section (0.5 m), hook block (30 t)
and counterweight (5.9 t).
Transport
- with 16 m main boom
includes the basic machine (ready for operation) with boom foot
(6 m), boom head (3.5 m), hinged section (0.5 m), 2x boom section
(3 m), hook block (30 t) and counterweight (5.9 t).
Transport
- with 22 m main boom
includes the basic machine (ready for operation) with boom foot
(6 m), boom head (3.5 m), hinged section (0.5 m), 4x boom section
(3 m), hook block (30 t) and counterweight (5.9 t).
Dimensions and weights
Weight complete with counterweight 34.7 t
Dimensions and weights
Weight complete with counterweight 35.5 t
10000 5000 1060
600
2500
2480
250
3410
13825
3420 3000
