Using the Web-Based Advanced User Interface
se
ct
io
n
1
9
2
3
4
5
6
7
8
10
5.
From a computer already connected to your Router, access the
Advanced Setup Utility by opening your browser. In the address
bar, type in “192.168.2.1”. Do not type in “www” or “http://”
before the number.
Note:
If you have changed your Router’s IP
address, use that IP address.
6.
You will see the Router’s user interface in the browser window.
Click “Wireless Bridge”
(2)
on the left-hand side of the screen.

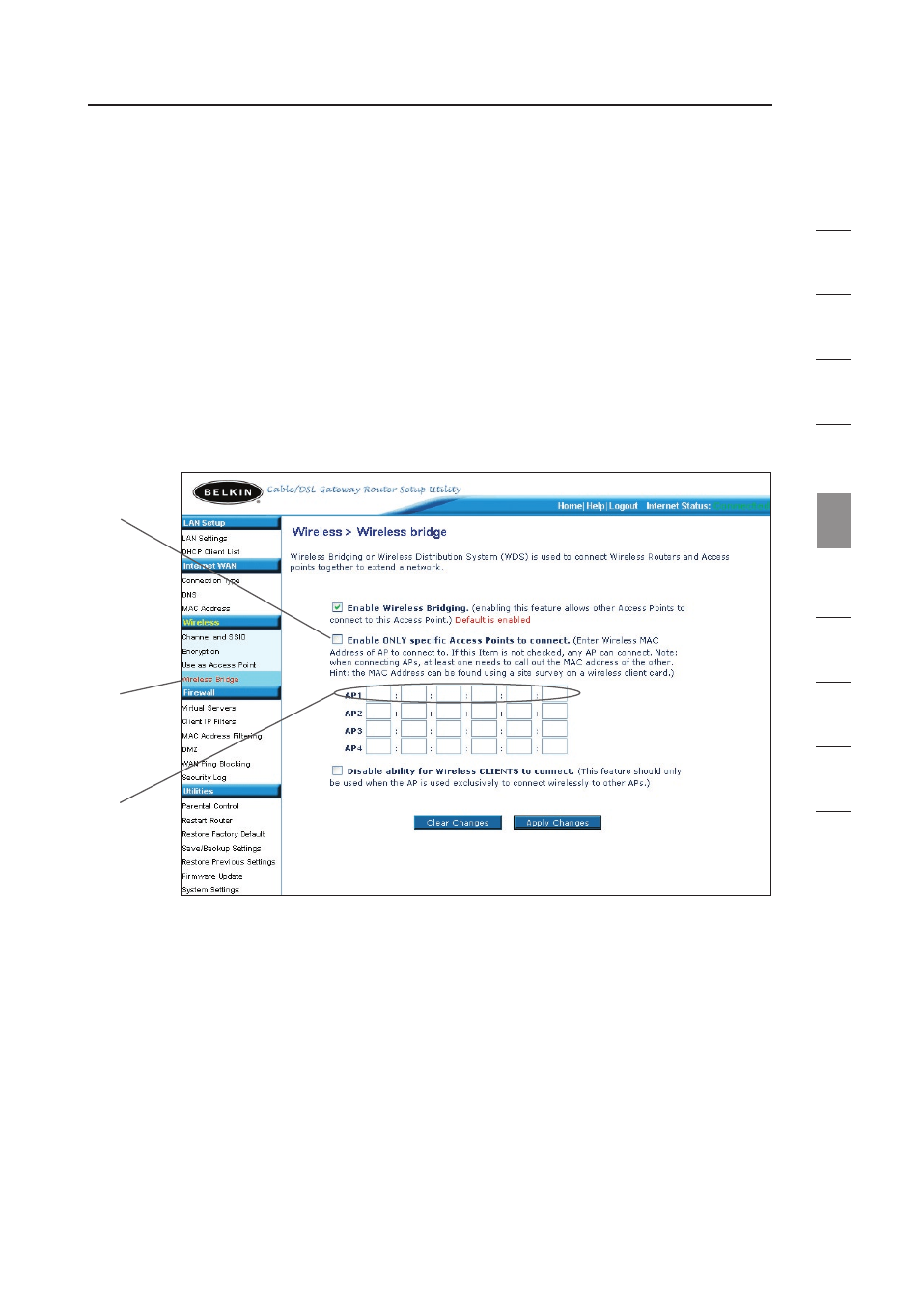

You will see the following screen.
(1)
(2)
(3)
7.
Check the box that says “Enable ONLY specific Access Points
to connect”
(1)
.
8.
In the fields named “AP1”
(3)
, type in the MAC address of your
secondary Access Point. When you have typed in the address,
click “Apply Changes”.
9.
Bridging is now set up.
