Bryant COMMERCIAL AIR COOLED CONDENSING UNITS 576b User Manual
Page 14
Copyright 2000 Bryant Heating & Cooling Systems
801
CATALOG NO. 5356-903
LEGEND FOR FIG. 15 AND 16
C
— Contactor, Compressor
CAP
— Capacitor
CB
— Circuit Breaker
CH
— Crankcase Heater
CLO
— Compressor Lockout
COMP — Compressor Motor
COTP — Compressor Temperature Protection
EQUIP — Equipment
GND
— Ground
HPS
— High-Pressure Switch
LPS
— Low-Pressure Switch
NEC — National Electrical Code
OFC — Outdoor (Condenser) Fan Contactor
OFM — Outdoor (Condenser) Fan Motor
OL
— Overload Relay
QT
— Quadruple Terminal
TB
— Terminal Block
TDR — Time-Delay Relay
TRAN — Transformer
Terminal (Marked)
Terminal (Unmarked)
Terminal Block
Factory Wiring
Field Power Wiring

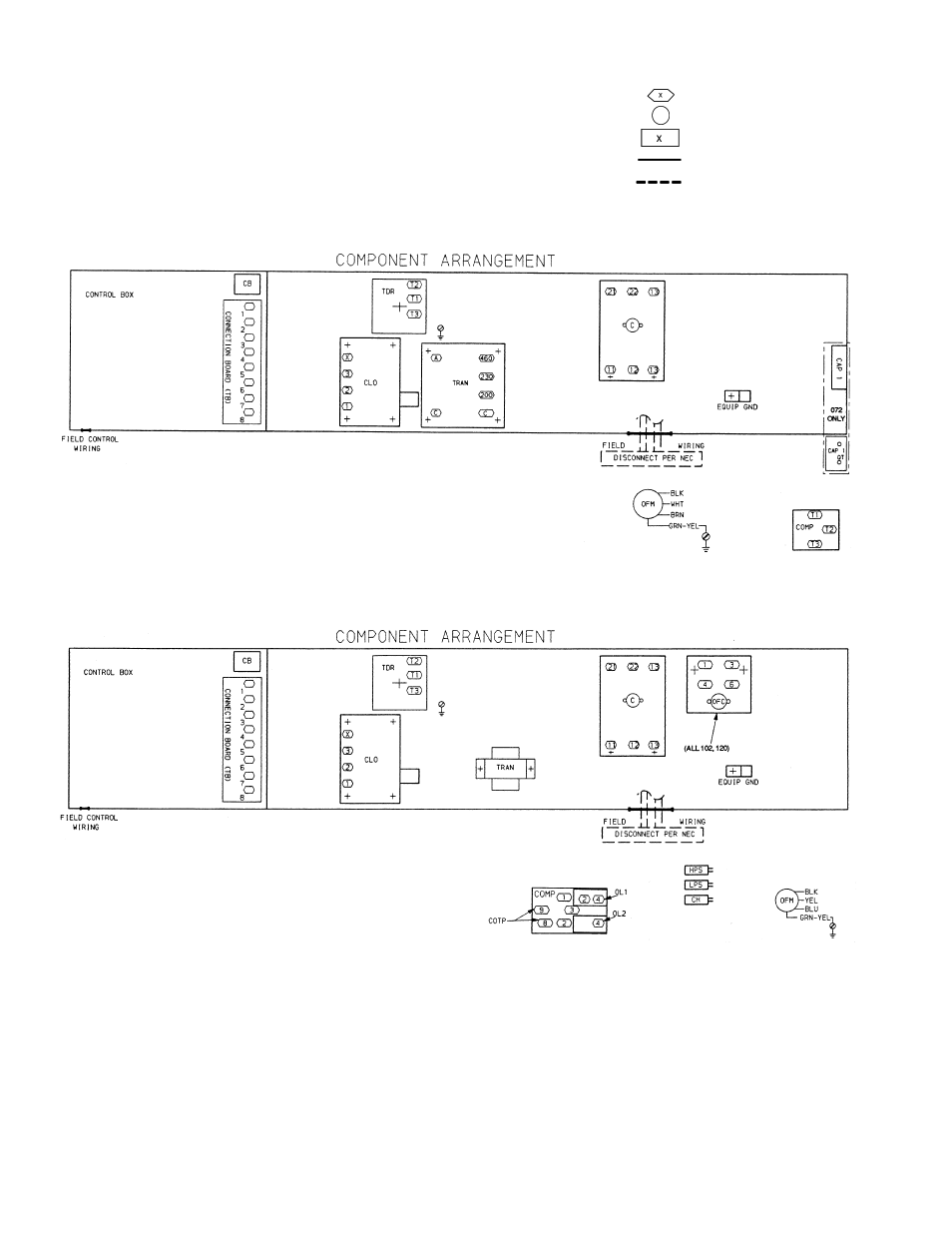

Fig. 15 — Typical 569C Component Arrangement
Fig. 16 — Typical 576B Component Arrangement
→
→
→
