Label/Tag Media Specifications

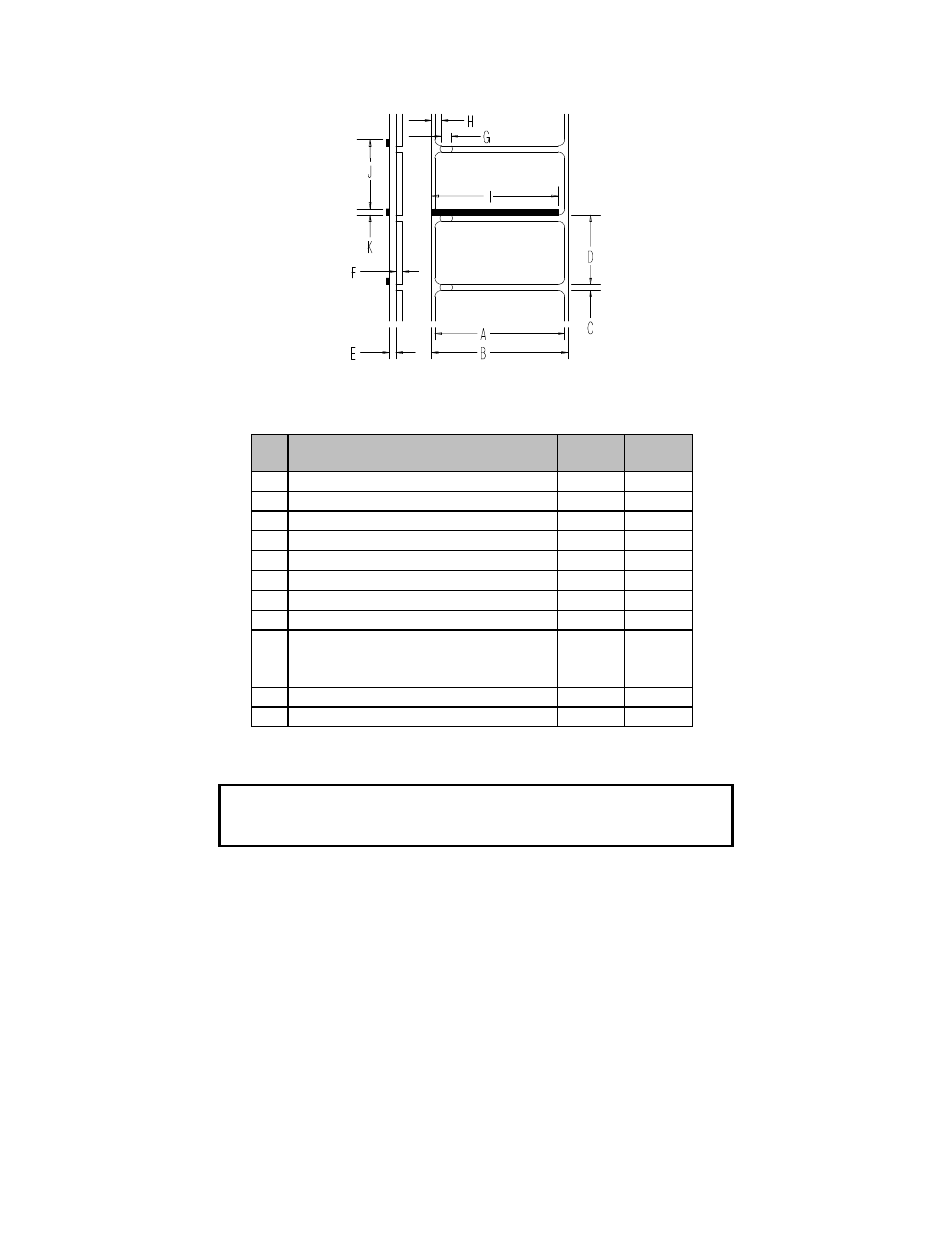

Figure 1-3 Media Dimensions
Description
MAX.
(inches)
MIN.
(inches)
A
Label width
4.650
0.750
B
Backing width
4.650
0.750
C
Gap between labels
99.99
0.100
D
Label length
99.99
0.250
E
Backing thickness
0.010
0.0023
F
Label thickness
0.010
0.0025
G
Width of sensor opening
0.500
0.200
H
Distance media edge to sensor opening
2.250
0.200
I
Reflective sensor mark width. It is
recommended that the entire width of
the label is marked.
4.00
1.000
J
Distance between reflective mark
99.99
0.500
K
Reflective sensor mark length
99.99
0.100
Table 1-1 Media Specifications
NOTE:
The reflective sensor mark must be carbon based. The sensor is
infrared and will reflect off of a plain black mark.
The total thickness of label and backing is .010 inches max.
