Display controller installation
Caution: Wear a grounded, protective ESD strap during
installation or handling of the display controller. Electrostatic
charges can damage the display controller.
Prior to installing your BarcoMed Nio display controller(s) in your
PC please take a few minutes to familiarize yourself with both
the display controller(s) and the PCI slots in your computer.

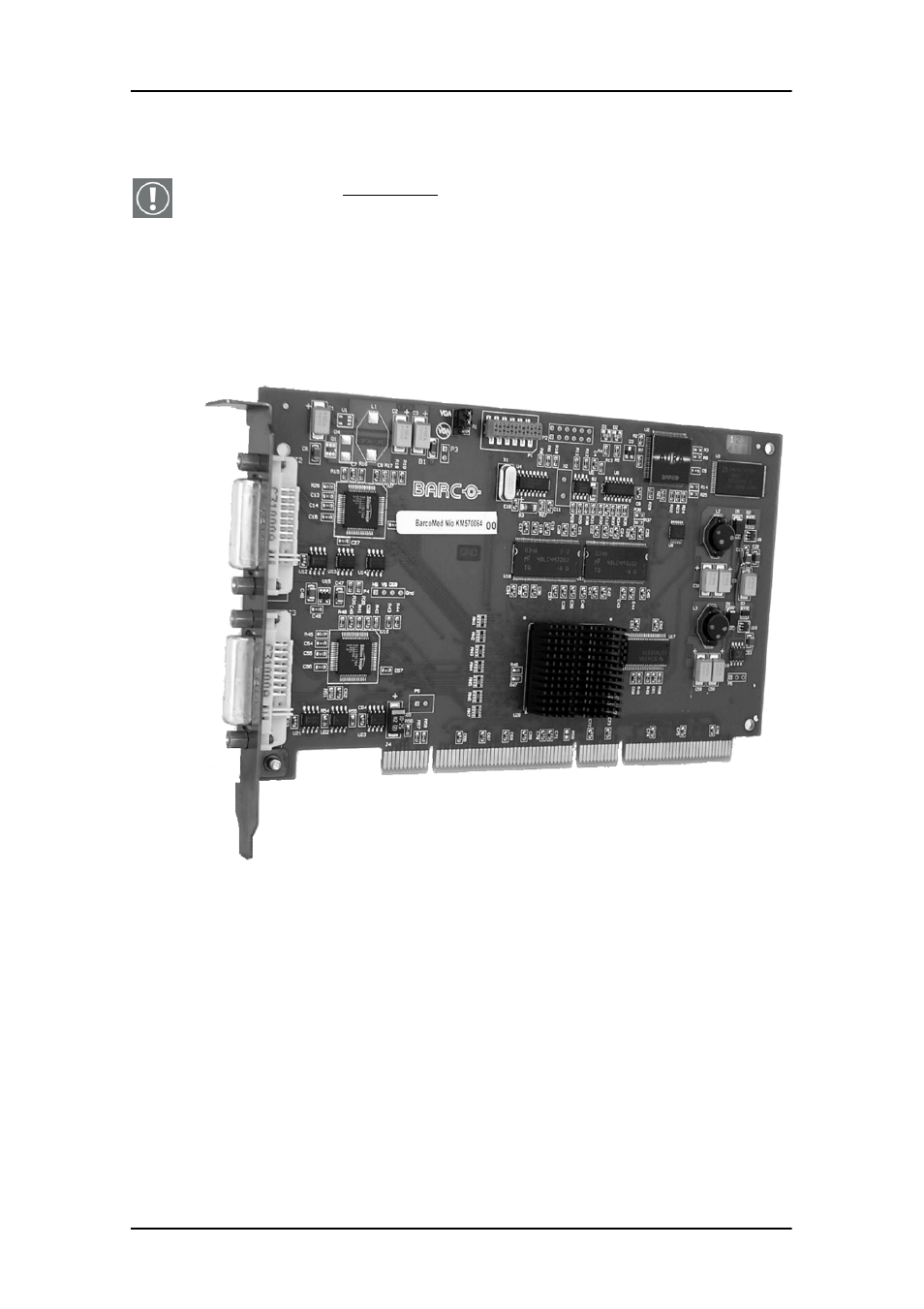

Figure 3: The BarcoMed Nio display controller
Using the VGA capabilities of the BarcoMed Nio display controller
Prior to installing the BarcoMed Nio controller, decide if you are
going to use its on-board VGA capabilities. If you are, check the
setting of the Jumper at J-1 on the display controller (see figure 4
on page 33). By default, VGA should be enabled, on the top two
pins.
