4. Getting started
SDI
SDO
S-VIDEO
VIDEO
COMPUTER
IEEE 1394
TRIG
MOUSE
MONITOR
RS232 IN
RS232 OUT
AUDIO IN
AUDIO IN
AUDIO IN
AUDIO IN
COMM. PORT
RC
C
B
A
R
G
B
H/C
V
5
6
2
1
4
3
45ш
45ш
45ш
45ш
F1
F2
F3
F4
F5
ADJ
EXIT
ENTER
PAUSE
PHASE
TEXT
SHARPN
TINT
COLOR
BRIGHTN
CONTR
TREBLE
BALANCE
BASS
VOL
9
0
7
8
5
6
3
4
1
2
F1
F2
F3
F4
F5
ADJ
EXIT
ENTER
PAUSE
PHASE
TEXT
SHARPN
TINT
COLOR
BRIGHTN
CONTR
TREBLE
BALANCE
BASS
VOL
9
0
7
8
5
6
3
4
1
2

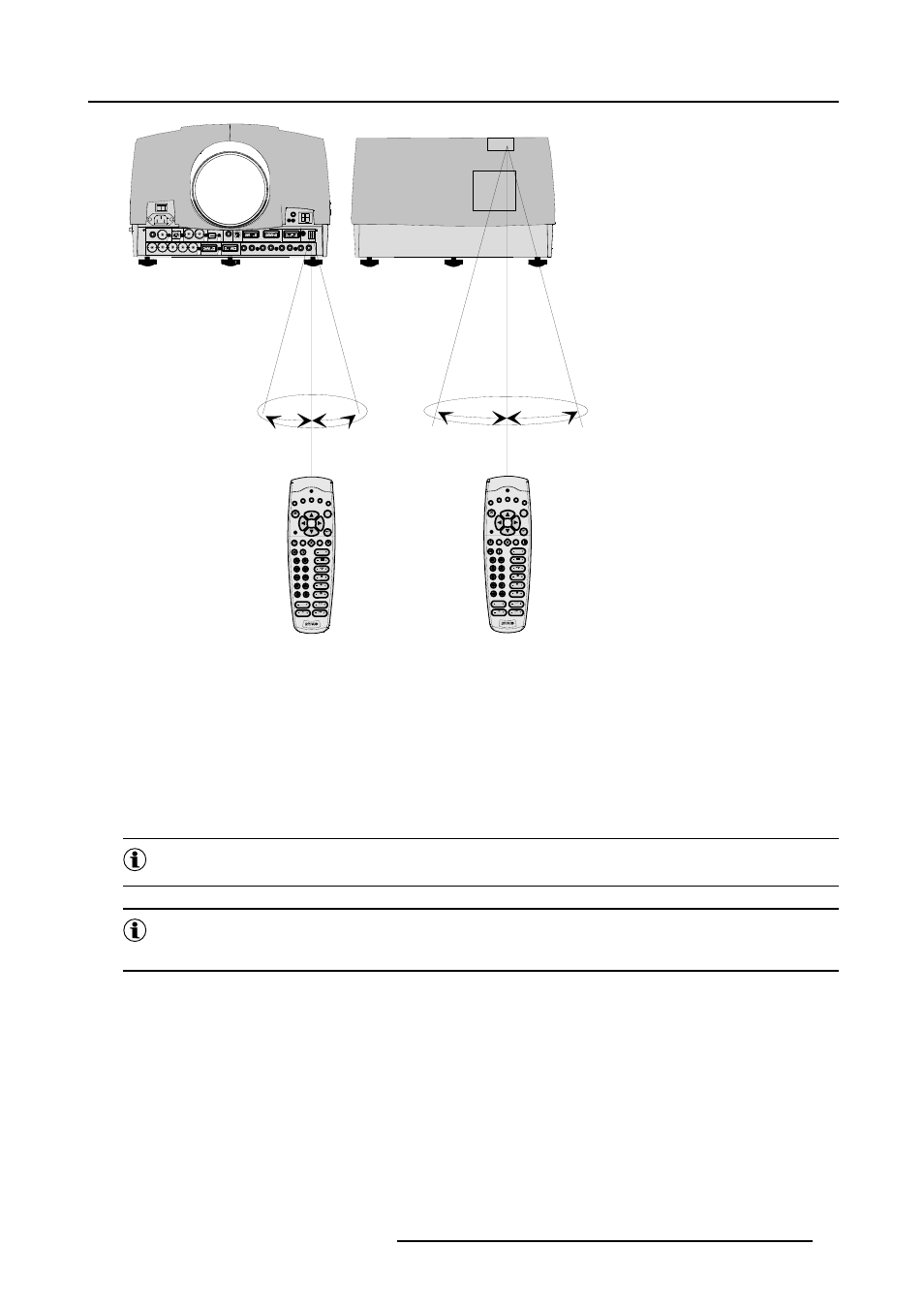

Image 4-6
4.5.3
Projector address
Overview
•
•
Displaying and Programming addresses into the RCU
4.5.3.1 Address setting
Projector address
Address installed in the projector to be individually controlled.
Common address
Default address. Projector will always execute the command coming from a RCU programmed with that common
address.
Why a projector address ?
As more than one projector can be installed in a room, the separate projector should be separately addressable with an RCU or
computer. Therefor each projector has its own address.
Set up an individual Projector Address.
The set up of a projector address can be done via the software. .
Projector controlling.
Every projector requires an individual address between 0 and 255 which can be set in the Installation menu.
When the address is set, the projector can be controlled by :
•
RCU for addresses between 0 and 9.
•
computer, e.g. IBM PC (or compatible), Apple MAC, etc. for addresses between 1 and 255.
R5976455 BARCO ULTRA REALITY 7000 30062003
27
