3. Connections
SDI SDO S-VIDEO VIDEO
R G B V
7
2
4 3 10Base-T
G/Y B/PB H/C V 1 HDSDI HDSDO 9
RS 232 IN RS 232 OUT
RC
DVI H/C R/PR 95

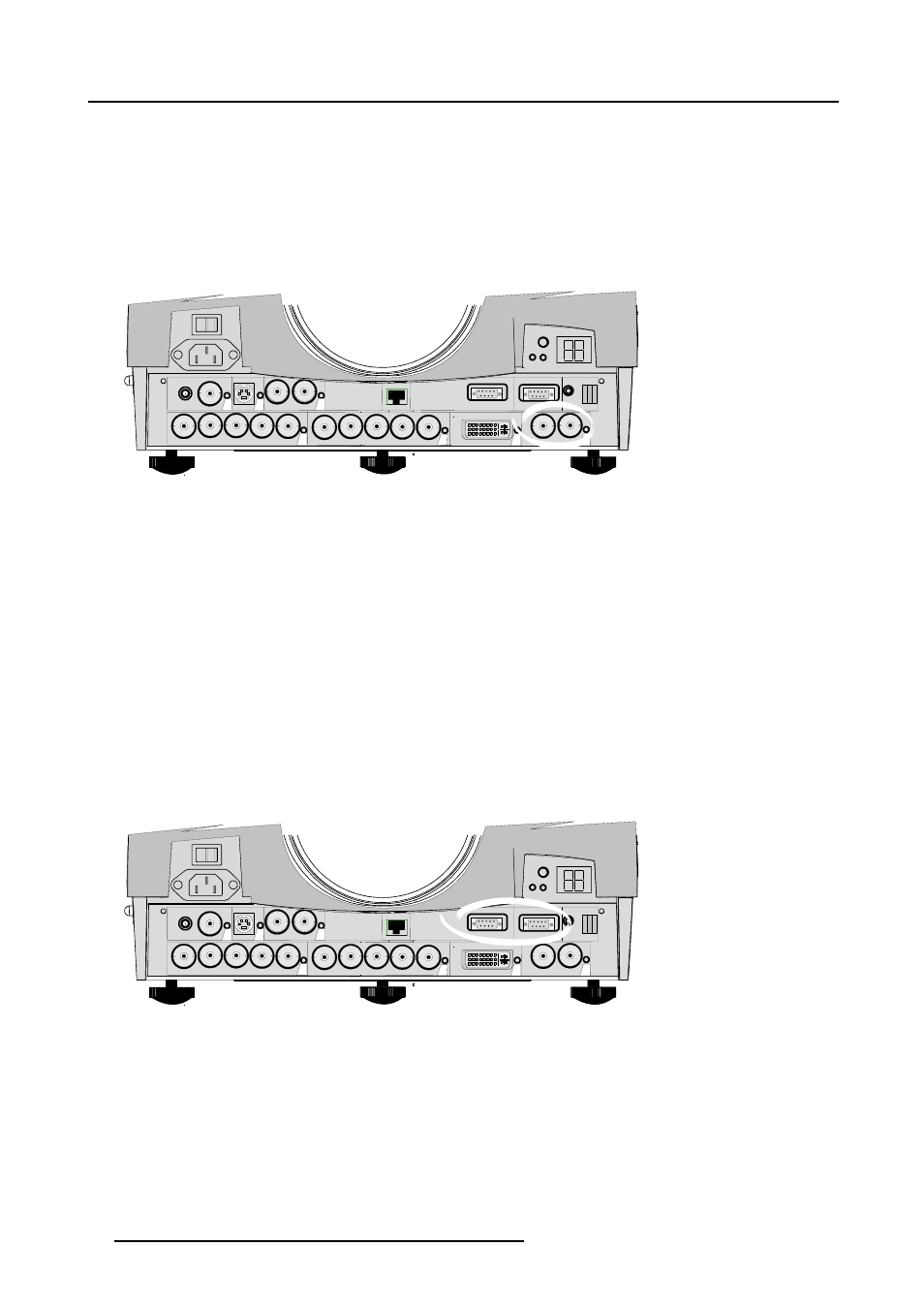

Image 3-7
3.1.9 Communications
3.1.9.1 RS232 IN connection
What can be connected to the RS232 IN connection ?
The RS 232 IN connections allows the projector to communicate with a Computer e.g. IBM PC or Apple Macintosh.
SDI SDO S-VIDEO VIDEO
R G B V
7
2
4 3 10Base-T
G/Y B/PB H/C V 1 HDSDI HDSDO 9
RS 232 IN RS 232 OUT
RC
DVI H/C R/PR 95
Image 3-8
Applications of the RS232 connection
Remote control:
• easy adjustment of projector via IBM PC (or compatible) or MAC connection.
• address range from 1 to 255
• allow storage of multiple projector configurations and set ups.
• wide range of control possibilities
Data communication: sending data to the projector or copying the data from the projector to the computer
18 R5976455 BARCO ULTRA REALITY 7000 30062003
