Connecting the power cables
1
Connect the supplied external DC power supply to the +24 VDC
power input of your C
ORONIS
F
USION
4MP/6MP display.
2
Plug the other end of the external DC power supply into a
grounded power outlet by means of the proper power cord
delivered in the packaging.
Routing the cables

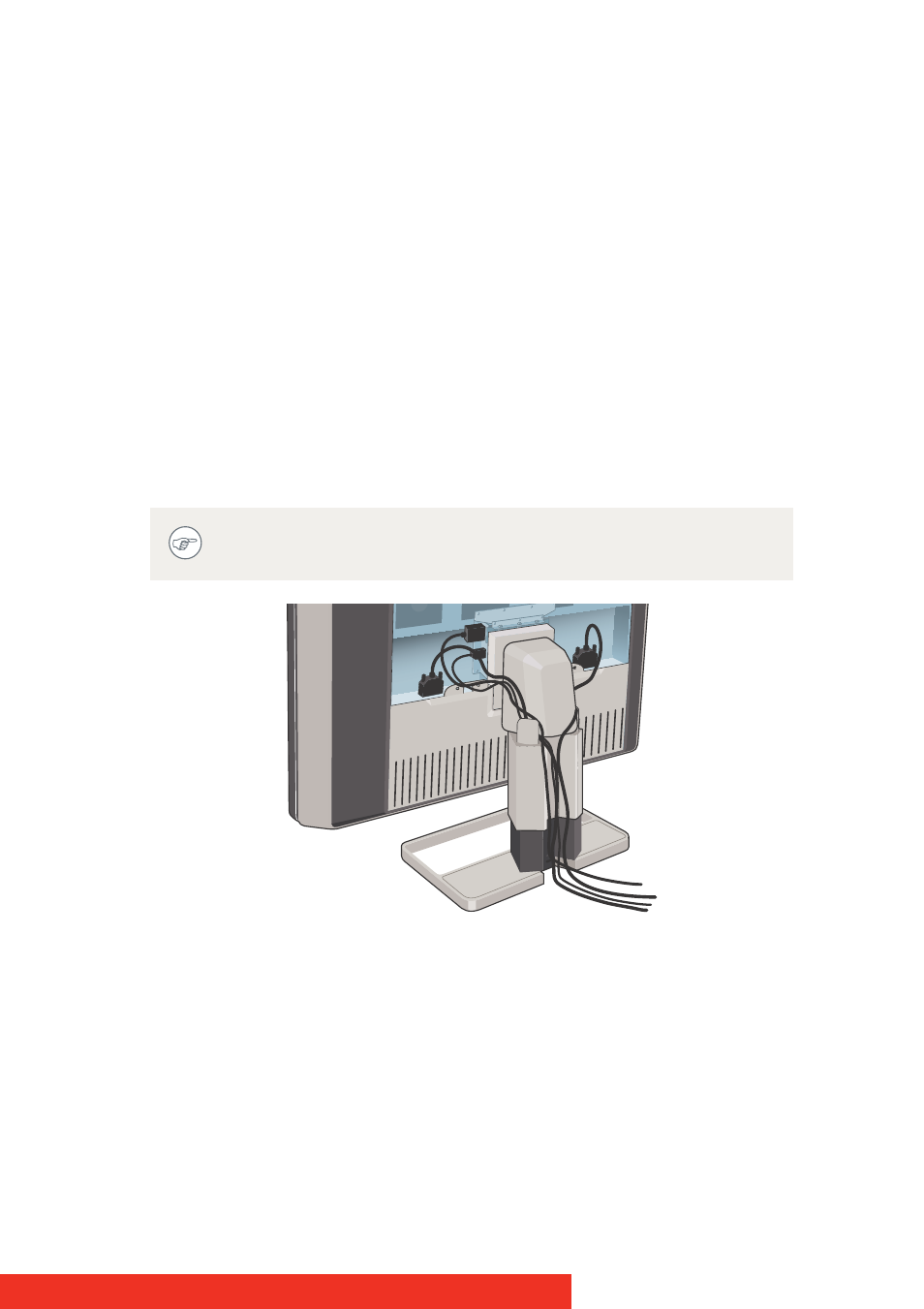

Route all connected cables trough the cable routing channel in the stand
of your display.
The cable straps at the inside of the connector compartment
allow you to fix the cables for better shielding of the cables.
