Display installation, Removing the covers – Barco CORONIS FUSION 4MP/6MP User Manual
Page 12
12
Coronis Fusion 4MP/6MP
Display installation
Removing the covers
C
ONNECTOR
COMPARTMENT
COVER

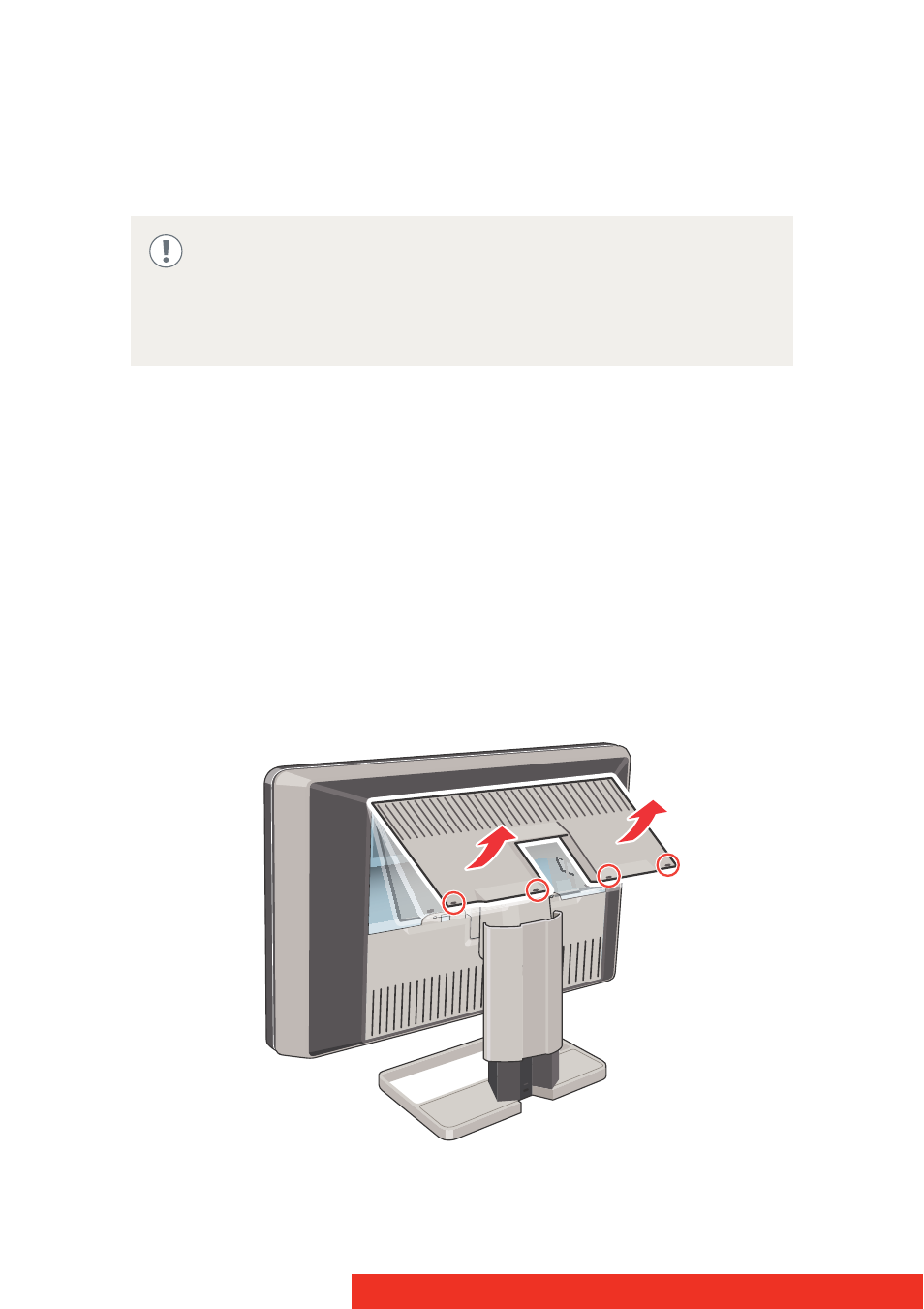

The connector compartment cover should be removed to get access to
the connectors. To remove the cover, proceed as follows:
1
Gently lift the clips at one of the handles of the connector
compartment cover to release that side of the cover.
2
Do the same at the other side of the cover.
3
Remove the cover.
Prior to installing your C
ORONIS
F
USION
4MP/6MP display and
connecting all necessary cables, make sure to have a suitable
display controller physically installed in your computer. If you are
using a Barco display controller, please consult the dedicated user
guide available on the system CD.
