Connecting speakers 9, Connecting speakers, Connecting your equipment – Pioneer VSX-D510 User Manual
Page 9

9
En

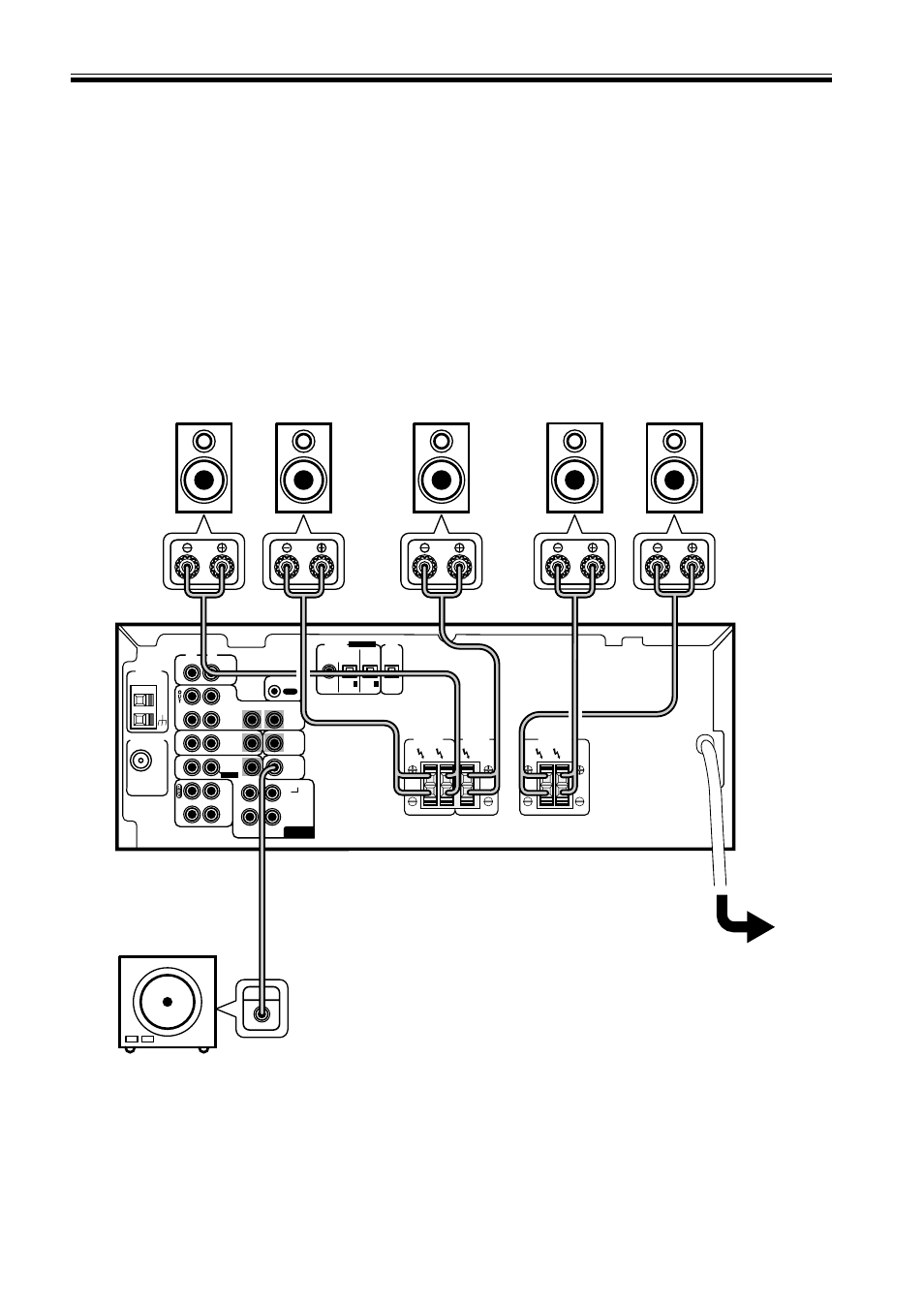

Connecting Speakers
A full complement of six speakers is shown here but, naturally, everyone’s home setup will vary. Simply connect the
speakers you have in the manner described below. The receiver will work with just two stereo speakers (called “front”
speakers in the diagram) but using at least three speakers is recommended, and all five is best.
Make sure you connect the speaker on the right to the right terminal and the speaker on the left to the left terminal.
Also make sure the positive and negative (+/–) terminals on the receiver match those on the speakers.
MEMO:
• Use speakers with a nominal impedance of 8
Ω to 16 Ω.
Connecting Your Equipment
L
R
L
R
R
L
SURROUND
SPEAKERS
CENTER
SPEAKER
L
R
FRONT
SPEAKERS
TO
MONTOR
TV
VCR /
DVR
CONTROL
CD
IN
IN
IN
OUT
OUT
FRONT
CD - R
/ TAPE
/ MD
SURROUND
CENTER
SUB
WOOFER
SUB
WOOFER
PREOUT
IN
IN
IN
IN
IN
TV /
SAT
DVD
/ LD
COAX
OPT
OPT
OPT
(DVD)
(CD)
(CD-R)
P
L
A
Y
OUT
FM
UNBAL
75
Ω
AM LOOP
ANTENNA
FM ANTENNA
DVD 5.1 CH
INPUT
DIGITAL IN
PCM / 2 / DTS
ASSIGNABLE
1
2
DIGITAL
OUT
INPUT
Be sure to complete all other
connections before connecting this
unit to the AC power source.
Front Speakers
Center Speaker
SURROUND Speakers
Powered sub woofer
L
R
C
SR
SL
